2.3.1 BOTTOM: Power Terminal
BOTTOM is what provides ESU unit with its DC 24V power terminal. When power is going through, the green LED light up. Before sending power, please make sure whether the power positive and negative pole is correctly, otherwise it would cause the ESU to be damaged.
Pin |
24V |
24G |
F.G |
n/c |
Explain |
ESU power unit +24V input |
ESU unit power ground connection input |
Machine shell ground connect input |
Empty connection |

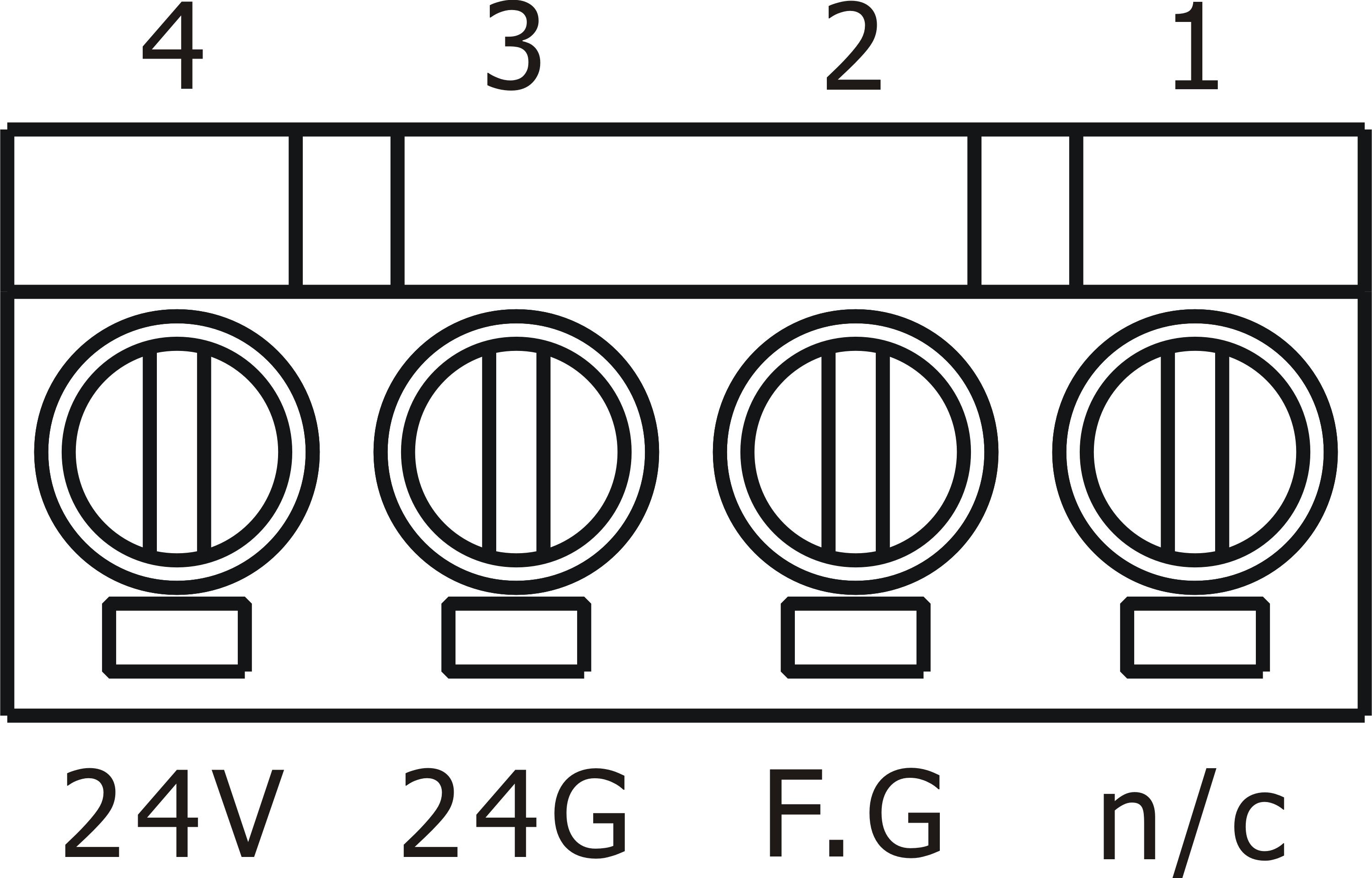

BOTTOM Power Terminal

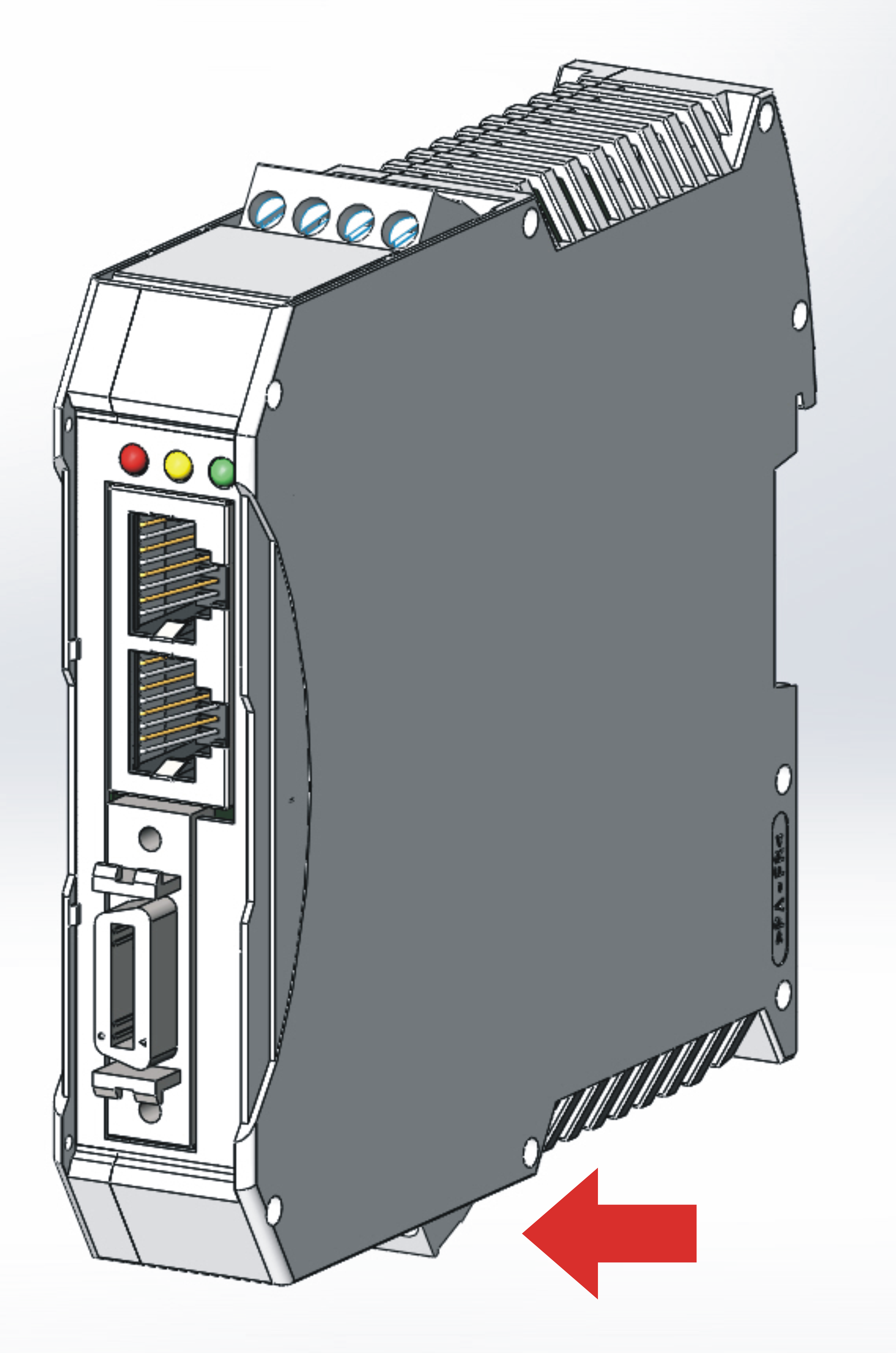

BOTTOM Placement Drawing
