2.8.1.1.1 Power Terminal
Power terminal provide touch screen DC 24V with power, when connecting power, please use the same power supplier with the ECU. When sending power, please first check voltage and pole is corrected.
Pin |
24V |
24G |
F.G |
Explain |
DC 24V power positive pole "+" input |
DC 24V power negative pole "-" input |
Ground protection through ground screw cable to electrical box, to copper plate |
Power Terminal

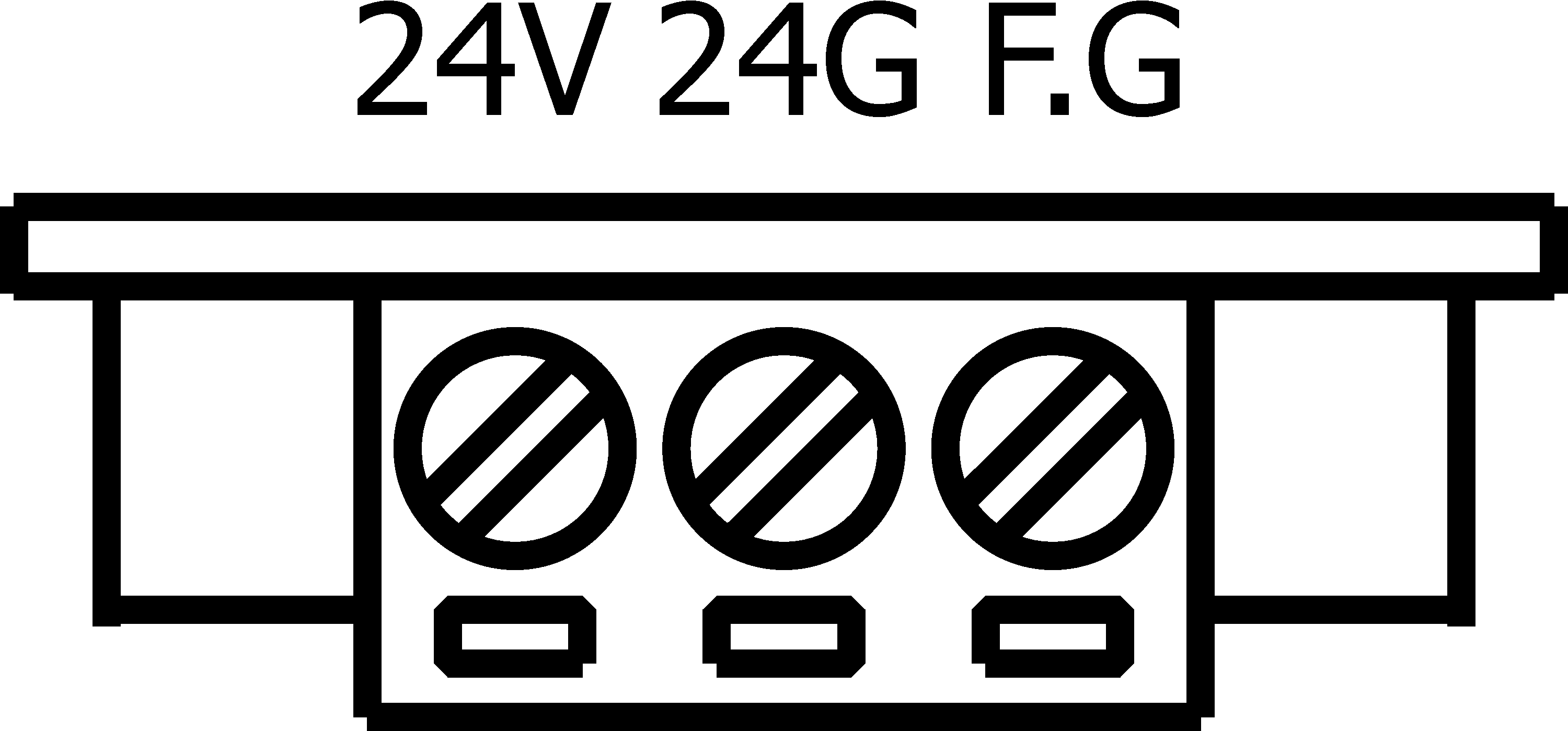

Power Terminal Placement Drawing
