2.8.1.2 Keyboard Operation Panel

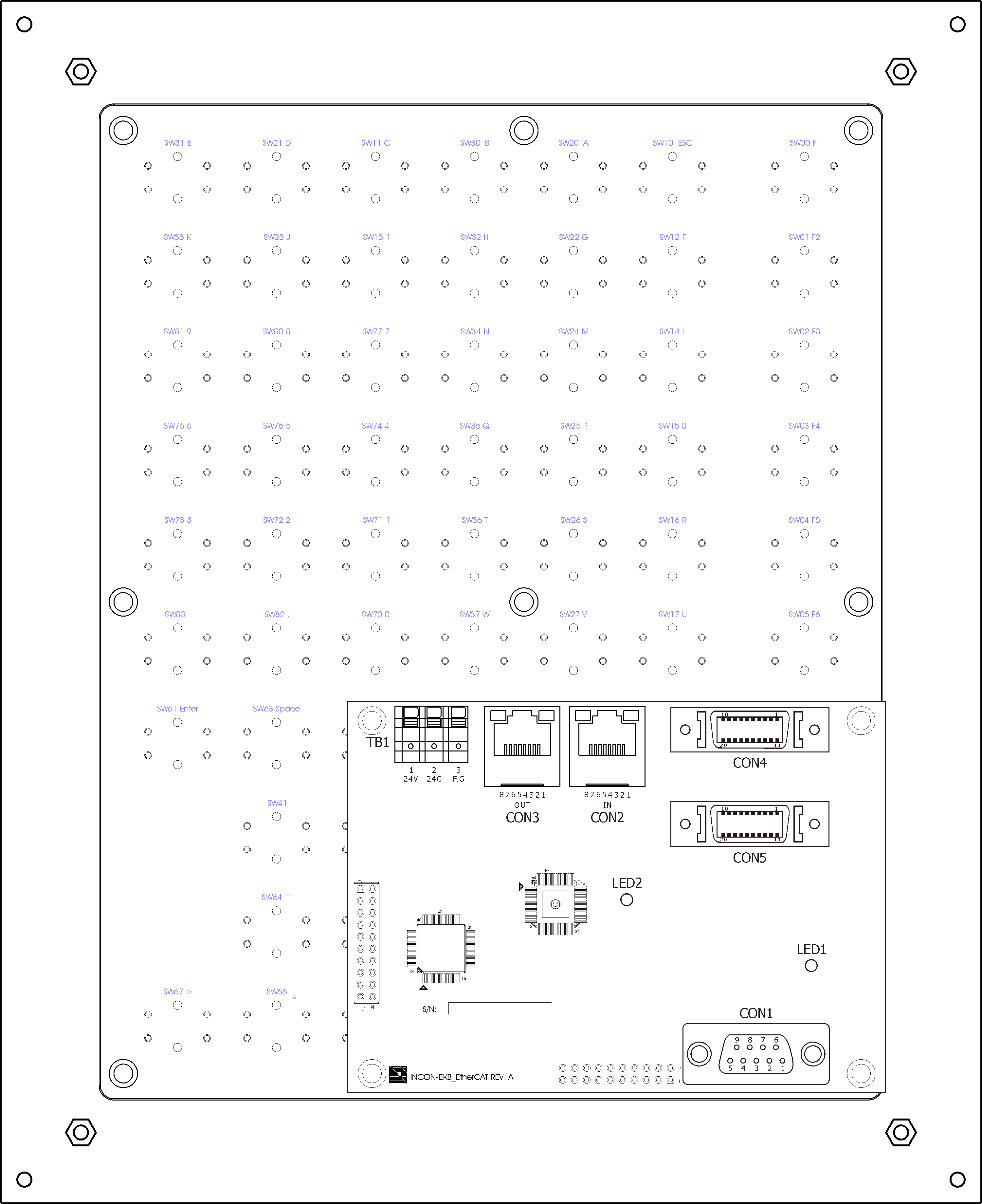

Back of Keyboard Panel
The keyboard panel of the EMI10 and EMI15 use the same unit of EKU, to connect with the CNC controller main unit and surrounding devices. The EKU is located at the back the keyboard panel, explaining of each connector is as below:
