4.1.3.1 Spindle and PLC Axis Status Display

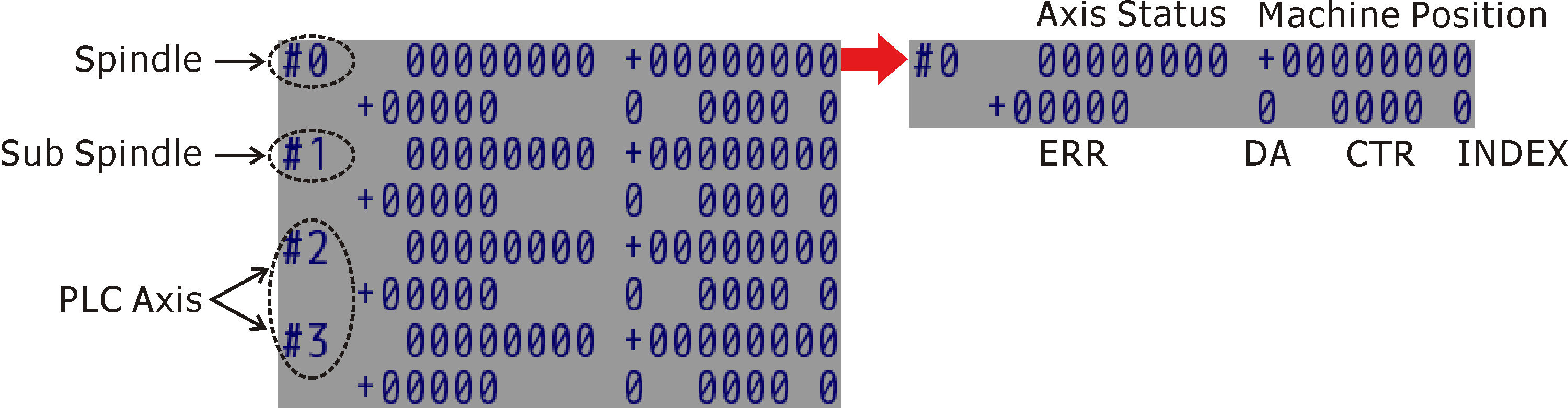

#1, #2 separately use main spindle and sub spined, #3, #4 show PLC axis status, as following:

Main Spindle and PLC Axis Status

• Axis status from left to right is: in position, servo enable, loop normal, loop not normal, Jog move positive, Jog move negative.
