2.4.1 TB1: Power Terminal
TB1 is what provides ES1U unit with its DC 24V power terminal. When power is going through, the red LED7 light up. Before sending power, please make sure whether the power positive and negative pole is correctly, otherwise it would cause the ES1U to be damaged.
Pin |
24V |
24G |
F.G |
Explain |
ES1U power unit +24V input |
ESU unit power ground connection input |
Machine shell ground connect input |

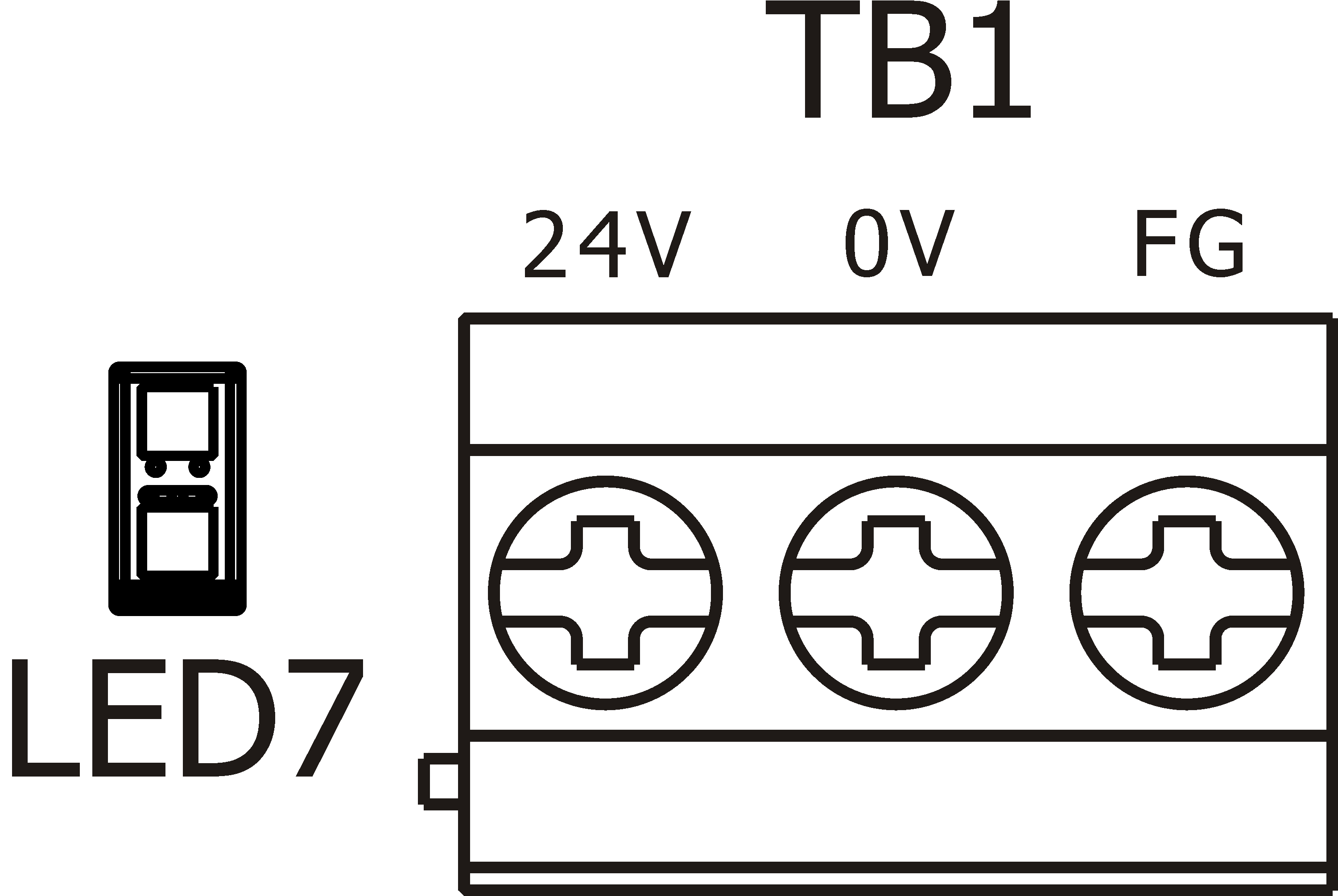

TB1 Power Terminal

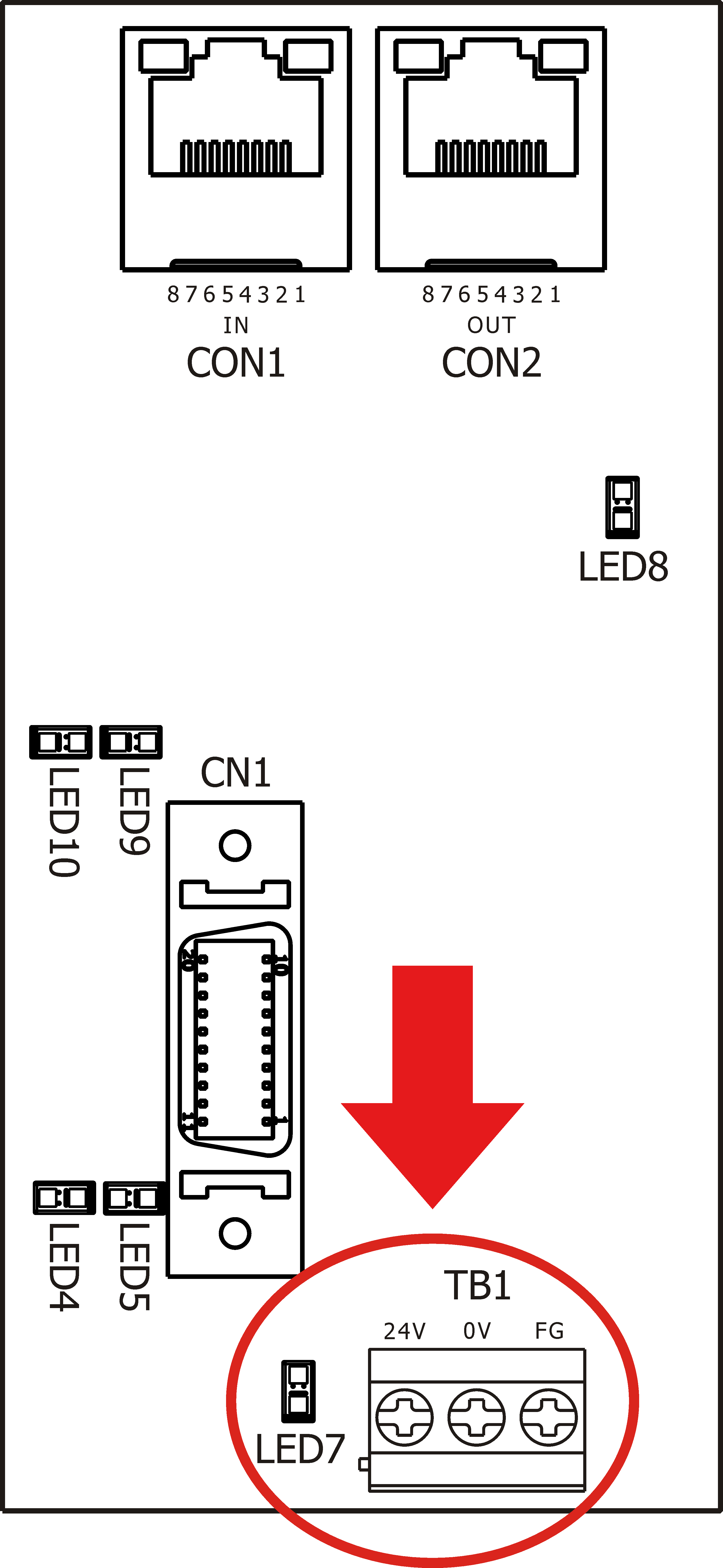

TB1 Placement Drawing
