3.6.5 About INCON-M84/INCON-M86/INCON-M86R


From "F2→Help→About INCON-M84/INCON-M86/INCON-M86R", a dialog box will appear showing the software version, product serial number, optional function code and other information of this controller.

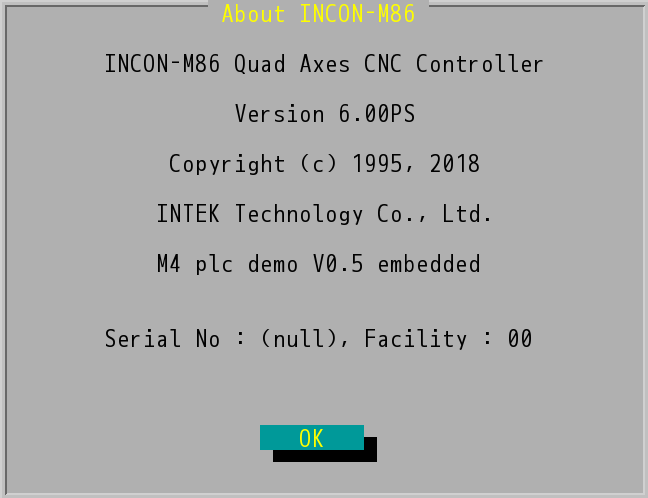

"Help→About INCON" Dialog Box (Take INCON-M86 for Example)


Note:

After completing the business formalities, the user can obtain the required optional functions (for details of optional functions, refer to INCON-M84/M86/M86R Integration Manual). INCON-M84/M86/M86R has three optional functions, as shown in the following table:

Item

Code

Function

1

1（2⁰）

Advanced high-speed high-precision function (high-speed high-precision control program)

2

4（22）

Absolute position record


If multiple optional functions are enabled at the same time, the function codes are as follows: 1, 4, 1+4→5.
