4.15.1 Example of Work Coordinate System: G54~G59


  • SAMPL54.CNC

;Please set the parameters as follows:

;Parameters → Coordinate offset

;G54 X0 Y0 Z0

;G55 X200. Y200. Z0

;G56 X400. Y100. Z0

;

G92 X0 Y0 Z0;

G90;

/M03            ;Turn on the spindle

G54 G00 Z0      ;Select the first coordinate system

M98 SUBWORK1    ;Calling subprogram

G55             ;Select the second coordinate system

M98 SUBWORK1    ;calling subprogram

G56             ;select the third coordinate system

M98 SUBWORK1    ;calling subprogram

/M05            ;close spindle

G54 G00 X0 Y0 Z0;

M30;


  • SUBWORK1.CNC

;Workpiece cutting subprogram

G90;

G00 X0 Y0;

/G01 Z-5. F500.;

G01 X100. F1500.;

X90. Y10.;

G03 X10. Y90. I-40. J40.;

G01 X0 Y100.;

Y0;

/Z0;

M99

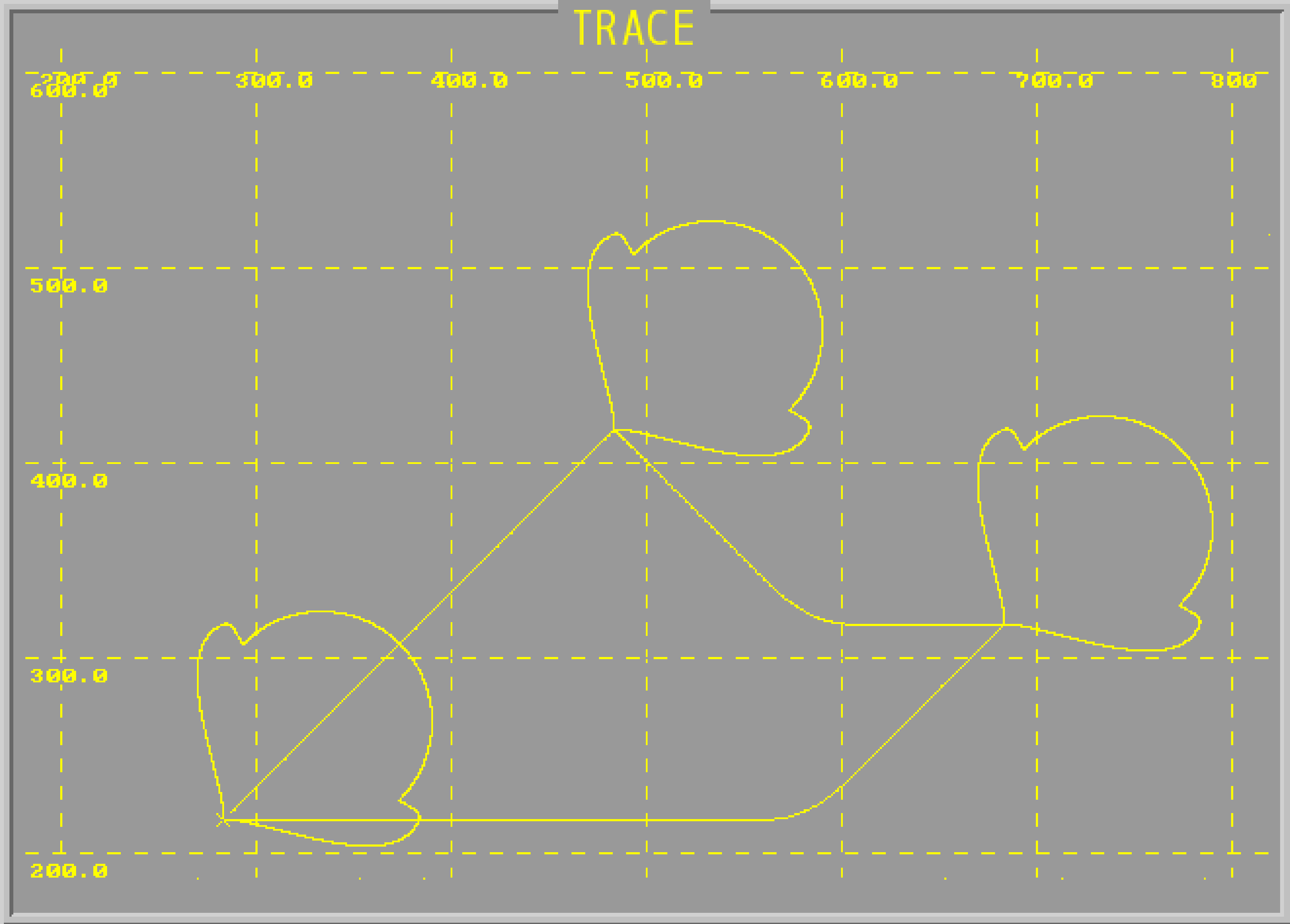

Example of Work Coordinate System: G54~G59
