2.2 Screen Display

After powering on, you will enter the main screen of the CNC controller. The main screen is divided into five parts: pull-down menu bar, program window, system state window, position state window and button column, as shown in the following figure.

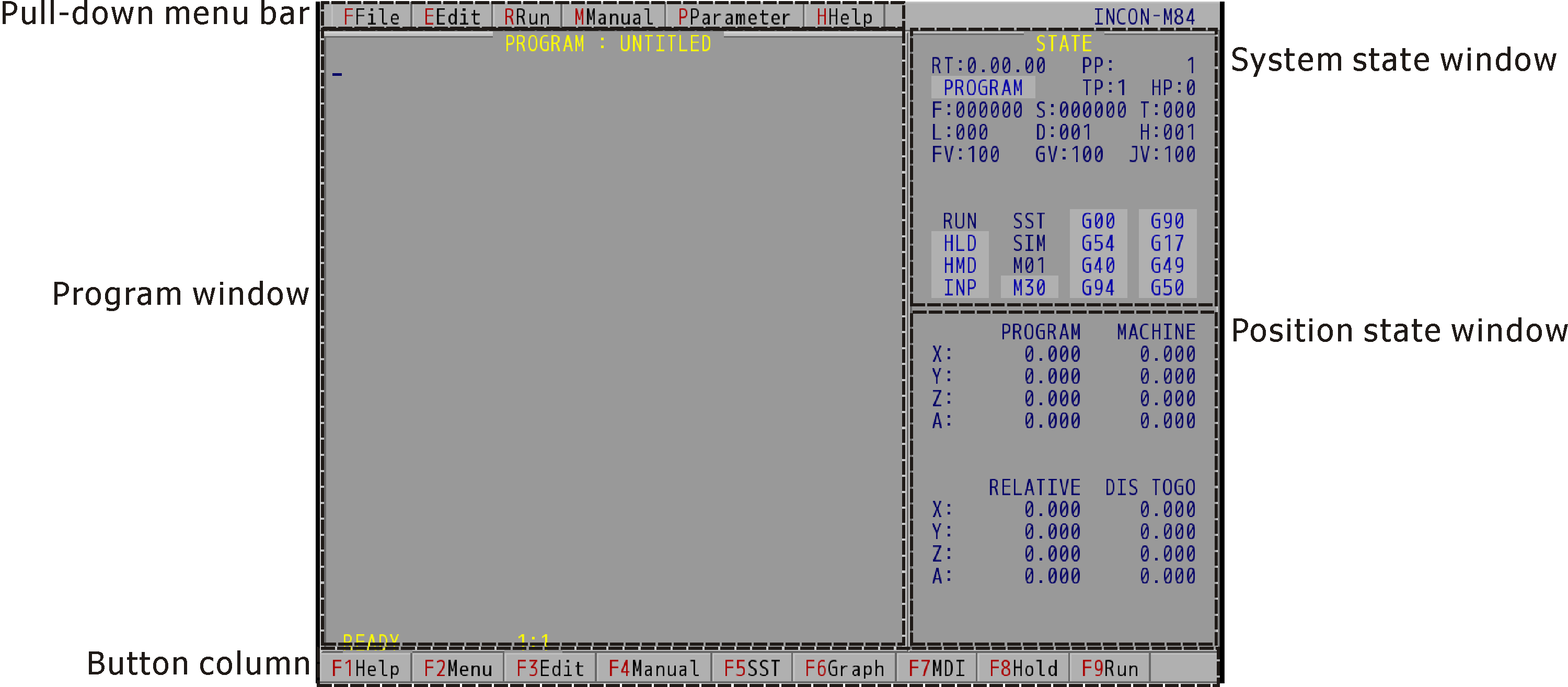

Controller Main Screen (INCON-M84)

Controller Main Screen (INCON-M86)

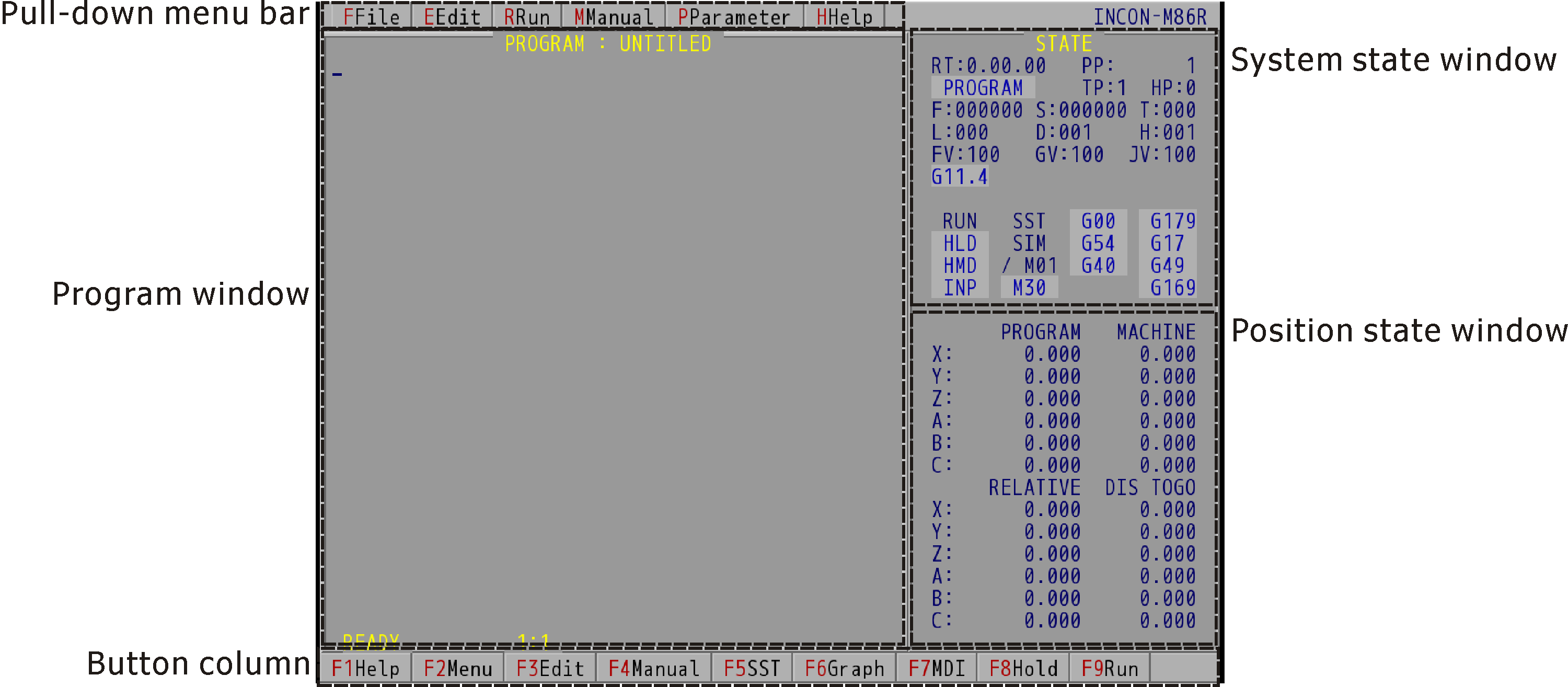

Controller Main Screen (INCON-M86R)
