INCON-M84/M86/M86R Manual

1.1 System Power Placement

First generation host:

When using INCON-M84/M86/M86R CNC controller, with your machine, you should use two DC 24V 100W Isolated switching power suppliers, one to supply power to the ECU, EQU, ENU, first operation panel and second operation panel, the other to supply power to the digital isolated input and output of the EQU.

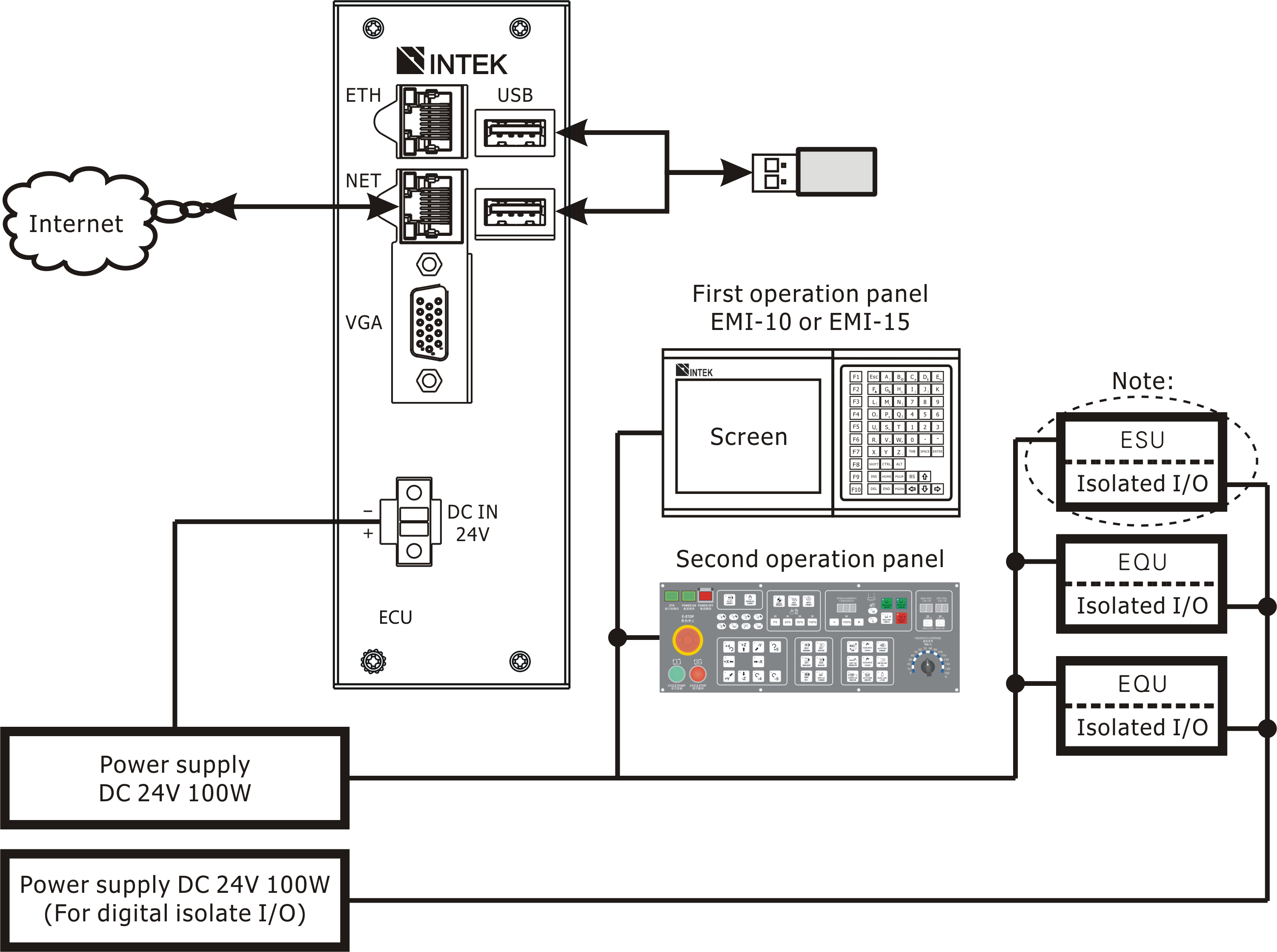

First Generation Host: M84, M86, M86R CNC Controller Power Placement

Second generation host:

When using INCON-M84/M86/M86R CNC controller, with your machine, you should use two DC 24V 100W Isolated switching power suppliers, one to supply power to the EQU, ENU, first operation panel and second operation panel, the other to supply power to the digital isolated input and output of the EQU. ECU second generation host will be shipped with an AC-DC adapter, when using, adapter input is AC 100V~240V, the output connector is connected to the DC IN power input of the ECU.

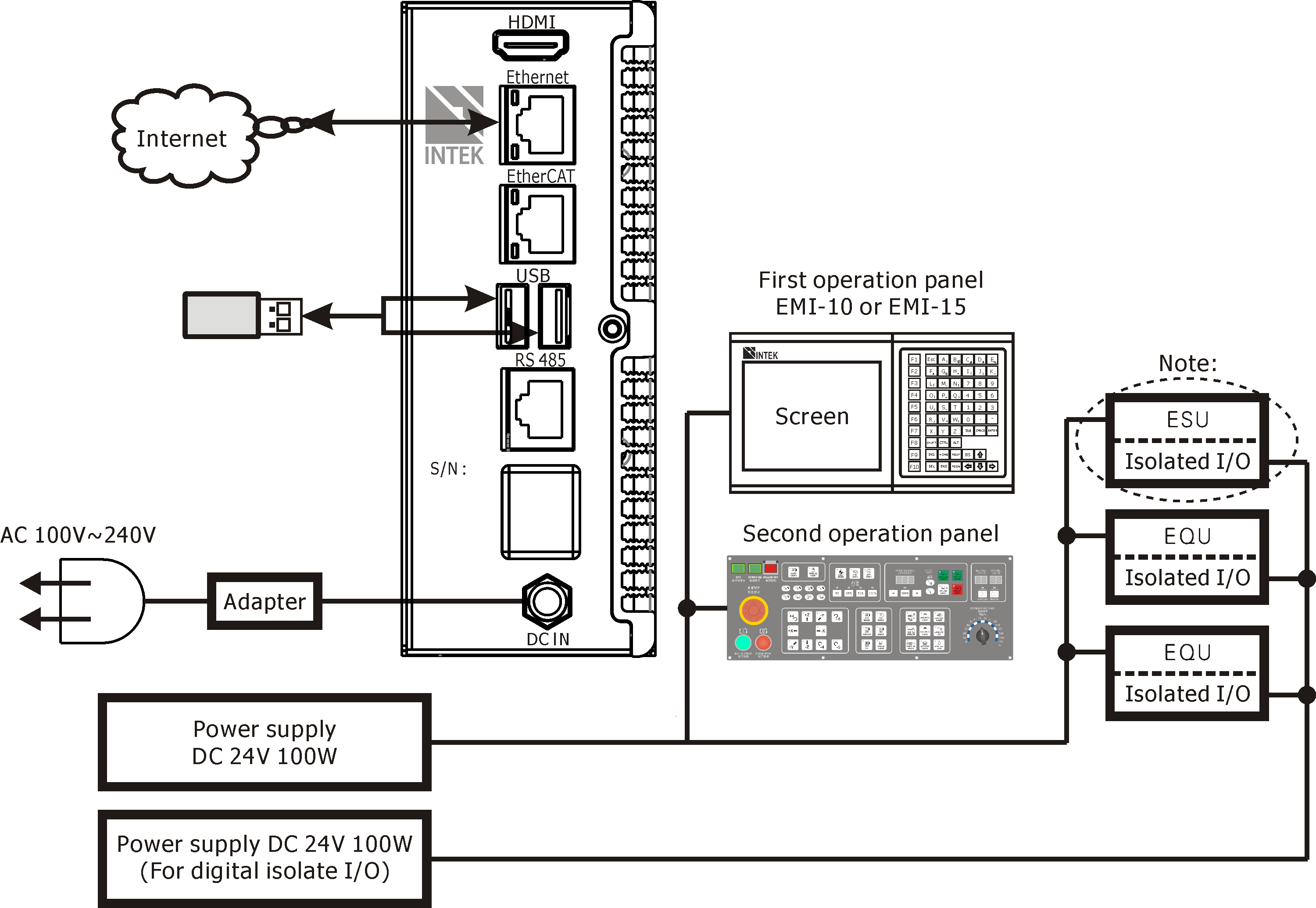

Second Generation Host: M84, M86, M86R CNC Controller Power Placement

Note: When the spindle driver interface is not EtherCAT, additional ESU is required.
