2.2.8 POWER Terminal (Available for First Generation Host only)

Power terminal is 2 pins insert type European regulation terminal connector, with a 5.08 mm spacing. This terminal should be connected to a 24V DC switching power supply. To prevent serious issues of power drop and insufficient current, the power supply must be able to supply 50W capacity with 24V DC, 2.1A specification. (If power supply also supplied to other unit, the power supply capacity must meet total power consumption)

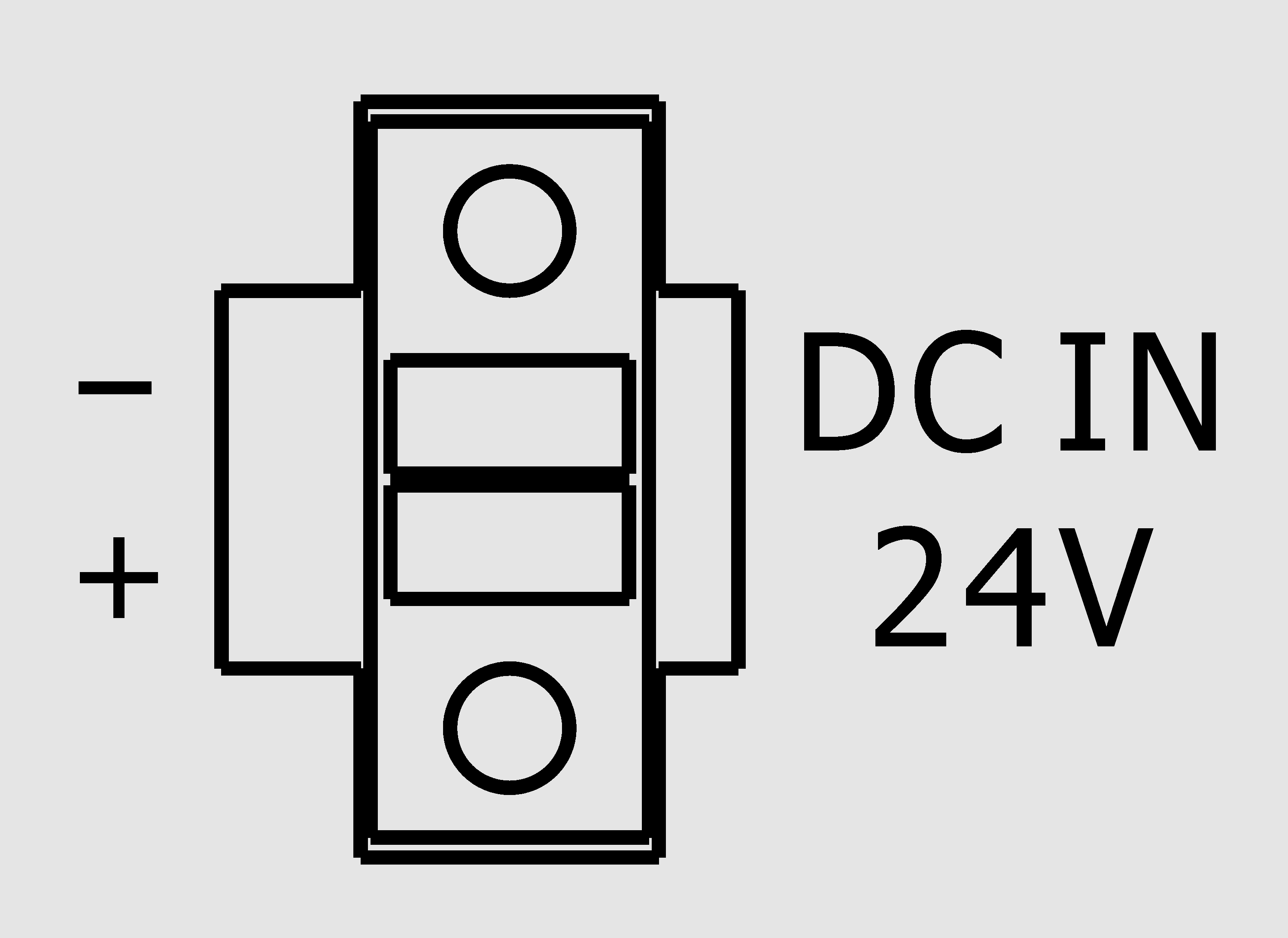

Power Terminal

Note:

When connecting the power supply, please be sure to check the power supply, voltage and polarity, so as to avoid system damage.
