2.2.7 RS-485 Connector (Available for Second Generation Host only)
RS-485 connector is a standard RJ-45 connector, and an RJ-45 to D-type 9 PIN adapter cable is included in the shipment, which can be programmed by the PLC and communicate with other RS- 485 supported devices.
- RJ-45 Connector
Pin |
Definition |
1 |
Data- |
3 |
Data+ |
- RJ-45 to D-type 9 PIN adapter cable
Pin |
Definition |
1 |
Data- |
2 |
Data+ |
5 |
Ground |
Metal |
Case Ground |

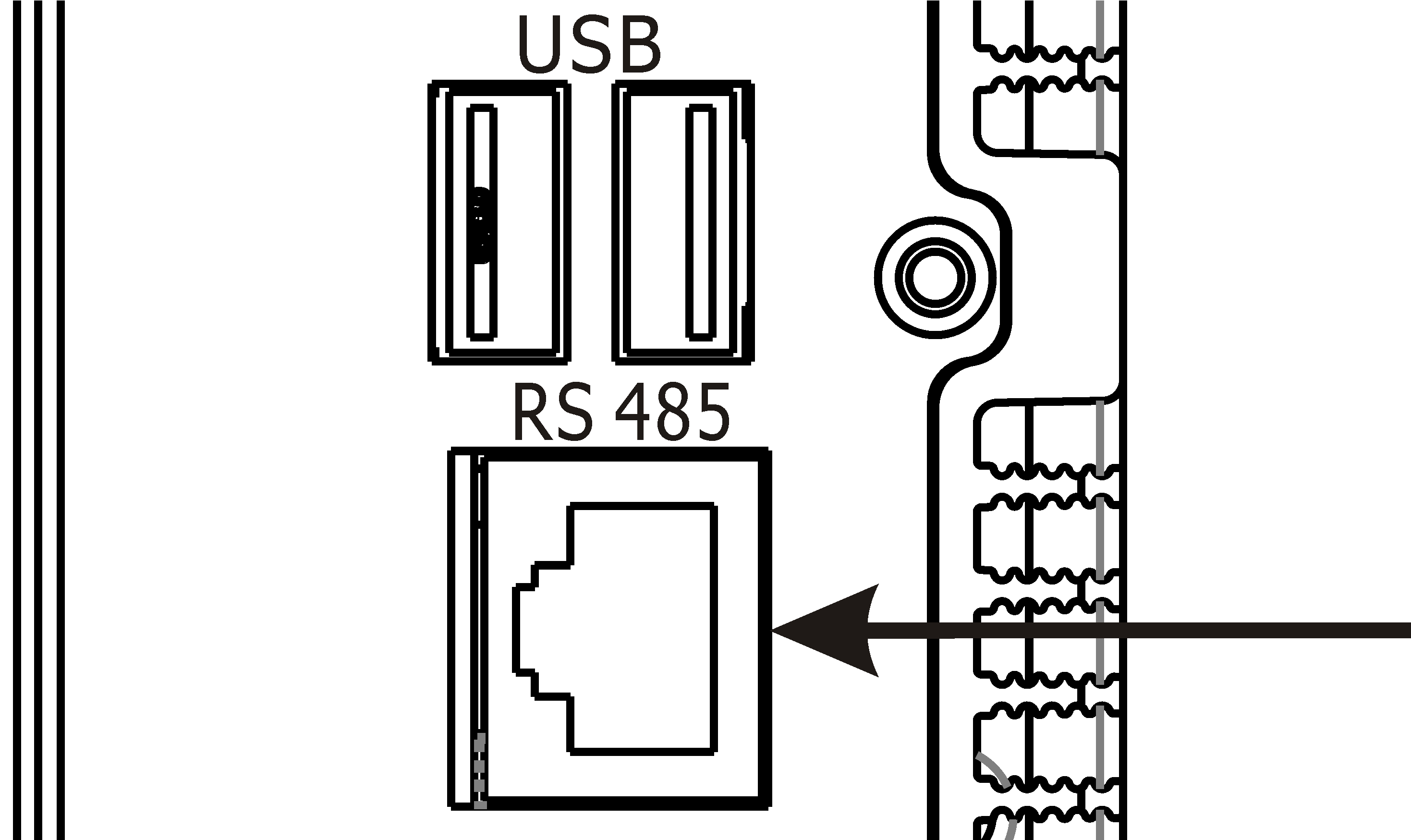

RS-485 Connector
