2.2.6 RS-485 Connector (Available for First Generation Host only)
RS-485 connector is a standard 9 pin D-sub connector, which can be programmed by PLC to communicate with other RS-485 supported devices.
Pin
|
Definition
|
2
|
Data+
|
3
|
Data-
|
5
|
Ground
|
Metal
|
Case Ground
|

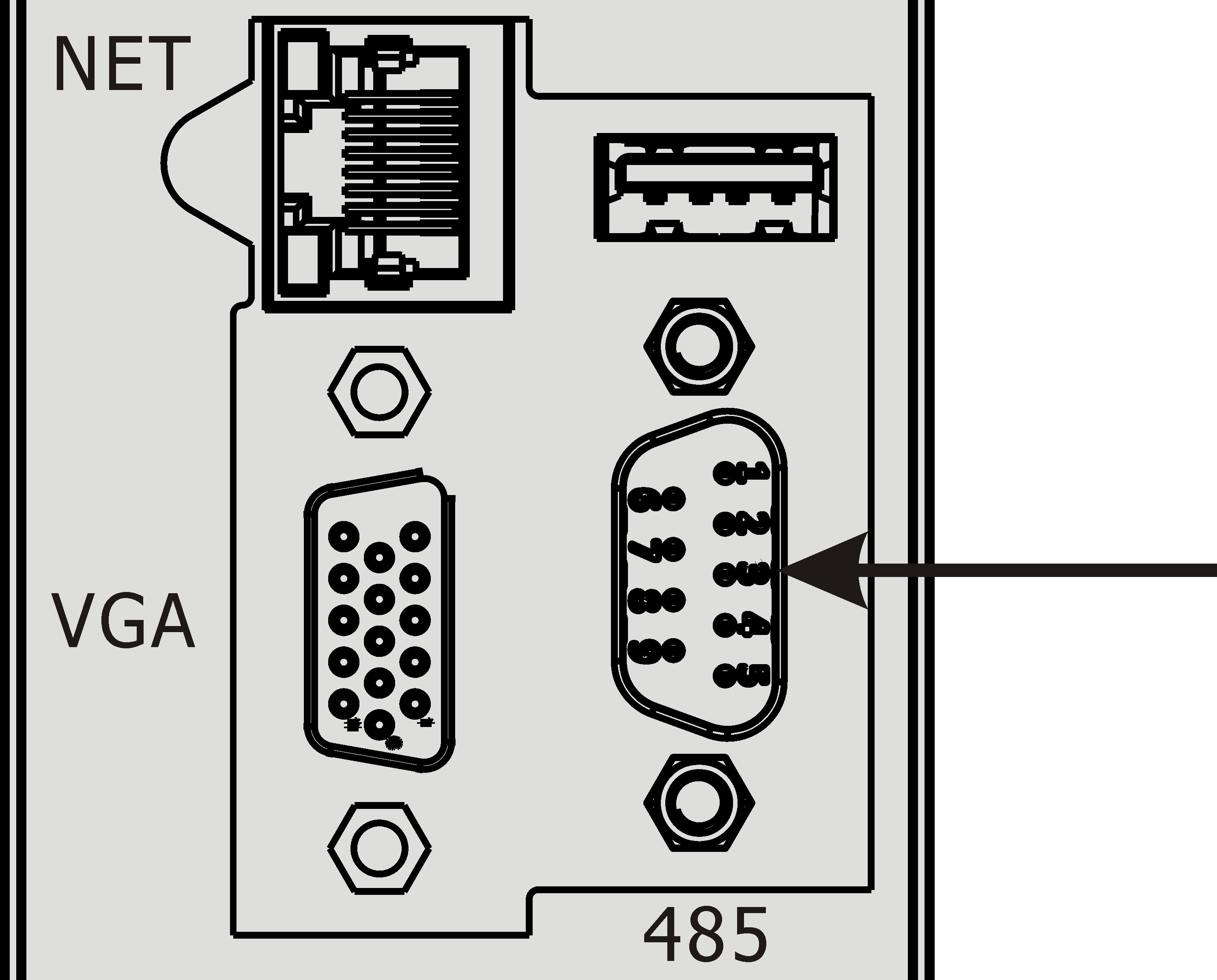

RS-485 Connector
