2.5.1 TB1: Power Terminal
For TB1 to provide EQU unit with DC 24V connection terminal, when connecting power, please use the same power supplier with ECU. When power is going through, the power indicator D34 LED would light up. Before sending power, please first make sure power and power range and positive and negative pole, are correct.
Pin |
24V |
24G |
F.G |
Explain |
DC 24V power positive pole "+" input |
DC 24V power negative pole "-" input |
Ground protection through ground screw cable to electrical box, to copper plate |

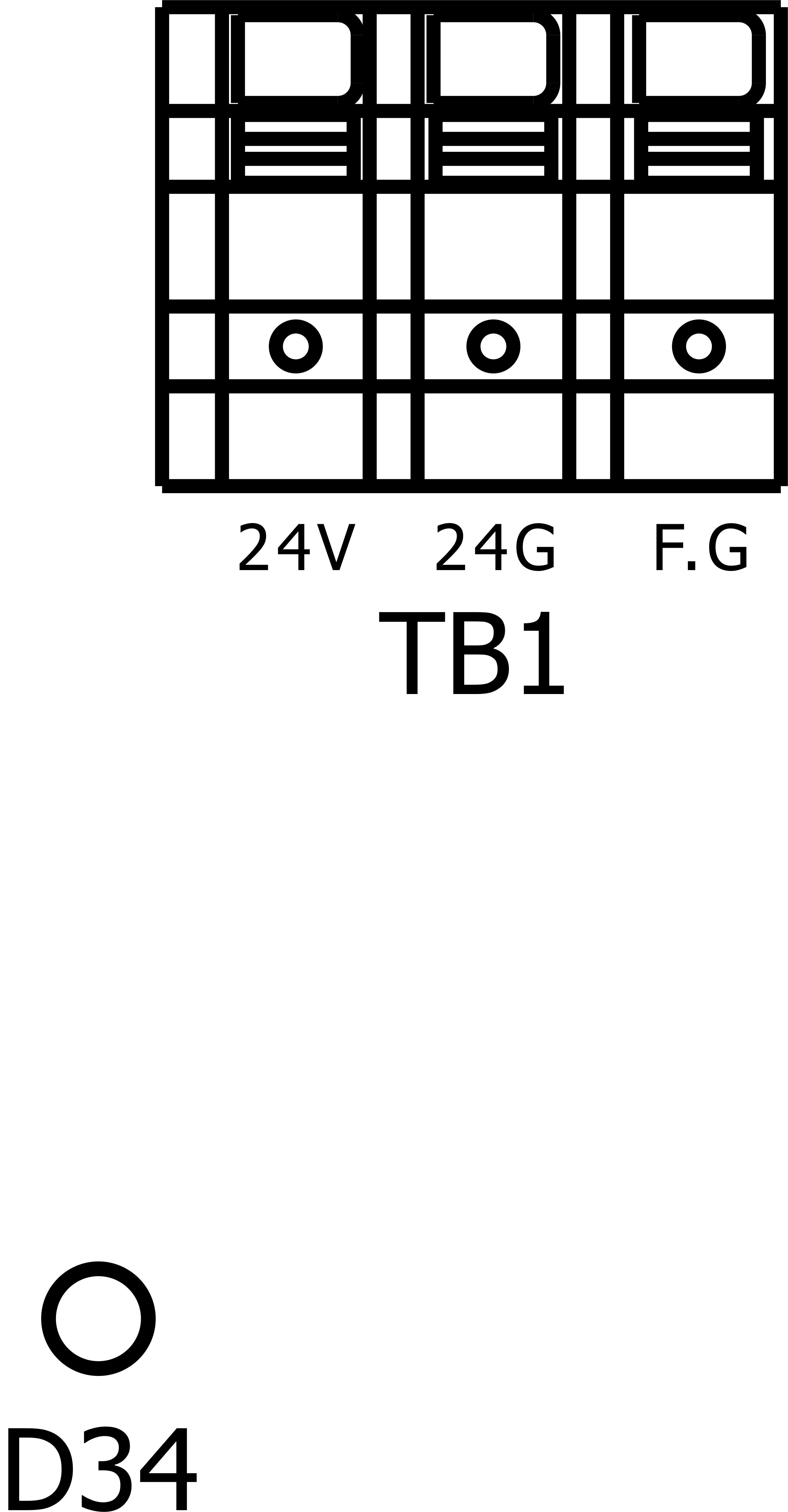

TB1 Power Terminal

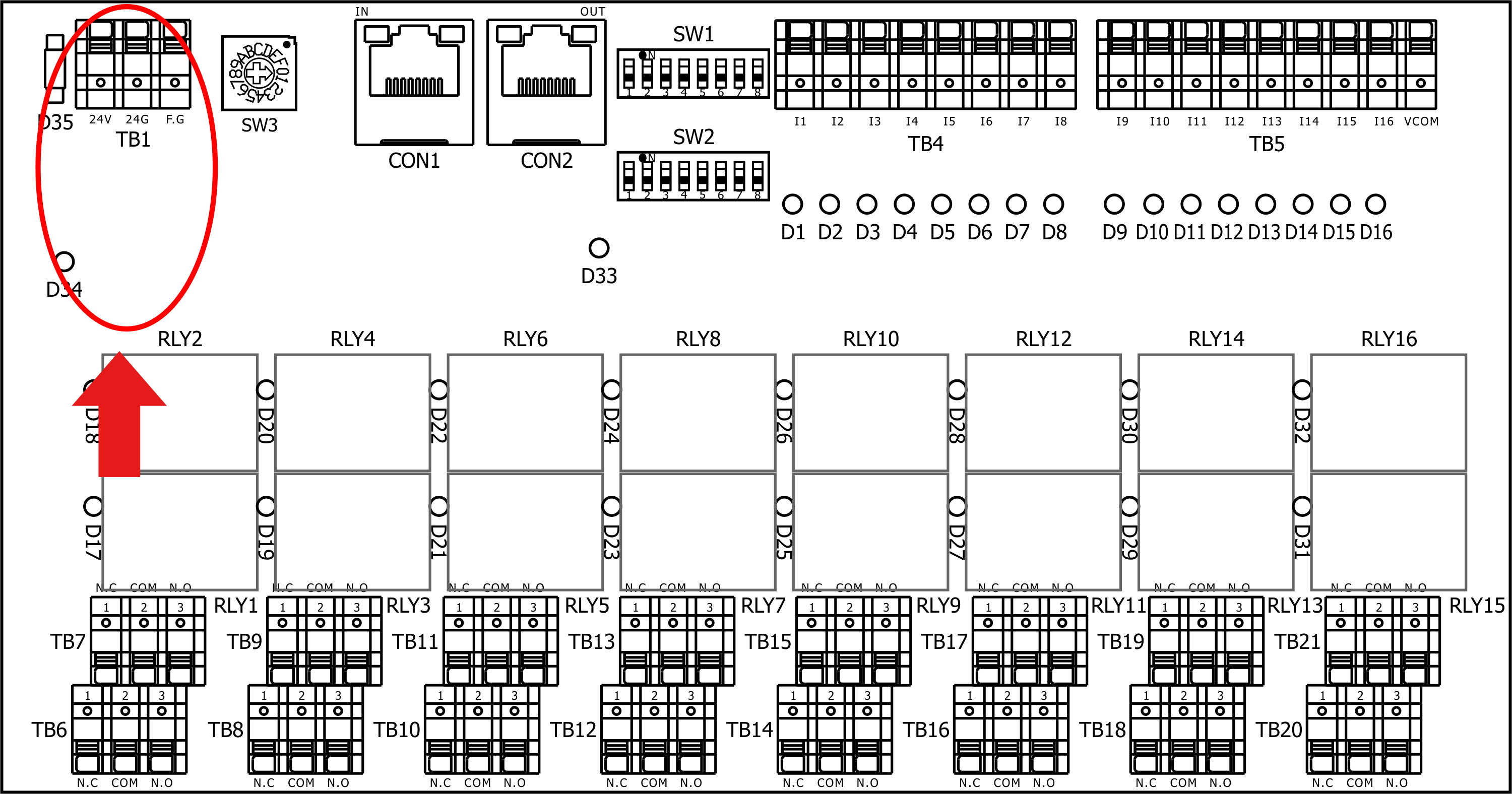

TB1 Placement Drawing
