2.5.6 SW1, SW2: Digital Input Simulator
SW1, SW2 input Simulator refer to when the switch in ON, the dip switch, can force the input point of EQU to be turned on. Under normal circumstances, it should be OFF.
Hand switch location |
SW1-1 |
SW1-2 |
SW1-3 |
SW1-4 |
SW1-5 |
SW1-6 |
SW1-7 |
SW1-8 |
Corresponding input point |
I1 |
I2 |
I3 |
I4 |
I5 |
I6 |
I7 |
I8 |
Hand switch location |
SW2-1 |
SW2-2 |
SW2-3 |
SW2-4 |
SW2-5 |
SW2-6 |
SW2-7 |
SW2-8 |
Corresponding input point |
I9 |
I10 |
I11 |
I12 |
I13 |
I14 |
I15 |
I16 |

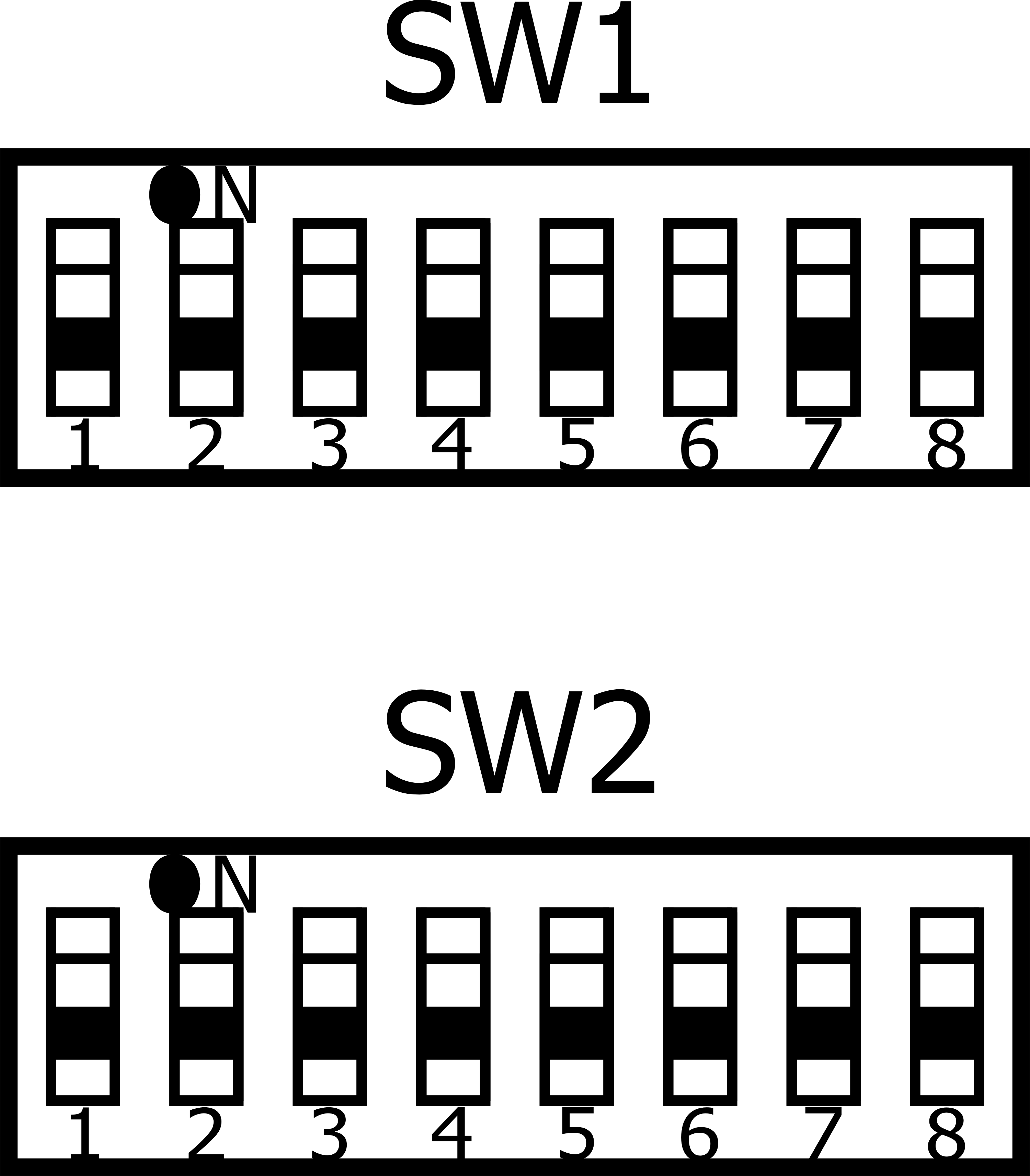

SW1, SW2 Input Simulator

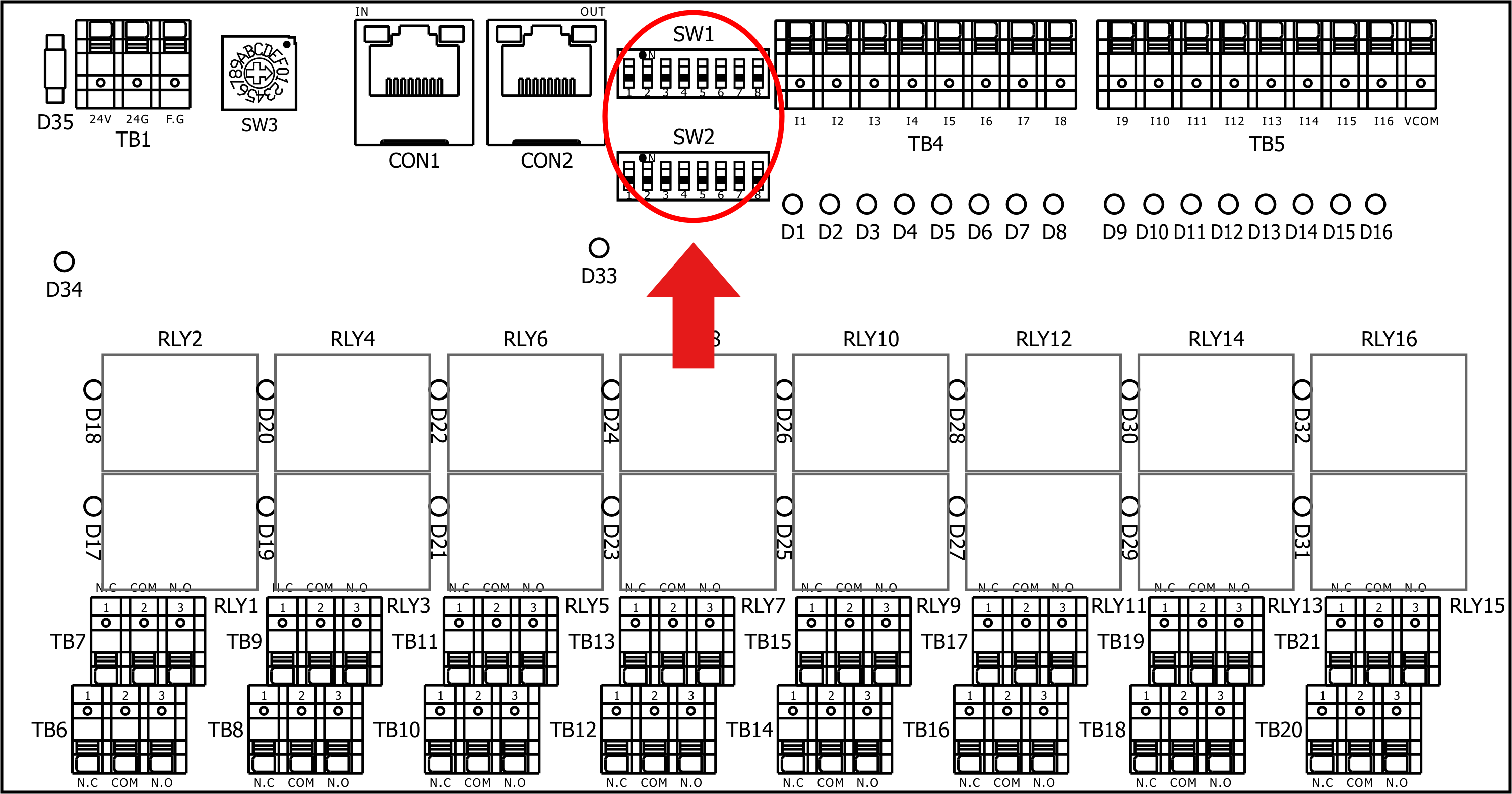

SW1, SW2, Placement Drawing
