2.5.5 CON1, CON2: EtherCAT Ethernet Communication Connector


  • CON1：EtherCAT cable IN

Connect to the previous EtherCAT device.

  • CON2：EtherCAT cable OUT

Connect to the next EtherCAT device.

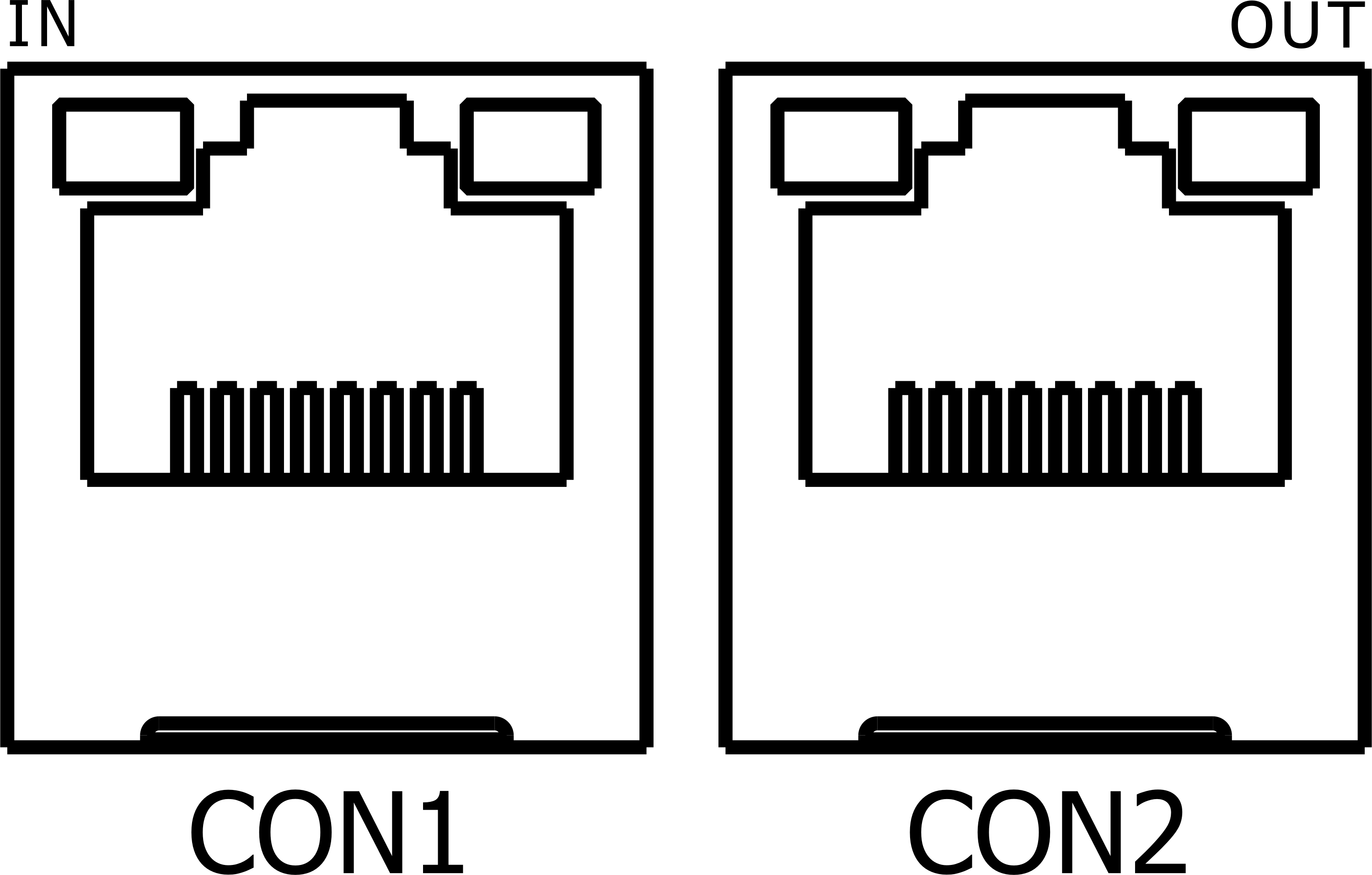

CON1, CON2 EtherCAT Connector

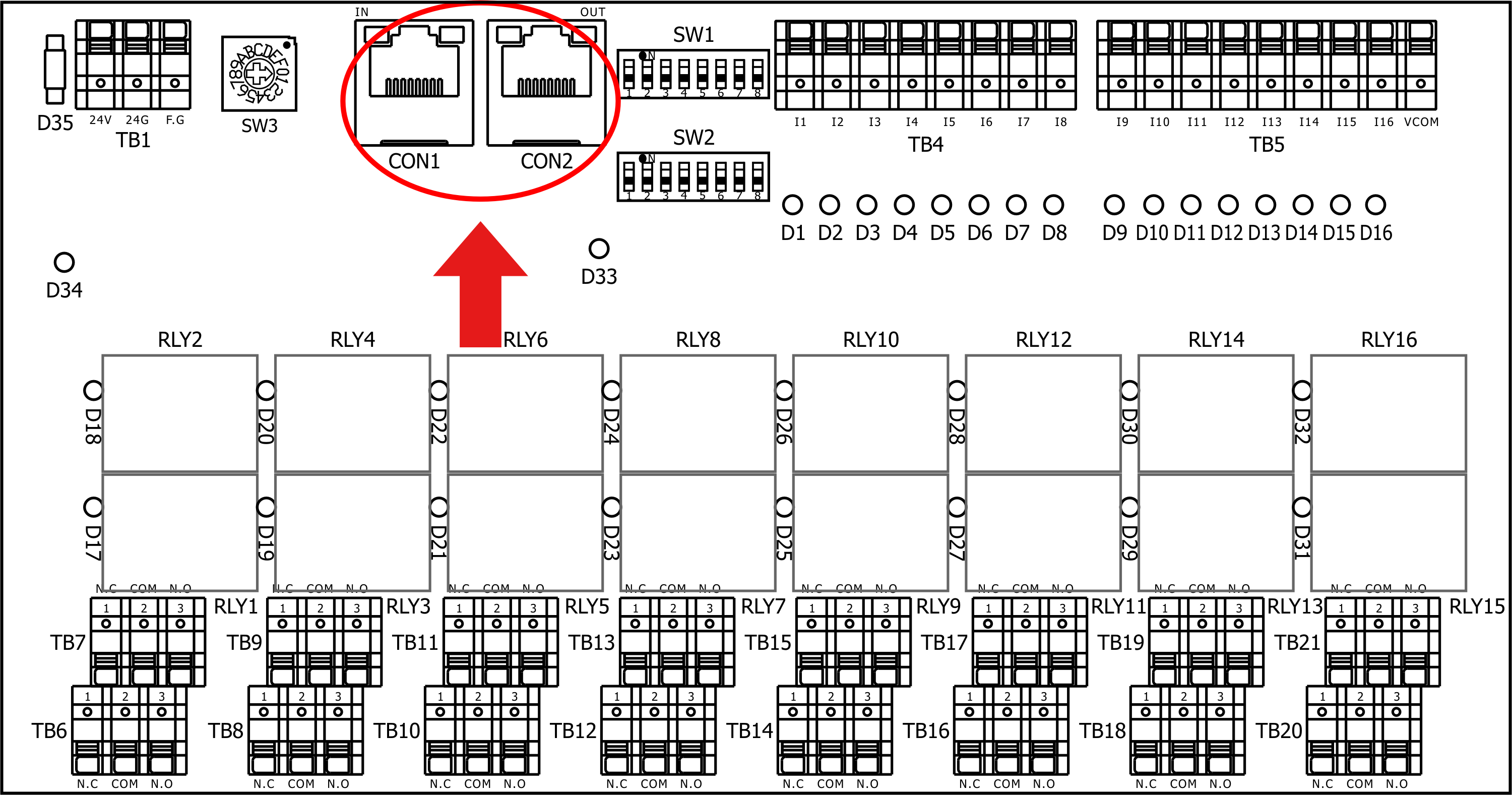

CON1, CON2 Placement Drawing
