2.5.4 SW3: EQU Address Setting
The SW3 rotary setting switch upon the EQU unit, its function is the setting the unit of EQU to be which unit. The relationship is according to the table below:
Please be aware: EQU and CNC Controller embedded I/O communication Unit ENU, use 16 I/O addresses, it cannot have two devices in the same time, setting to the same unit.

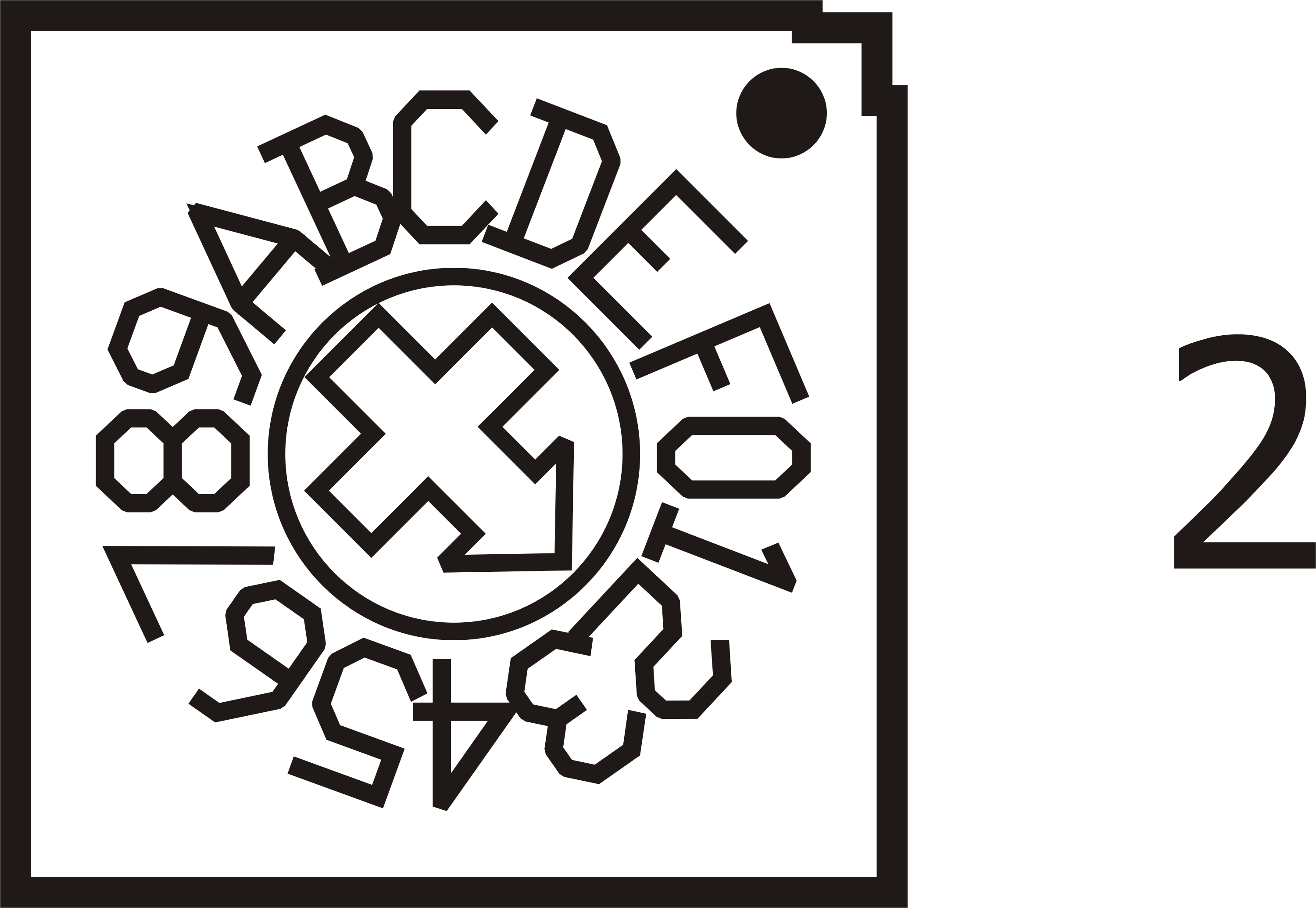

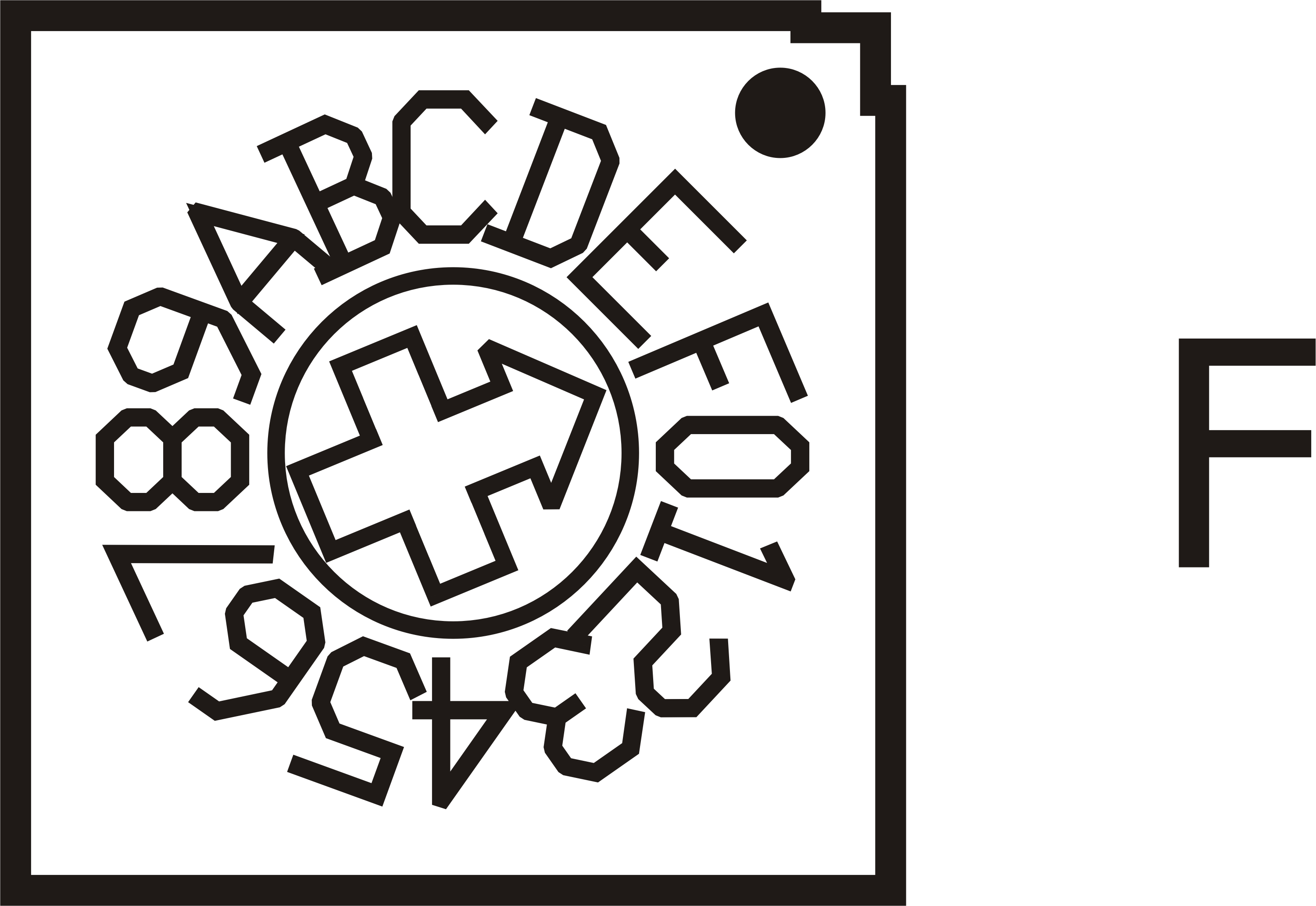

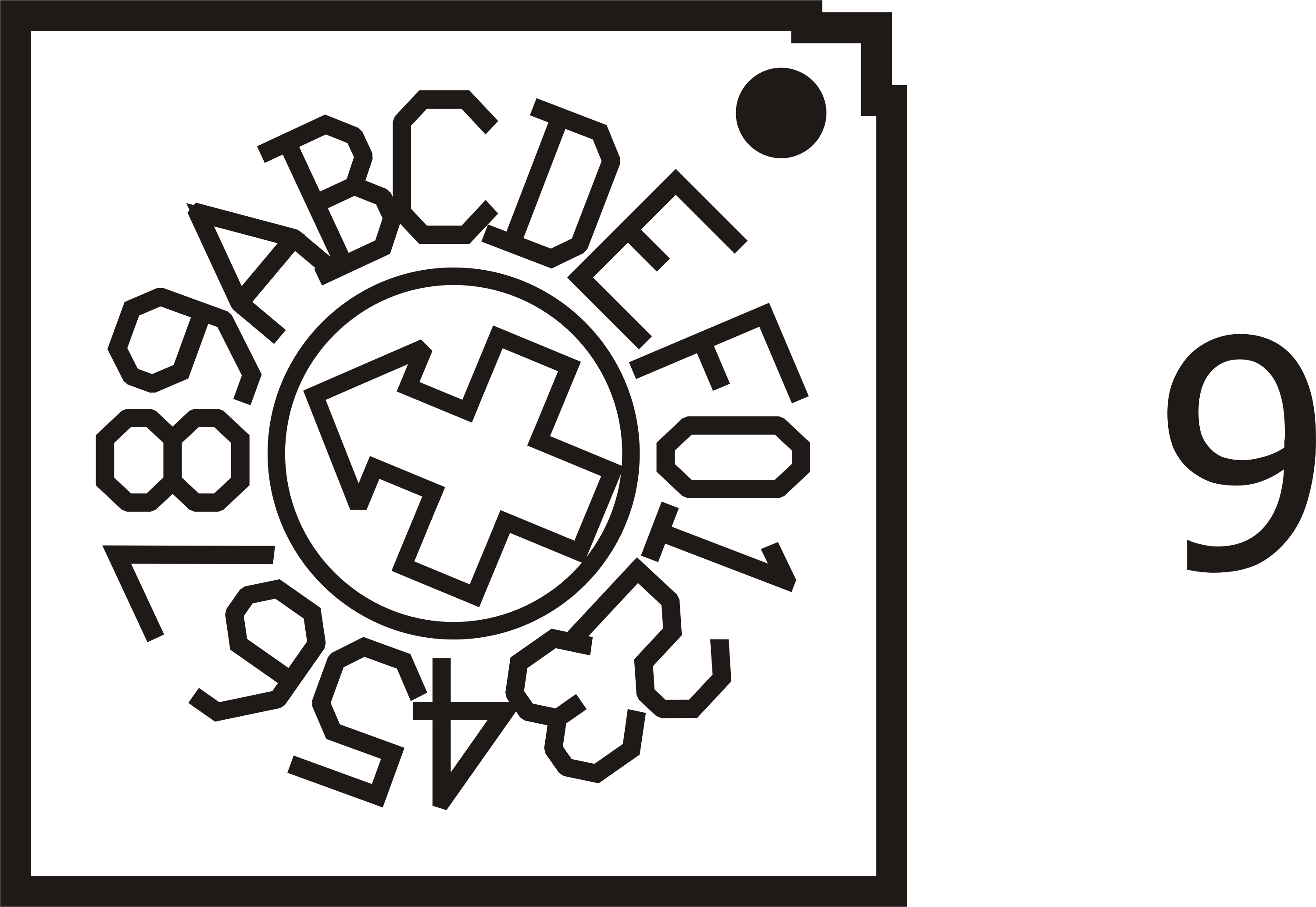

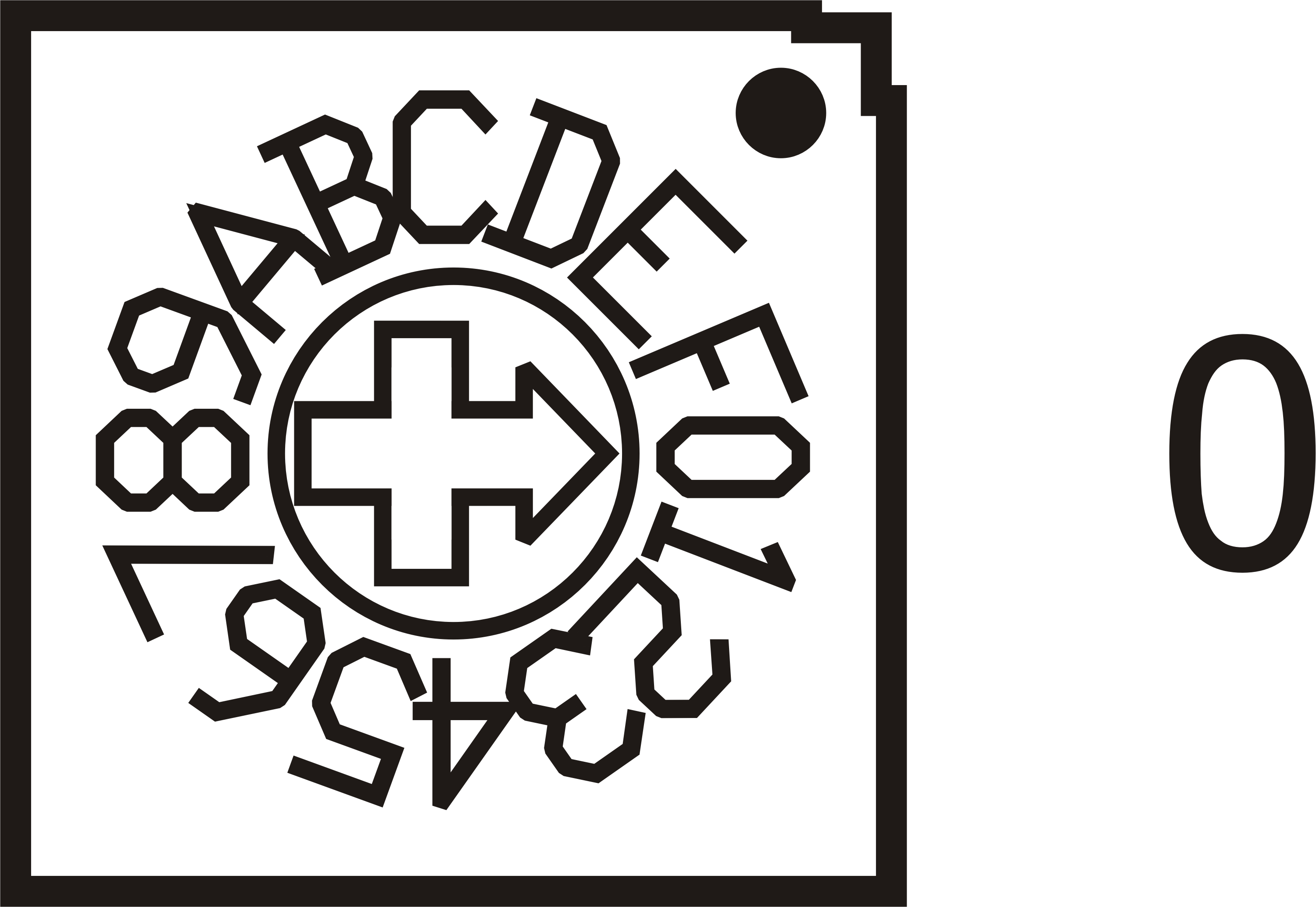

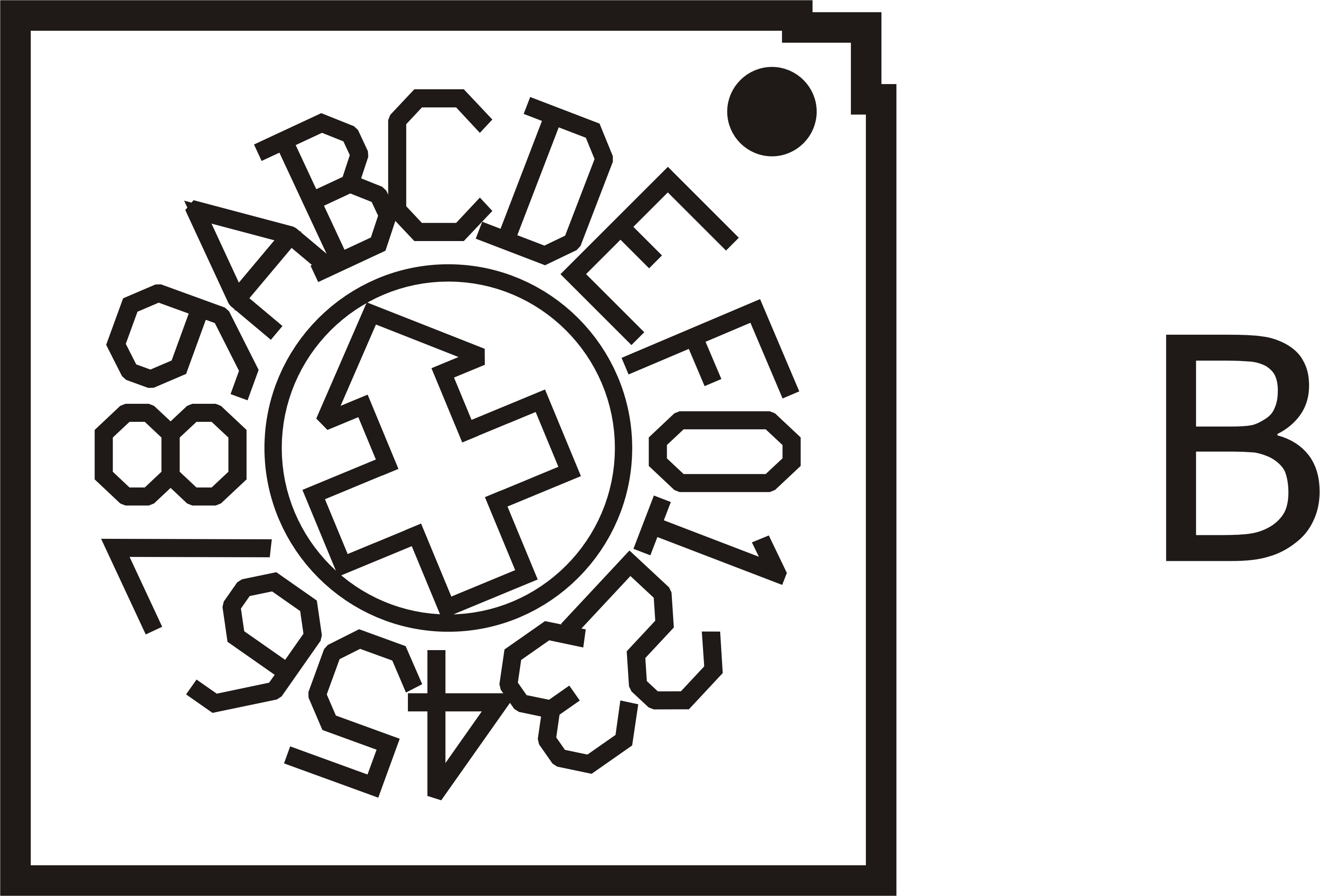

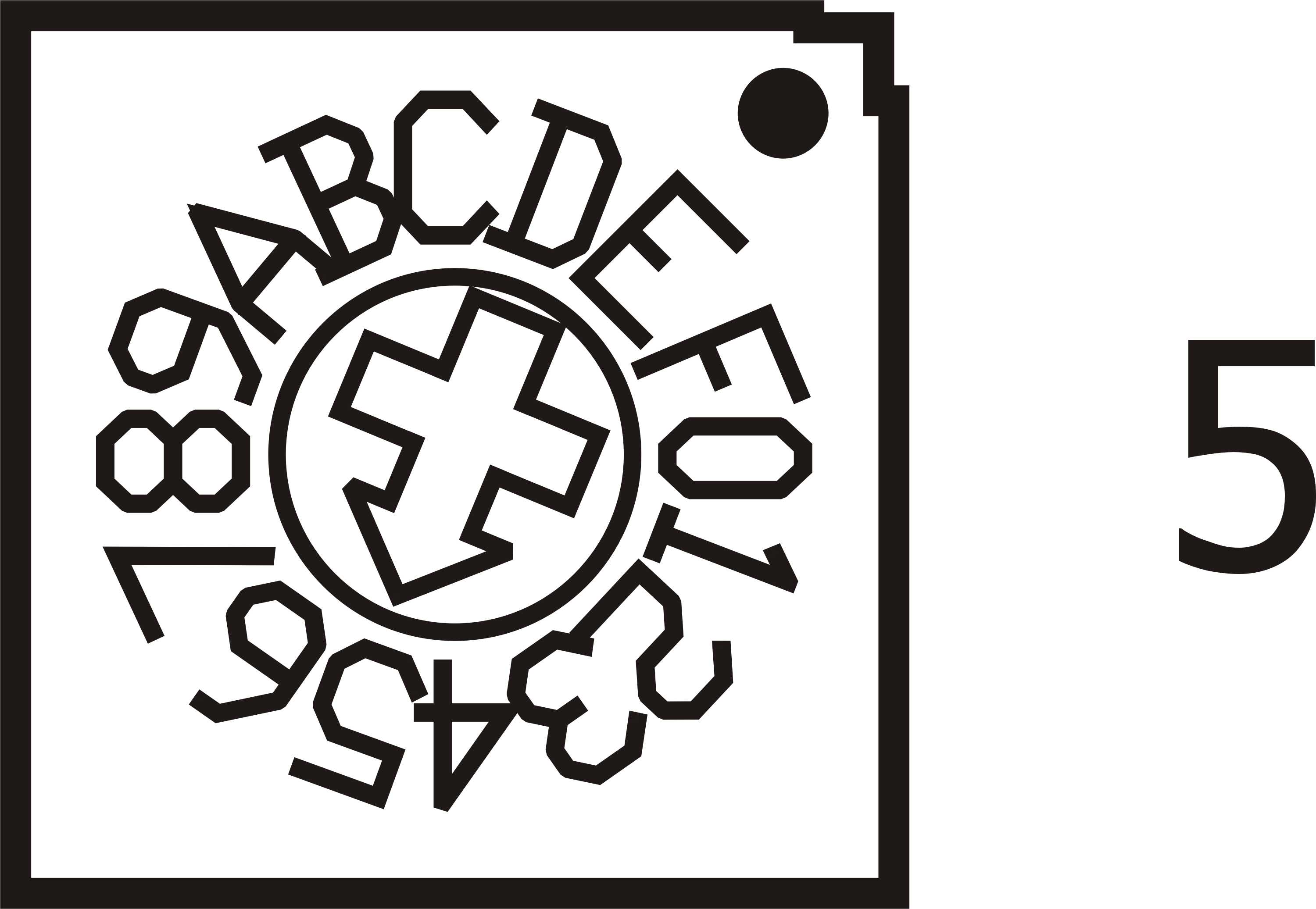

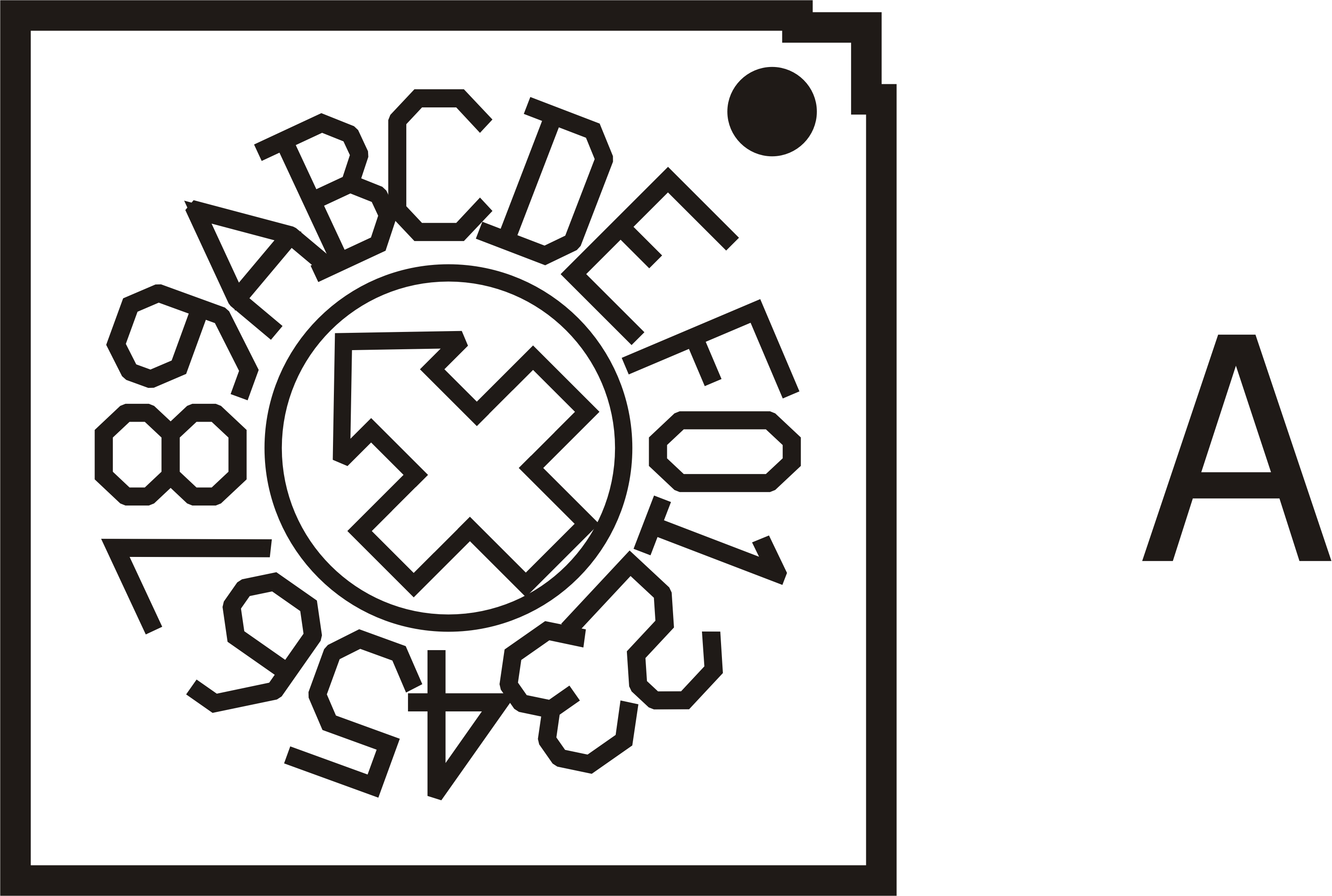

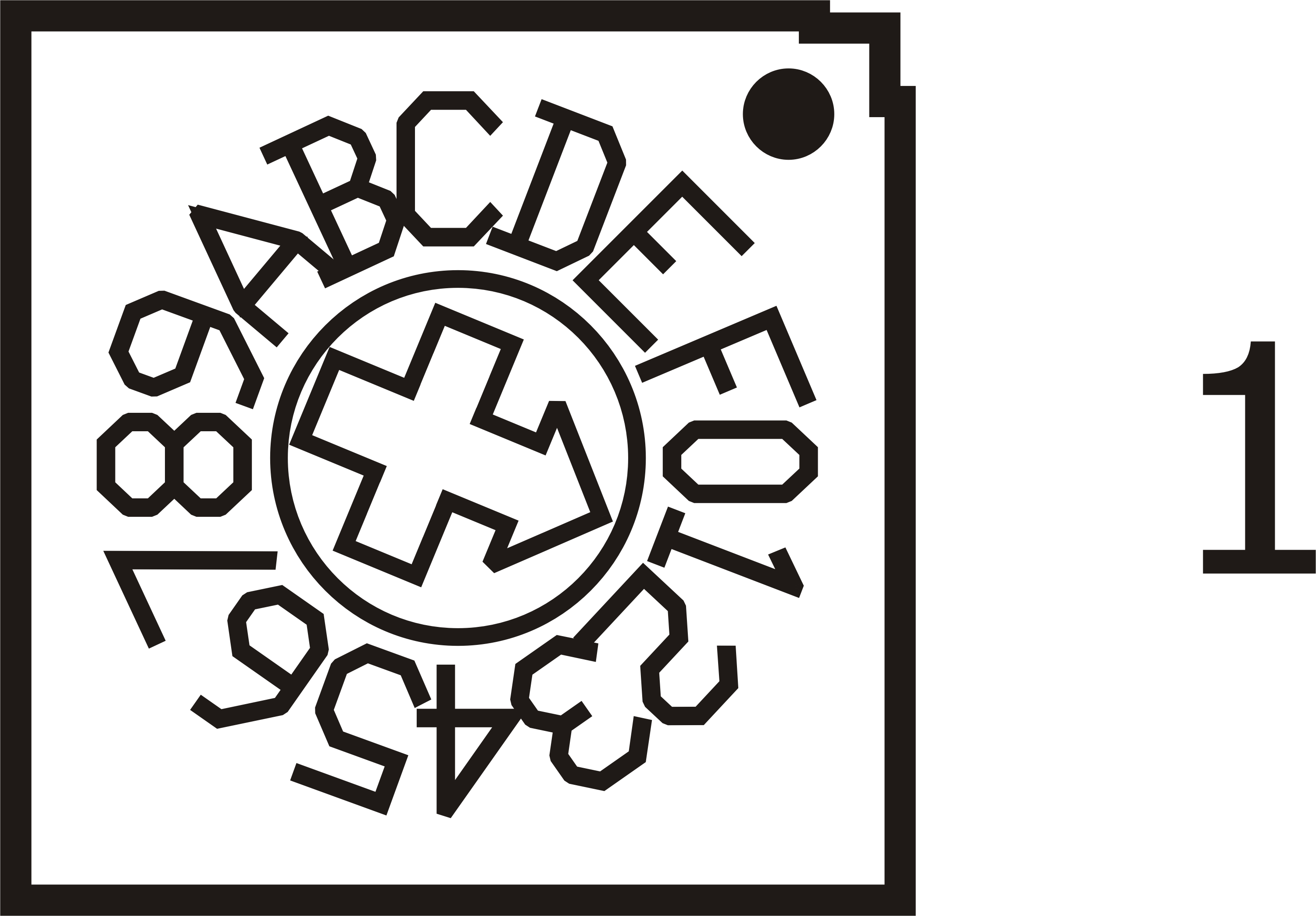

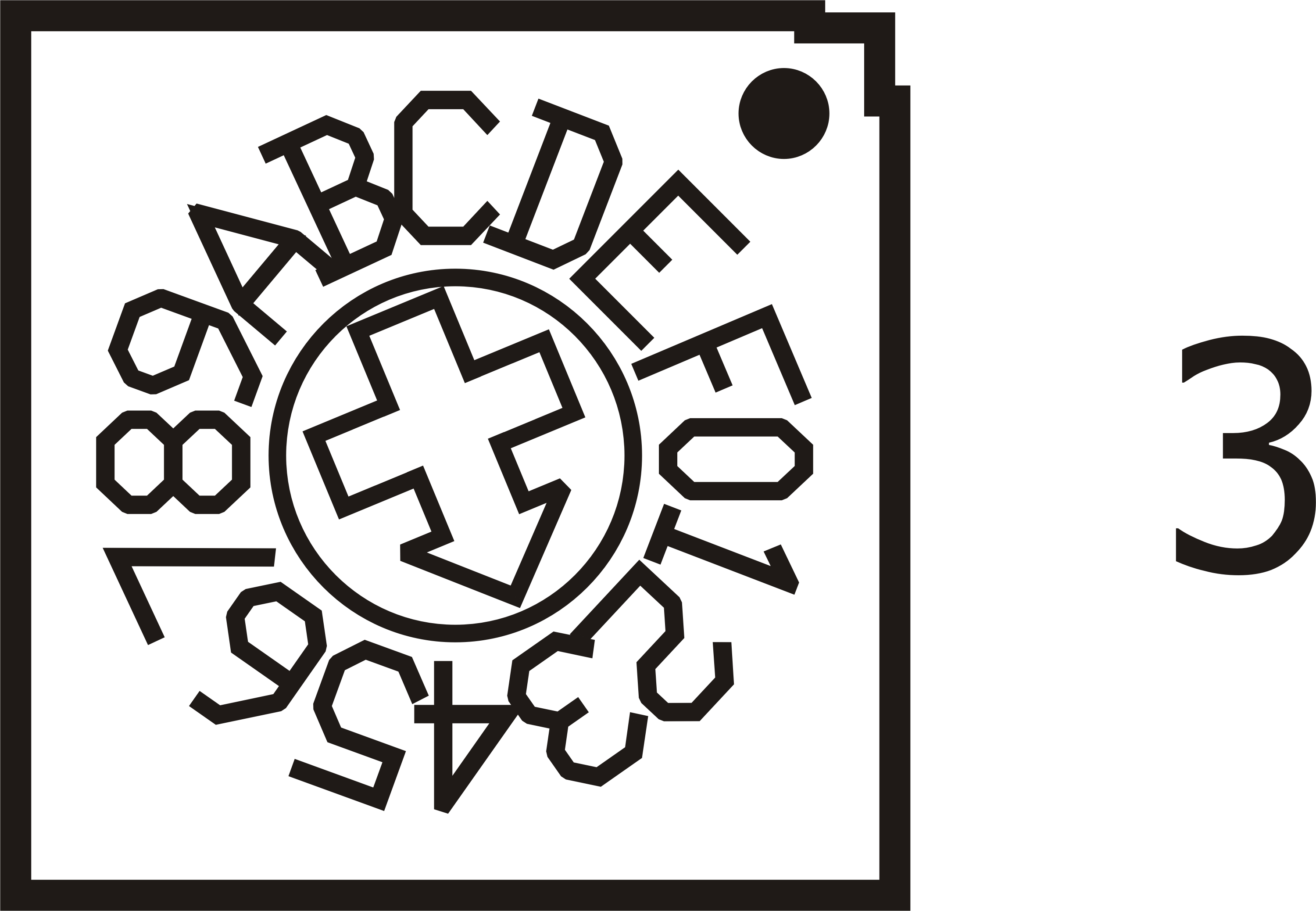

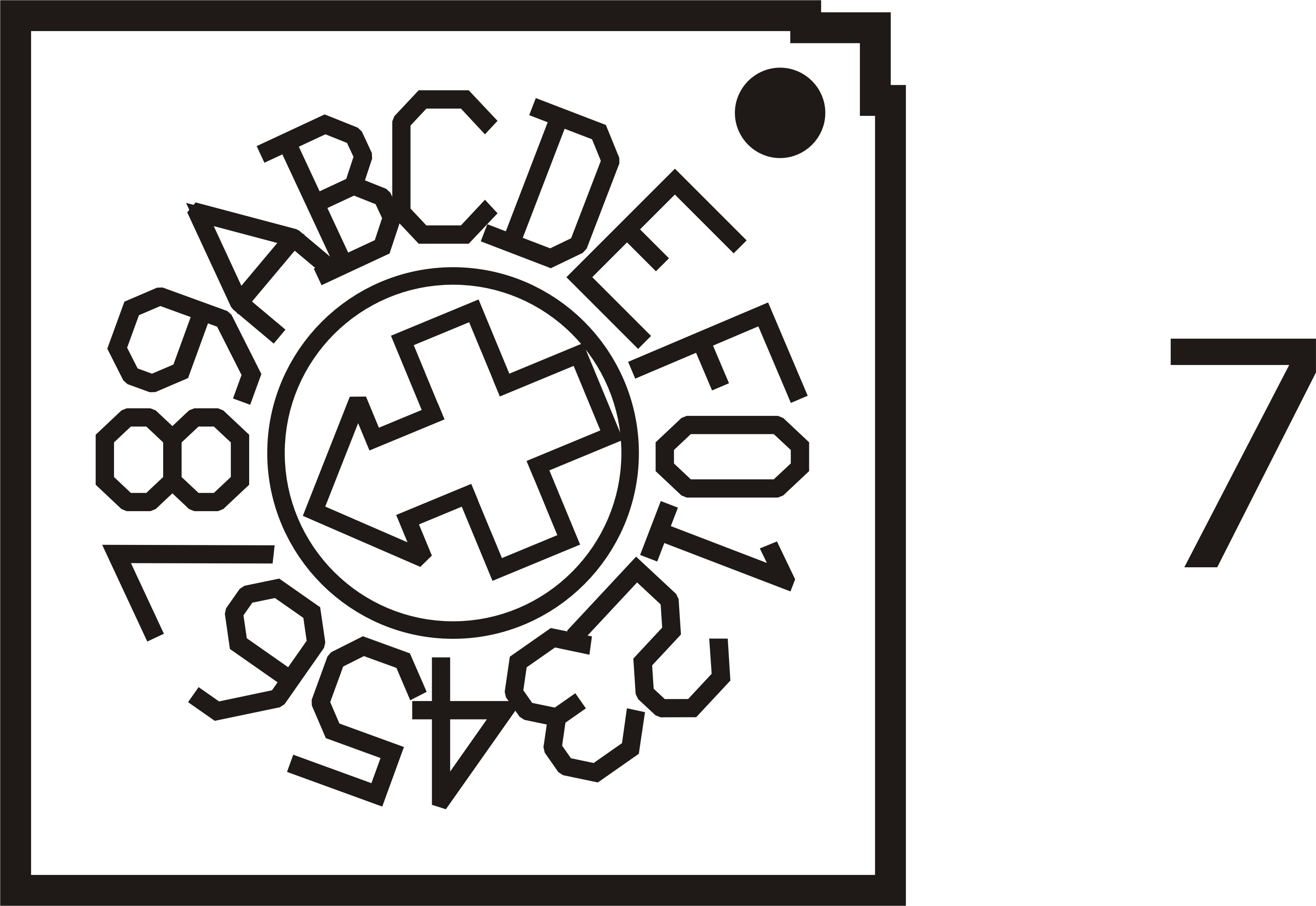

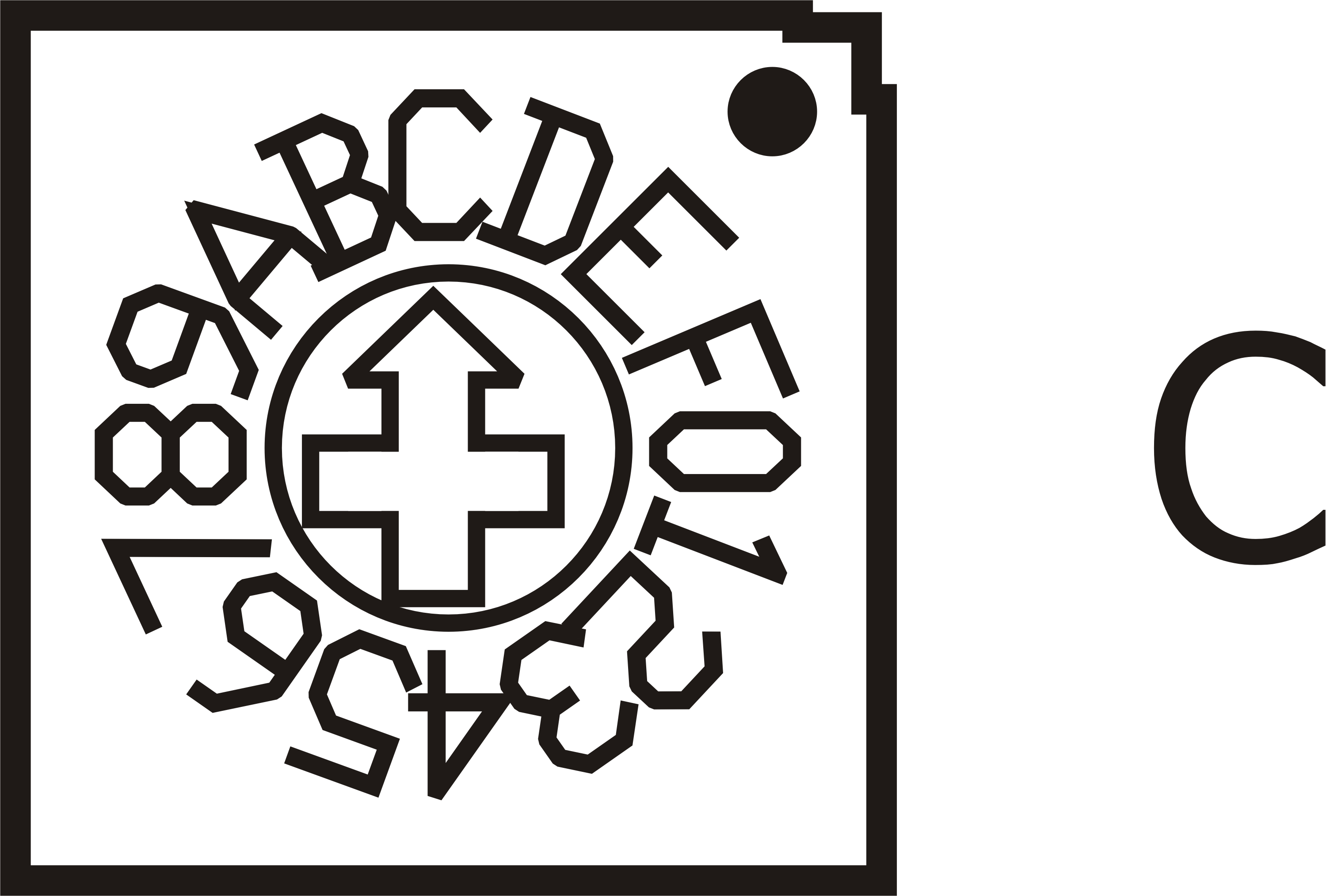

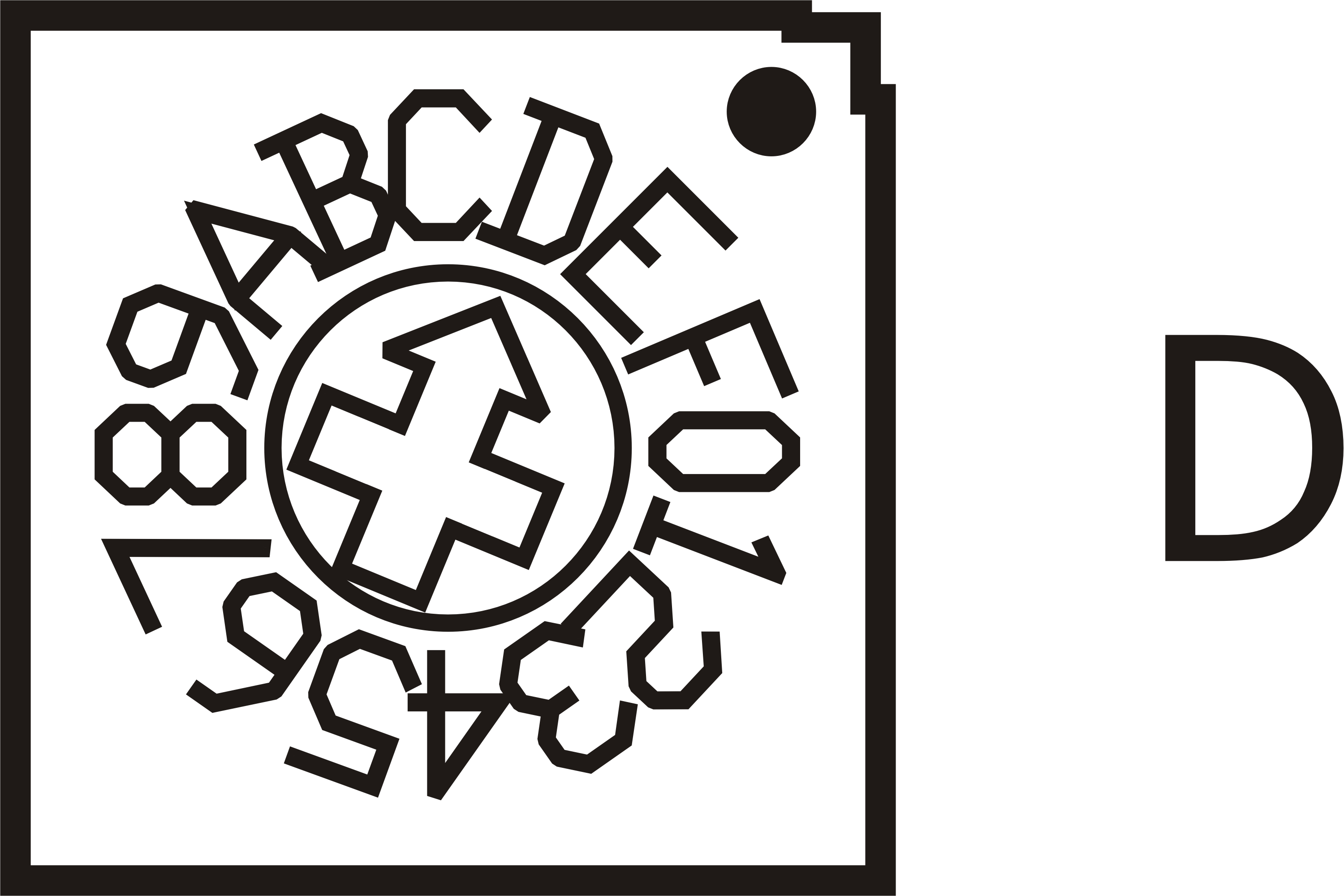

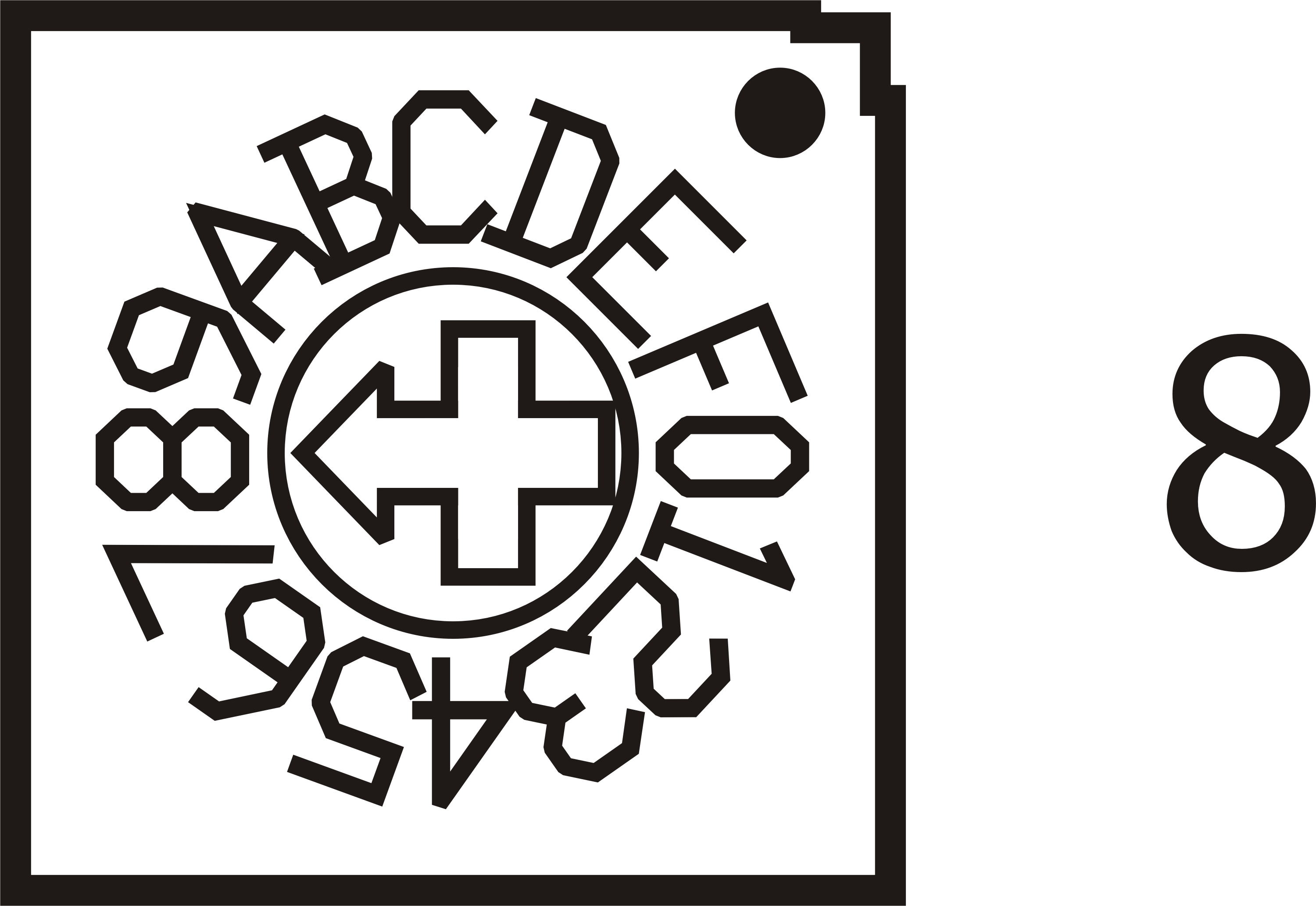

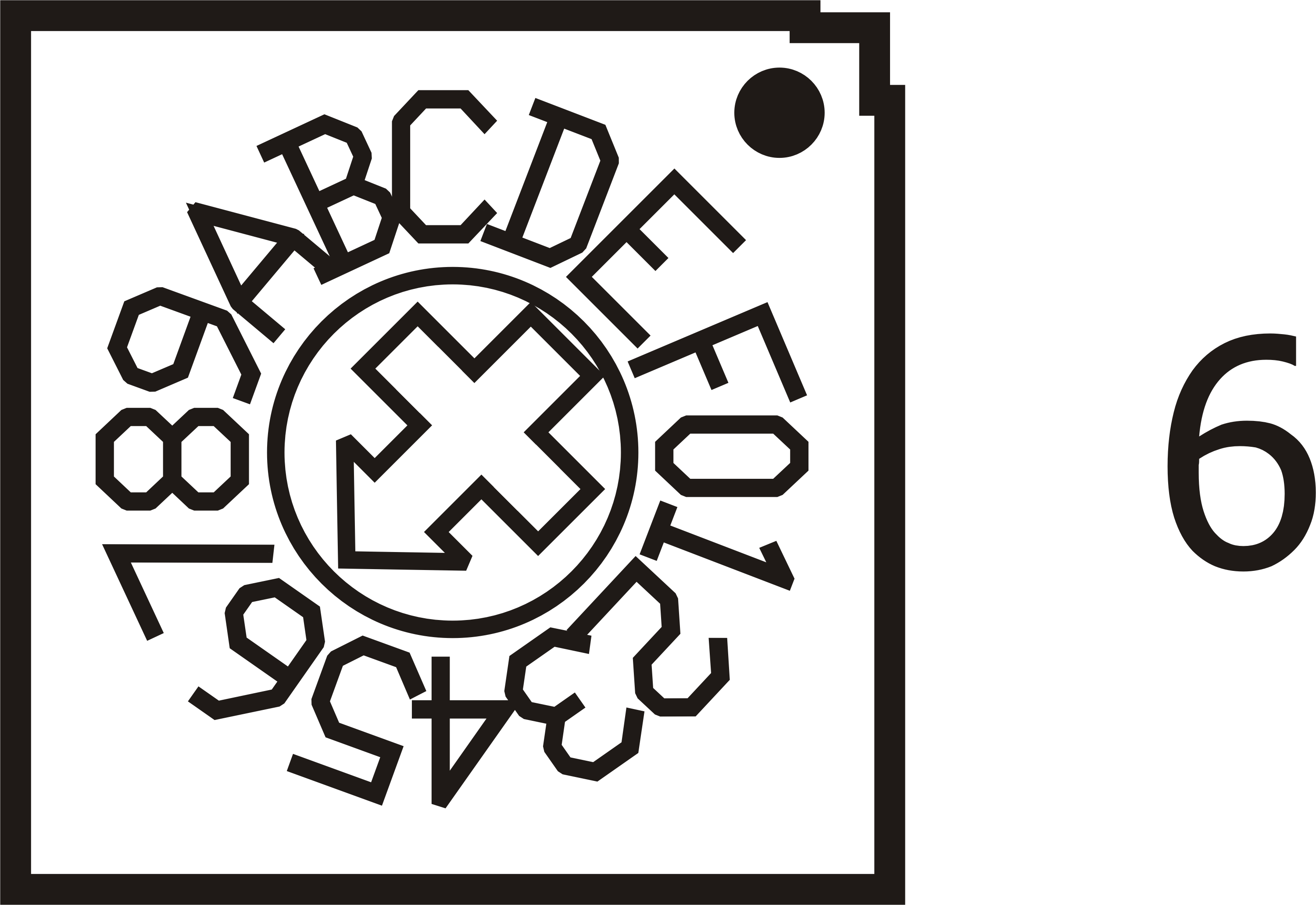

SW3 rotary switch setting |
I/O unit |
Corresponding PLC resource |
|
Unit 1 |
Input point plc.gdi[0].bit.bit00~0f Output point plc.gdo[0].bit.bit00~0f |
|
Unit 2 |
Input point plc.gdi[1].bit.bit00~0f Output point plc.gdo[1].bit.bit00~0f |
|
Unit 3 |
Input point plc.gdi[2].bit.bit00~0f Output point plc.gdo[2].bit.bit00~0f |
|
Unit 4 |
Input point plc.gdi[3].bit.bit00~0f Output point plc.gdo[3].bit.bit00~0f |
|
Unit 5 |
Input point plc.gdi[4].bit.bit00~0f Output point plc.gdo[4].bit.bit00~0f |
|
Unit 6 |
Input point plc.gdi[5].bit.bit00~0f Output point plc.gdo[5].bit.bit00~0f |
|
Unit 7 |
Input point plc.gdi[6].bit.bit00~0f Output point plc.gdo[6].bit.bit00~0f |
|
Unit 8 |
Input point plc.gdi[7].bit.bit00~0f Output point plc.gdo[7].bit.bit00~0f |
|
Unit 9 |
Input point plc.gdi[8].bit.bit00~0f Output point plc.gdo[8].bit.bit00~0f |
|
Unit 10 |
Input point plc.gdi[9].bit.bit00~0f Output point plc.gdo[9].bit.bit00~0f |
|
Unit 11 |
Input point plc.gdi[10].bit.bit00~0f Output point plc.gdo[10].bit.bit00~0f |
|
Unit 12 |
Input point plc.gdi[11].bit.bit00~0f Output point plc.gdo[11].bit.bit00~0f |
|
Unit 13 |
Input point plc.gdi[12].bit.bit00~0f Output point plc.gdo[12].bit.bit00~0f |
|
Unit 14 |
Input point plc.gdi[13].bit.bit00~0f Output point plc.gdo[13].bit.bit00~0f |
|
Unit 15 |
Input point plc.gdi[14].bit.bit00~0f Output point plc.gdo[14].bit.bit00~0f |
|
Unit 16 |
Input point plc.gdi[15].bit.bit00~0f Output point plc.gdo[15].bit.bit00~0f |

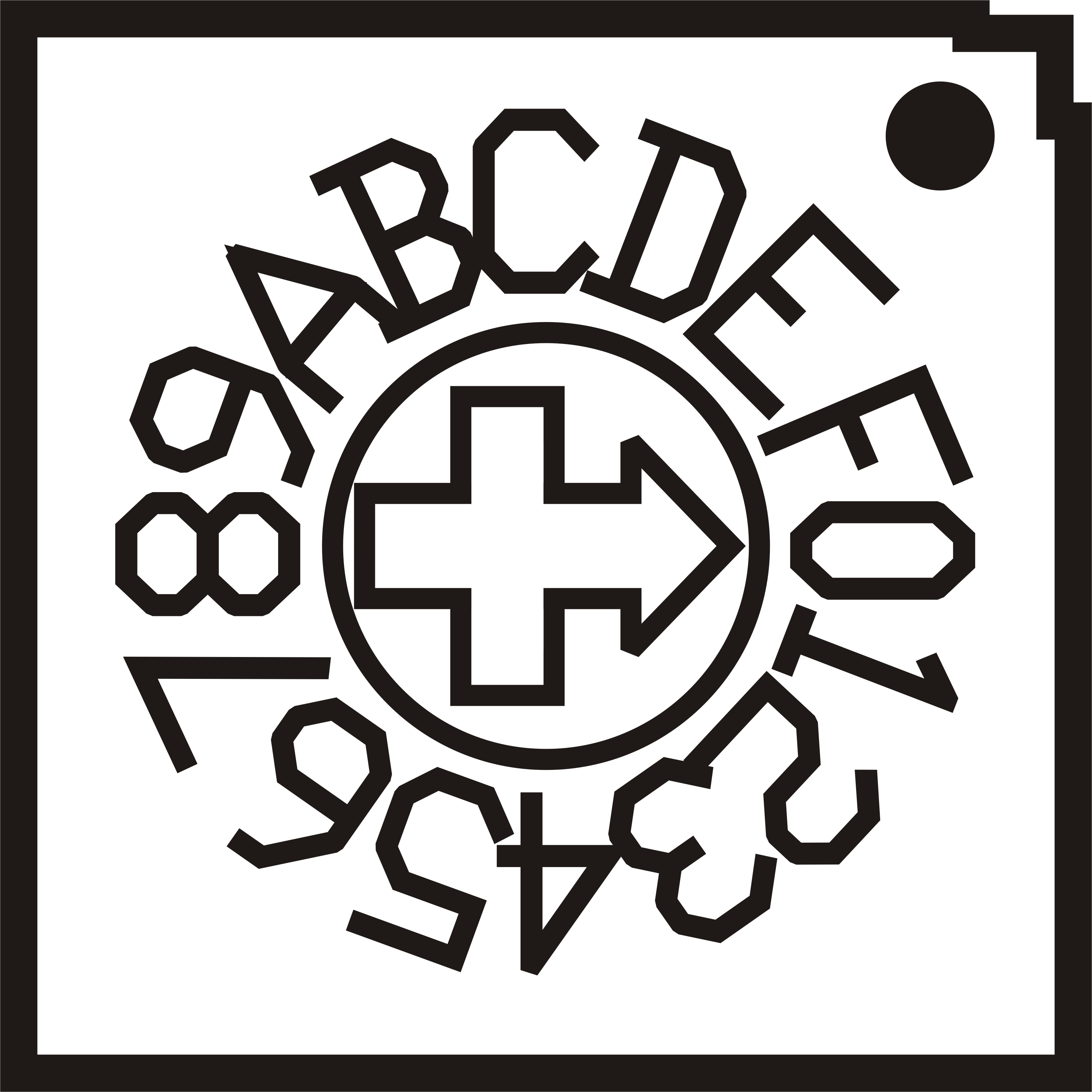

SW3 EQU Address Setting

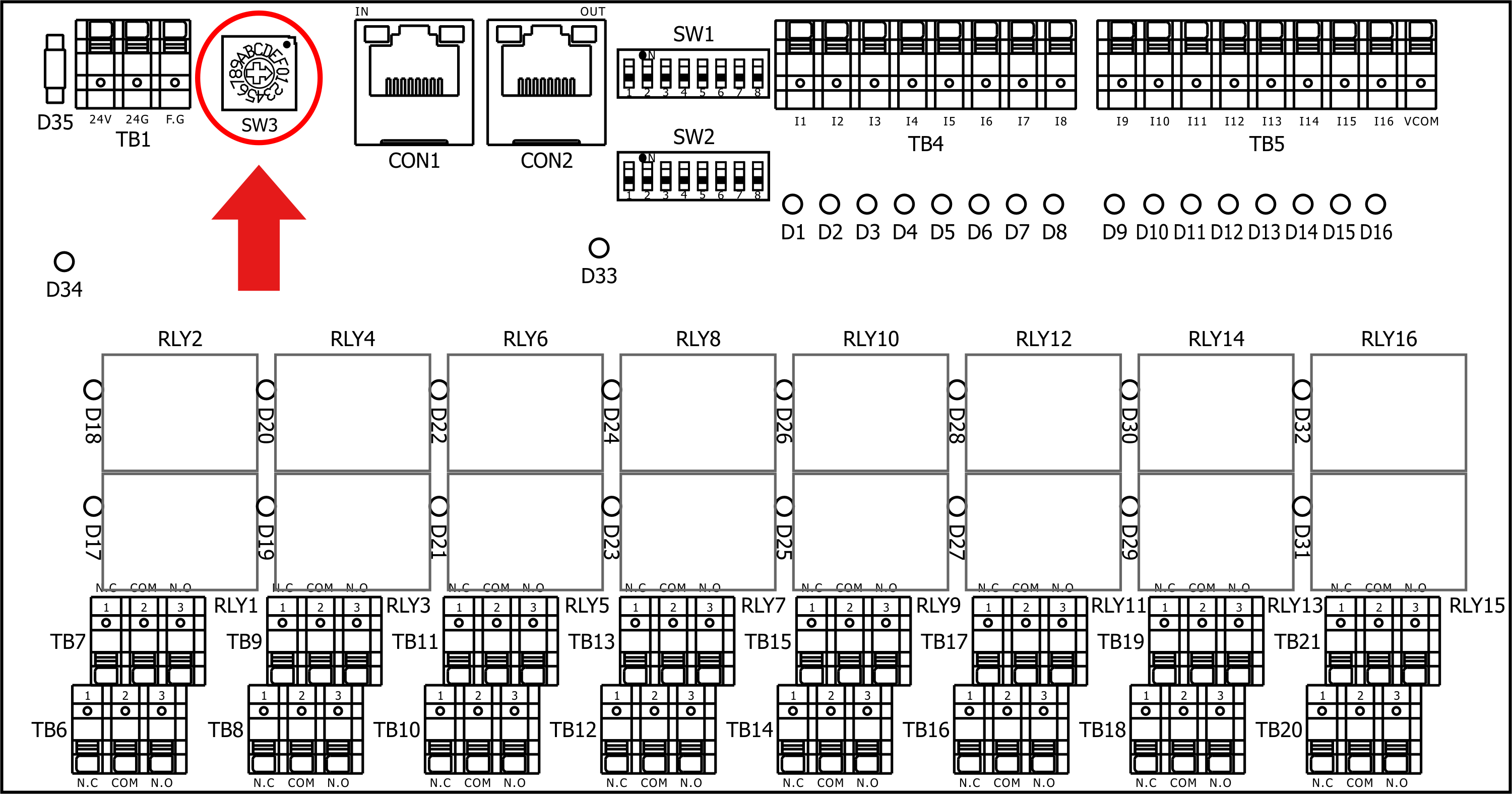

SW3 Placement Drawing
