2.5.3 TB6~TB21: Output Terminal

TB6~TB21 are 16 standard reed relays connect via A, B, COM connection point. The capacity of each relay is DC 30V 6A. Each output point got a corresponding LED indicator. When the relay got power passing through its corresponding LED will light up.

Output terminal	TB7	TB9	TB11	TB13	TB15	TB17	TB19	TB21
Output point	O2	O4	O6	O8	O10	O12	O14	O16
Corresponding LED indicator	D18	D20	D22	D24	D26	D28	D30	D32

Output terminal	TB6	TB8	TB10	TB12	TB14	TB16	TB18	TB20
Output point	O1	O3	O5	O7	O9	O11	O13	O15
Corresponding LED indicator	D17	D19	D21	D23	D25	D27	D29	D31

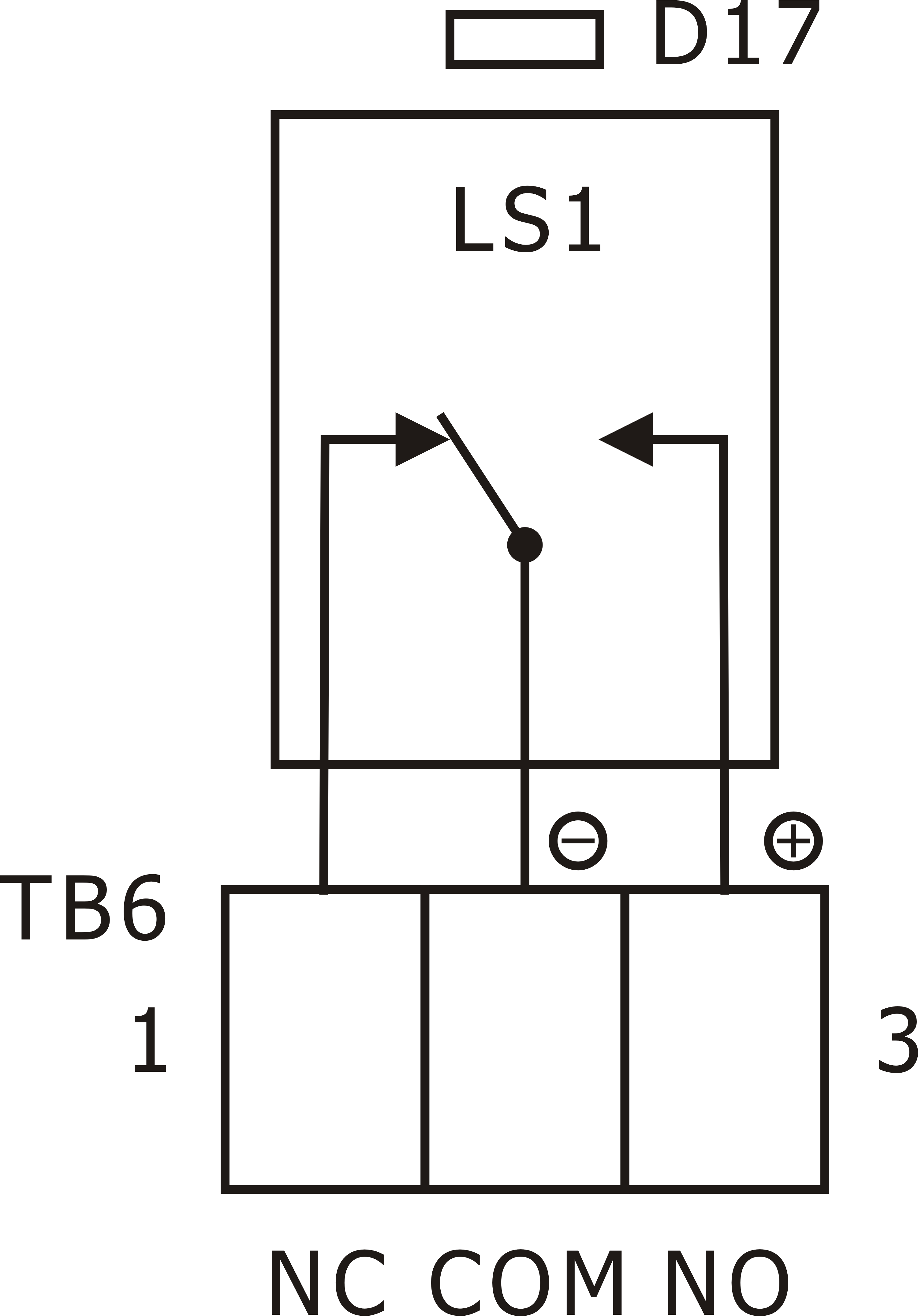

TB6~TB21 Output Point

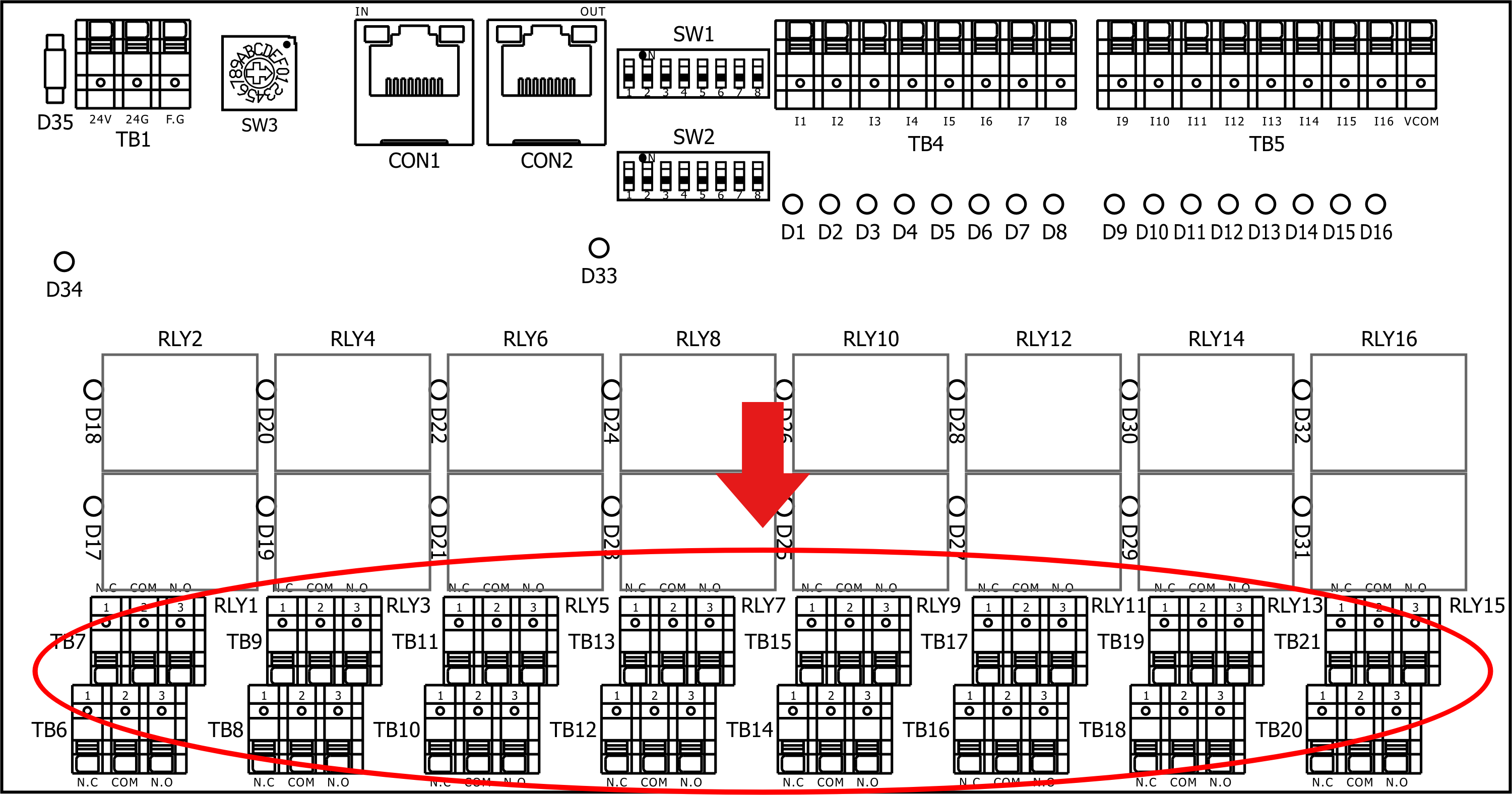

TB6~TB21 Placement Picture

B C A Connection Point
