2.6.3 SW1: ENU Address Setting
The SW1 rotary switch upon the ENU unit, is to set the ENU unit's address. The rotary switch setting upon 0~F scale represent ENU, the first unit~ sixteen unit I/O.
Please be aware: ENU and CNC controller I/O increase unit EQU together use 16 I/O addresses. It cannot have two devices setting to the same location.
SW1 rotary switch setting |
I/O unit |
Corresponding PLC resource |
|
Unit 1 |
Input point plc.gdi[0].bit.bit00~0f Output point plc.gdo[0].bit.bit00~0f |
|
Unit 2 |
Input point plc.gdi[1].bit.bit00~0f Output point plc.gdo[1].bit.bit00~0f |
|
Unit 3 |
Input point plc.gdi[2].bit.bit00~0f Output point plc.gdo[2].bit.bit00~0f |
|
Unit 4 |
Input point plc.gdi[3].bit.bit00~0f Output point plc.gdo[3].bit.bit00~0f |
|
Unit 5 |
Input point plc.gdi[4].bit.bit00~0f Output point plc.gdo[4].bit.bit00~0f |
|
Unit 6 |
Input point plc.gdi[5].bit.bit00~0f Output point plc.gdo[5].bit.bit00~0f |
|
Unit 7 |
Input point plc.gdi[6].bit.bit00~0f Output point plc.gdo[6].bit.bit00~0f |
|
Unit 8 |
Input point plc.gdi[7].bit.bit00~0f Output point plc.gdo[7].bit.bit00~0f |
|
Unit 9 |
Input point plc.gdi[8].bit.bit00~0f Output point plc.gdo[8].bit.bit00~0f |
|
Unit 10 |
Input point plc.gdi[9].bit.bit00~0f Output point plc.gdo[9].bit.bit00~0f |
|
Unit 11 |
Input point plc.gdi[10].bit.bit00~0f Output point plc.gdo[10].bit.bit00~0f |
|
Unit 12 |
Input point plc.gdi[11].bit.bit00~0f Output point plc.gdo[11].bit.bit00~0f |
|
Unit 13 |
Input point plc.gdi[12].bit.bit00~0f Output point plc.gdo[12].bit.bit00~0f |
|
Unit 14 |
Input point plc.gdi[13].bit.bit00~0f Output point plc.gdo[13].bit.bit00~0f |
|
Unit 15 |
Input point plc.gdi[14].bit.bit00~0f Output point plc.gdo[14].bit.bit00~0f |
|
Unit 16 |
Input point plc.gdi[15].bit.bit00~0f Output point plc.gdo[15].bit.bit00~0f |
SW1 ENU Address Setting

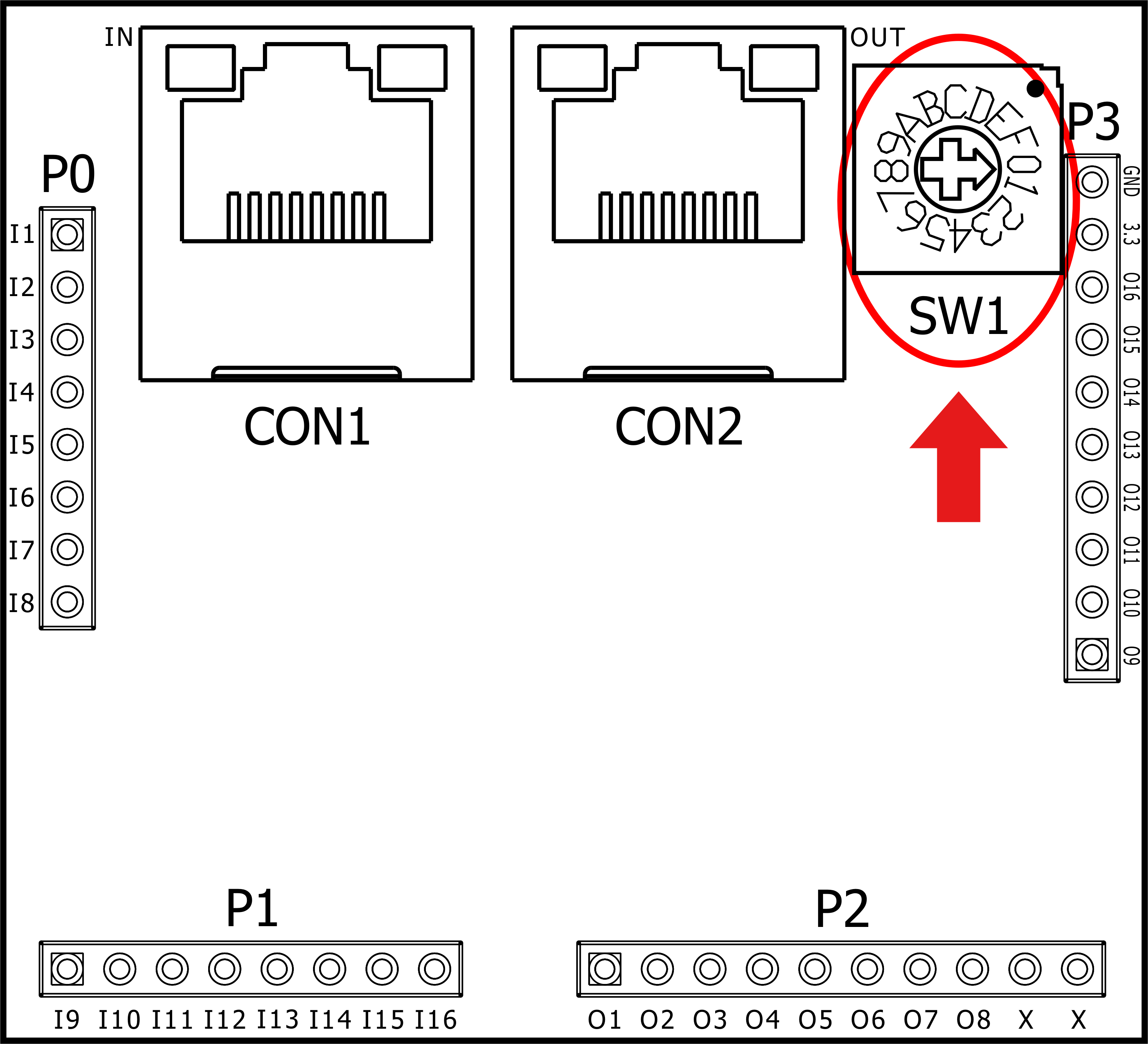

SW1 Placement Drawing
