2.7.1 TB1: Power Terminal
Power terminal provide EKU DC 24V power, while connecting power, please use the same power supplier with ECU. Before sending power, please first make sure, the power voltage and negative and positive pole to be corrected.
Pin |
24V |
24G |
F.G |
Explain |
DC 24V power positive pole "+" input |
DC 24V power negative pole "-" input |
Ground protection through ground screw cable to electrical box, to copper plate |

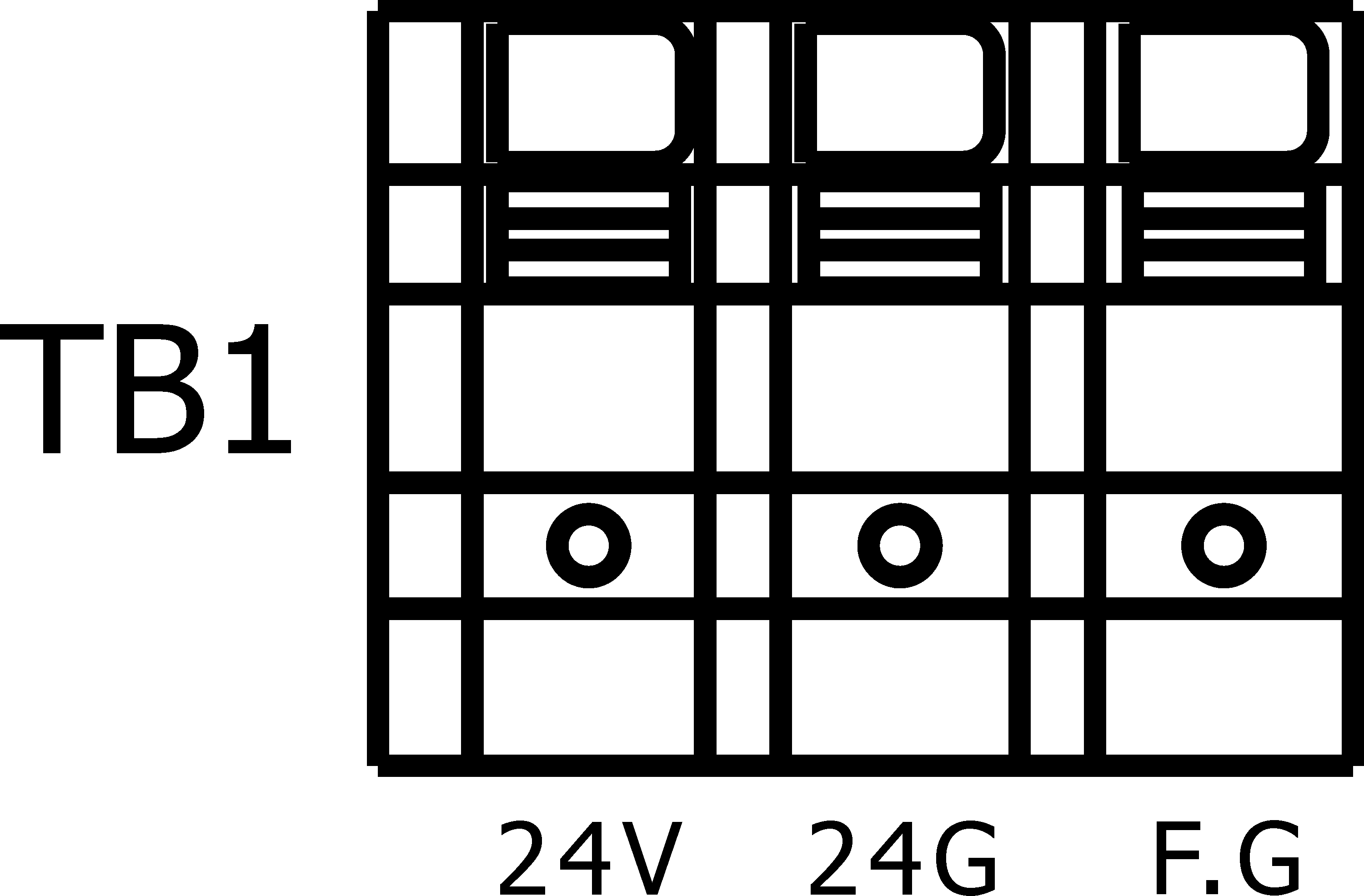

TB1 Power Terminal

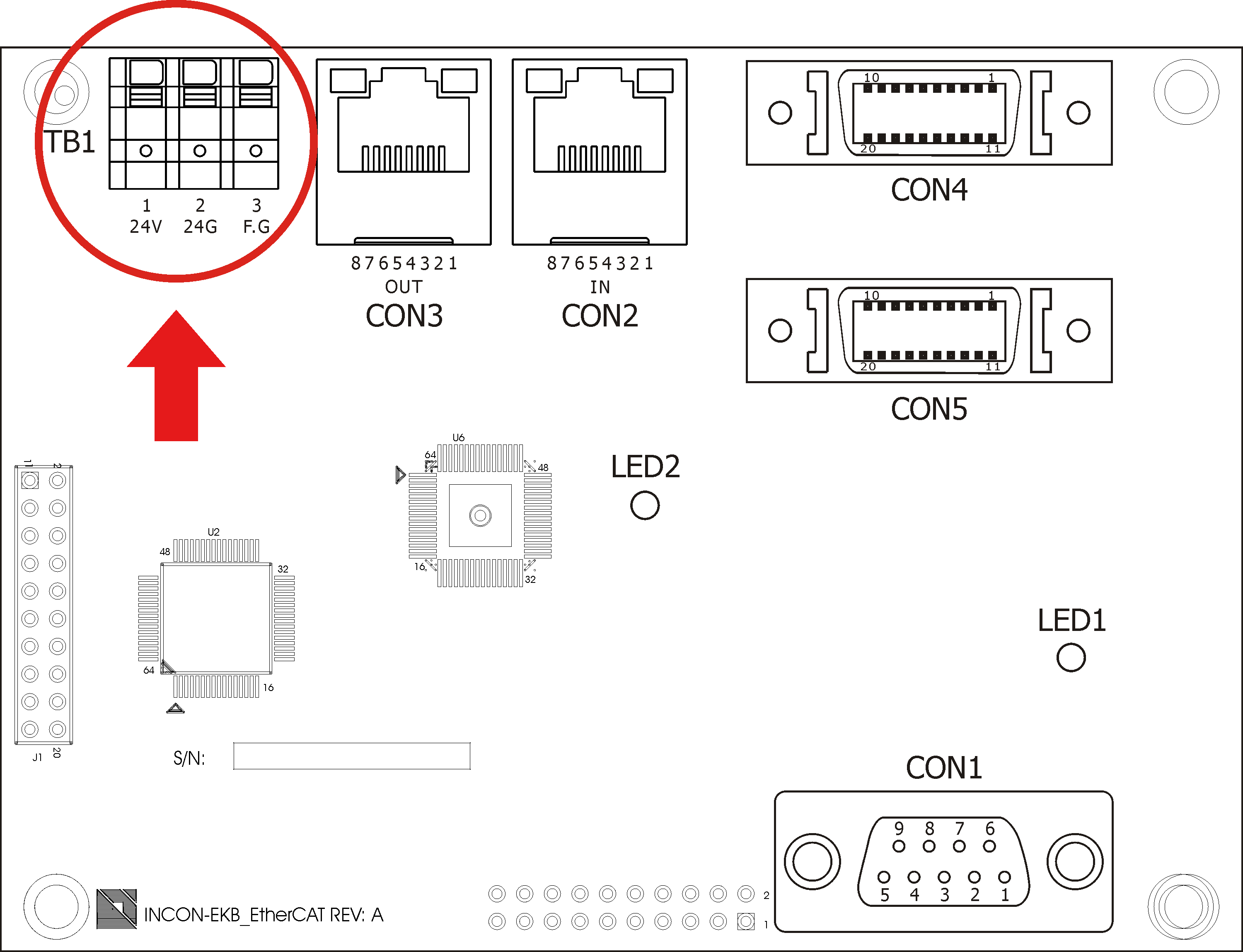

TB1 Placement Drawing
