2.7.2 CON2, CON3: EtherCAT Ethernet Communication Connector


  • CON2：EtherCAT cable IN

Connect to the previous EtherCAT device.


  • CON3：EtherCAT cable OUT

Connect to the next EtherCAT device.


CON2, CON3 EtherCAT Ethernet Communication Connectors

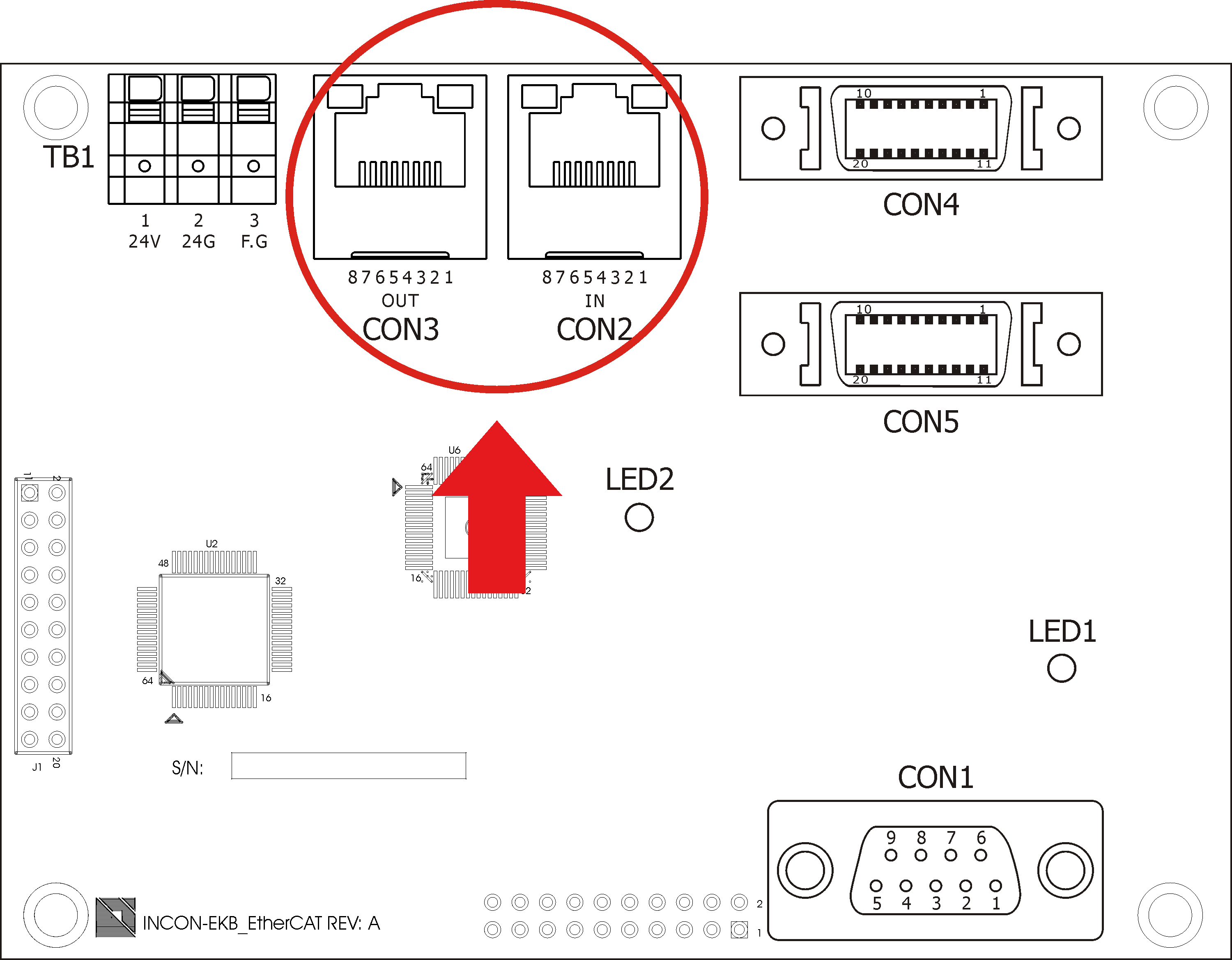

CON2, CON3 Placement Drawing
