3.12.1 Axis [ Advanced ]

Choose "Axis", will see X axis, Y axis, Z axis, A xis (B axis, C axis) prompt out of axis menu. Use the up and down key to choose your desire axis, then press ENTER key to open the advance axis parameter setting dialog box. This dialog box provides machine manufacture and each axis relevant encoder mode acceleration and deceleration.

Note:

INCON-M84 has only X axis, Y axis, Z axis, C axis; INCON-M86/M86R has X axis, Y axis, Z axis, A axis, B axis, C axis.

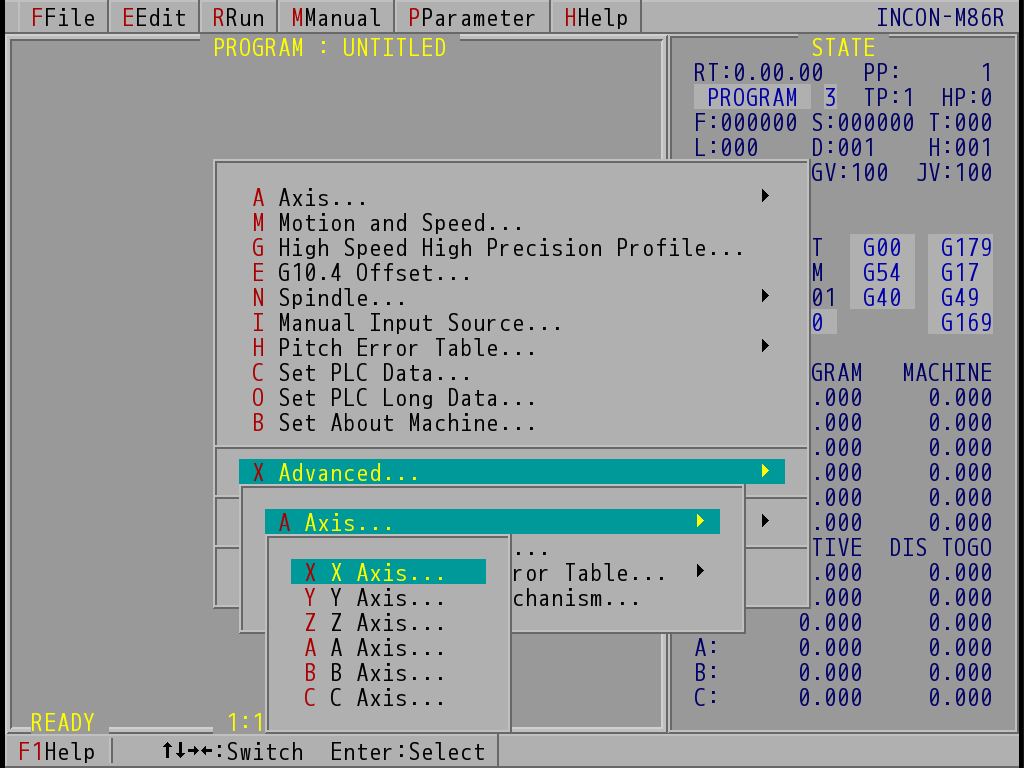

"X Axis [ Advanced ]" Axis Menu (Take INCON-M86R for Example)

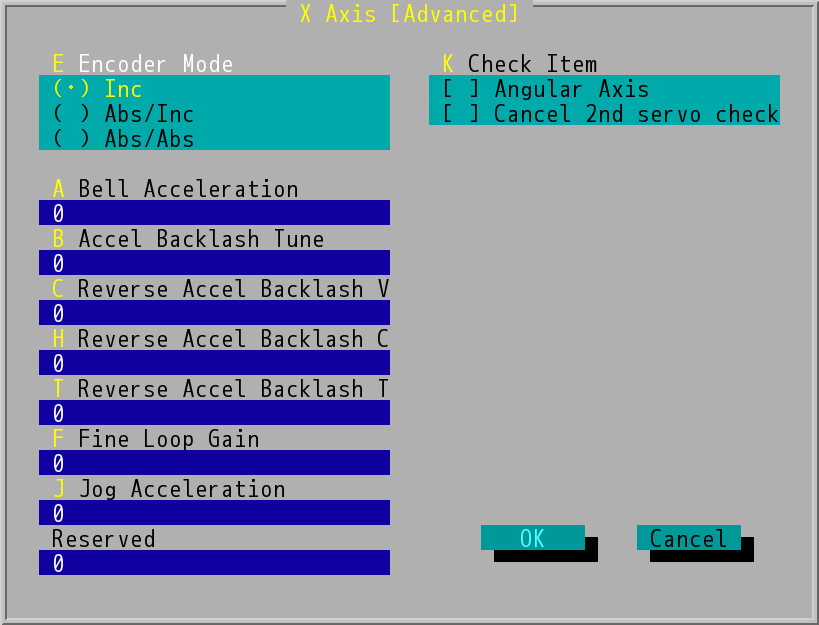

"X Axis [Advanced]" Dialog Box (INCON-M84/M86)

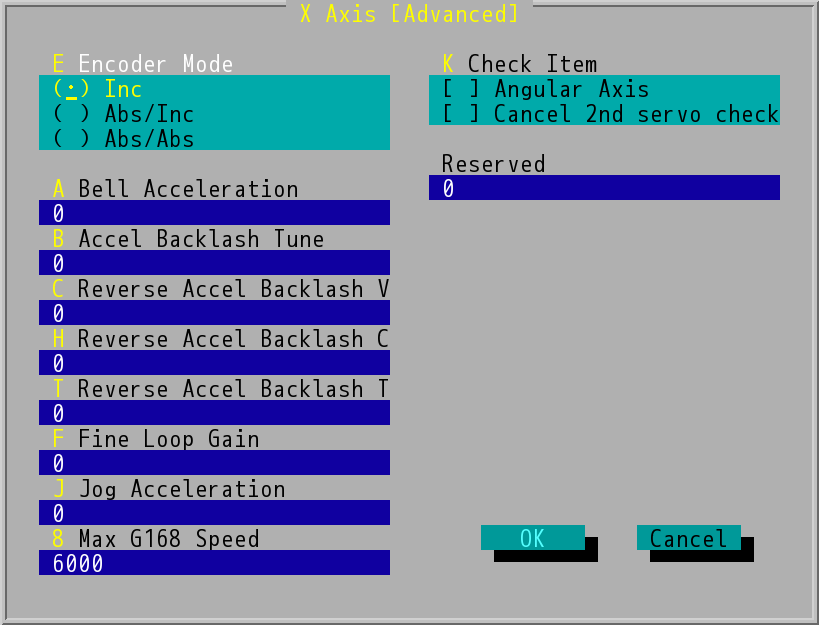

"X Axis [Advanced]" Dialog Box (INCON-M86R)
