3.12.4.1 Type

( ) Table (AB) – Table (C): Select this item, set machine type as formation 0, machine B (A) axis as rotary work table, C axis as rotary work table.
( ) Head (AB) – Table (C): Select this item, set machine type as formation 1, machine B (A) axis as the tilt rotary head of spindle, C axis as rotary work table.
( ) Head (AB) – Head (C): Select this item, set machine type as formation 2, machine B (A) axis as the tilt rotary head of spindle, C axis as rotary carrier of B (A) axis.

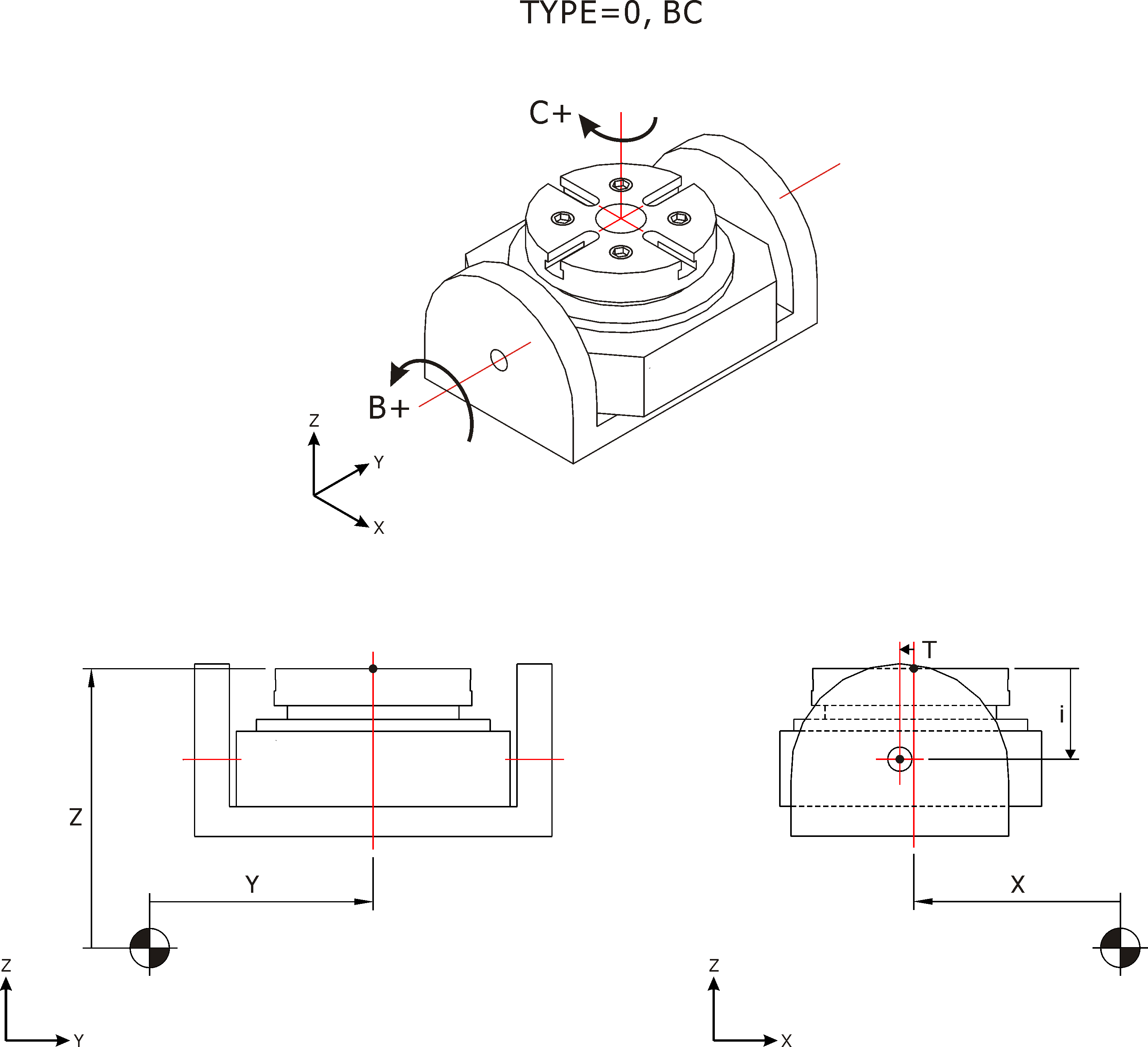

Formation 0 - BC Parameter Setting Reference Drawing

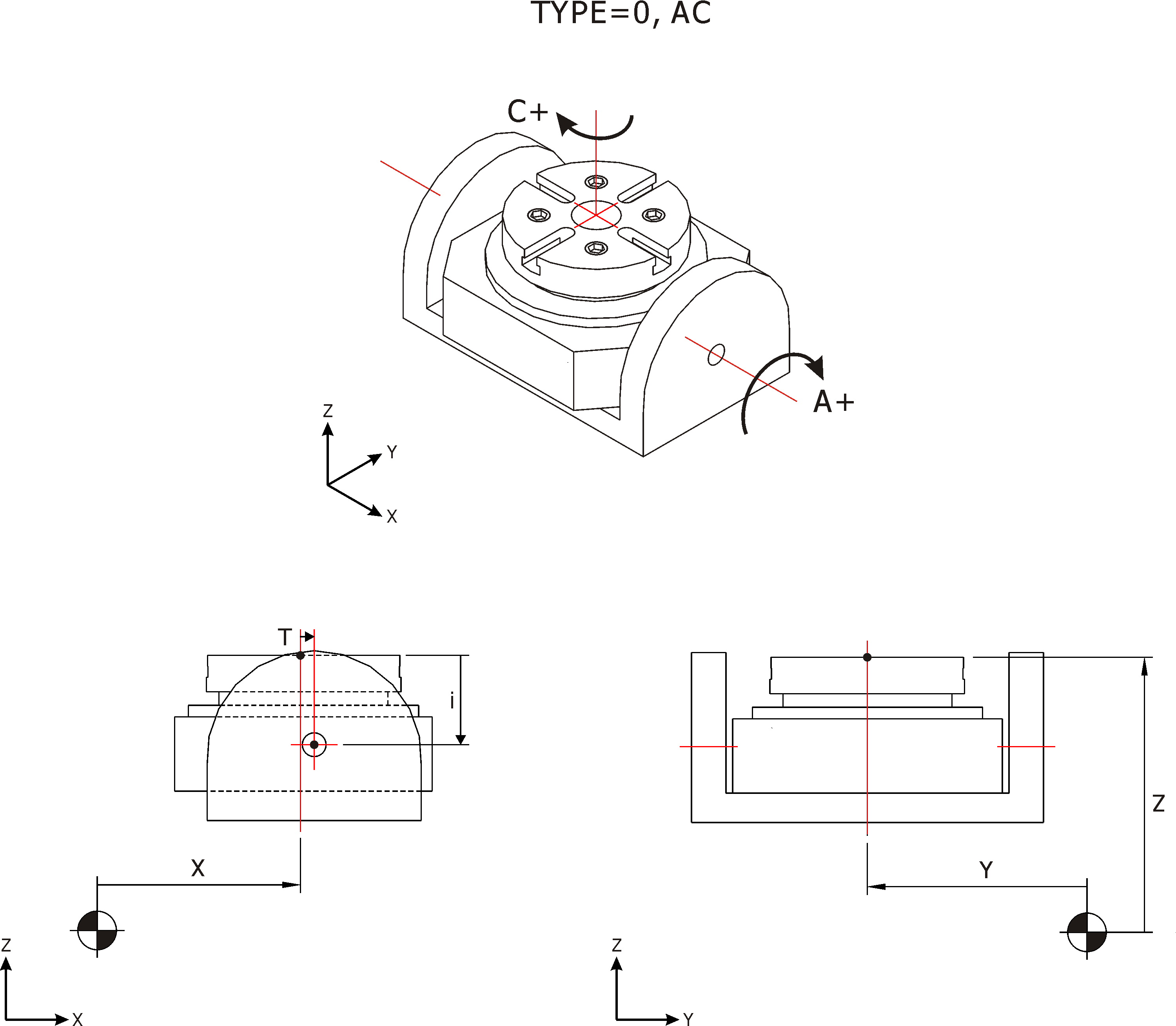

Formation 0 - AC Parameter Setting Reference Drawing

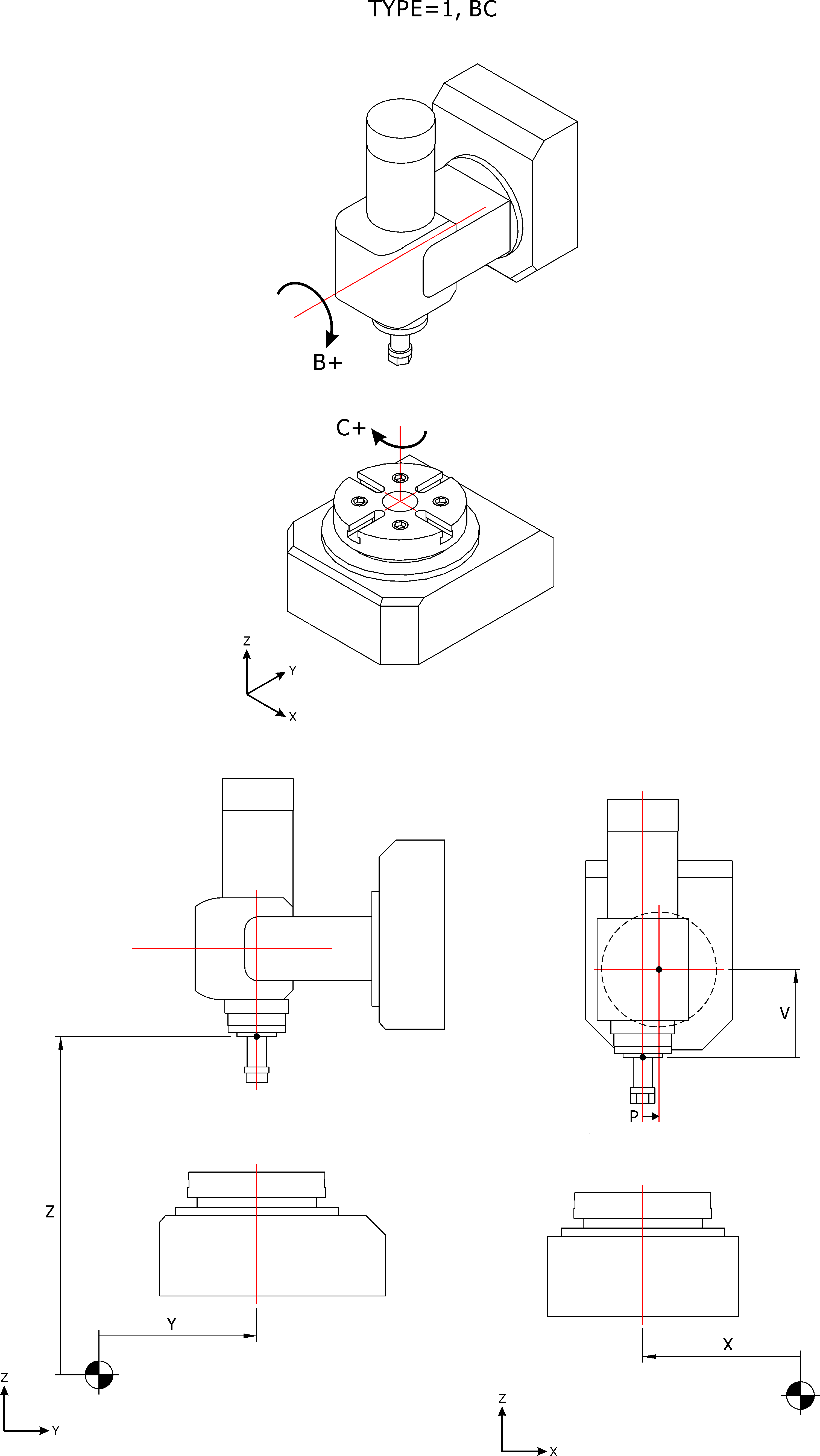

Formation 1 - BC Parameter Setting Reference Drawing

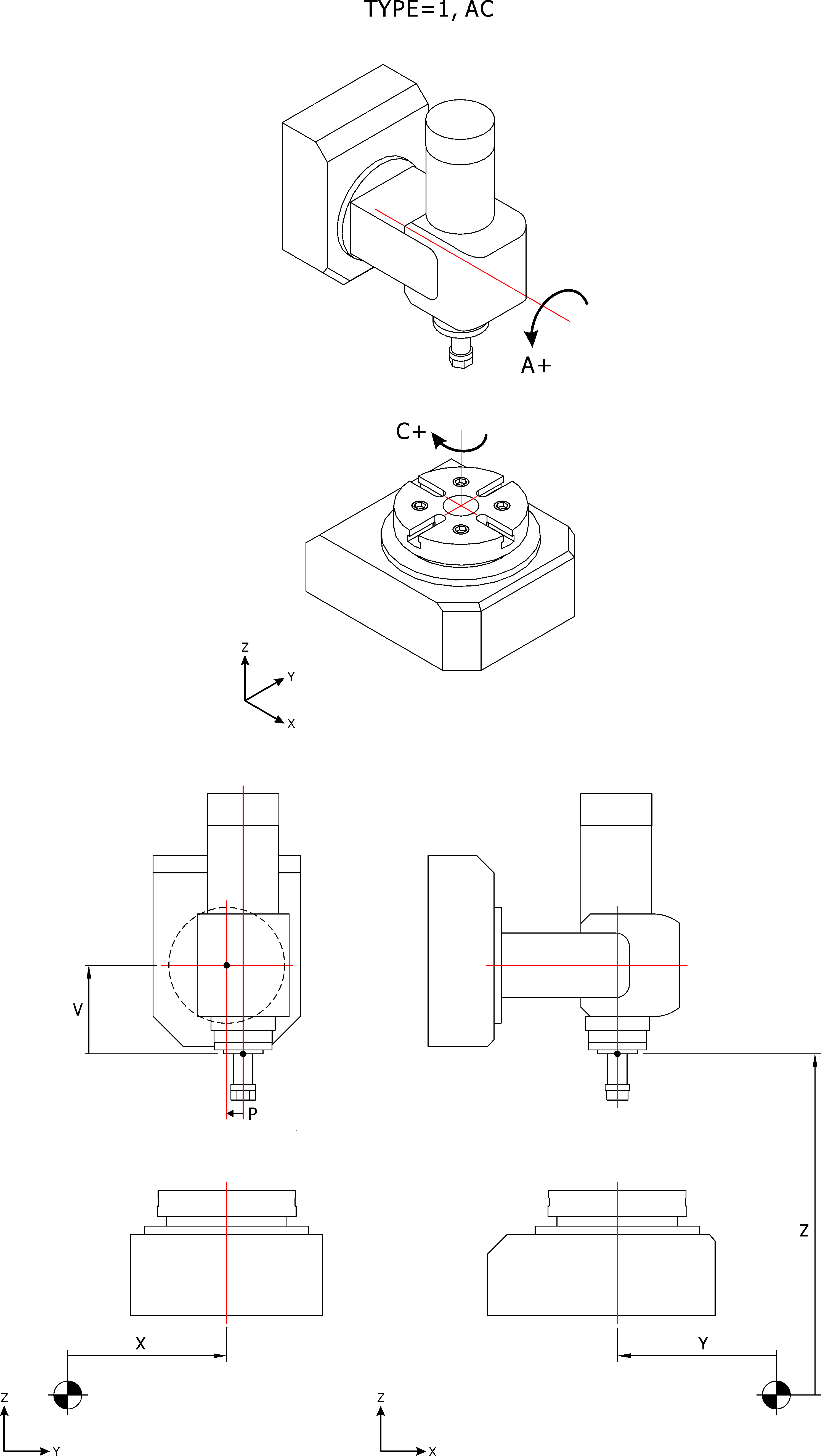

Formation 1 - AC Parameter Setting Reference Drawing

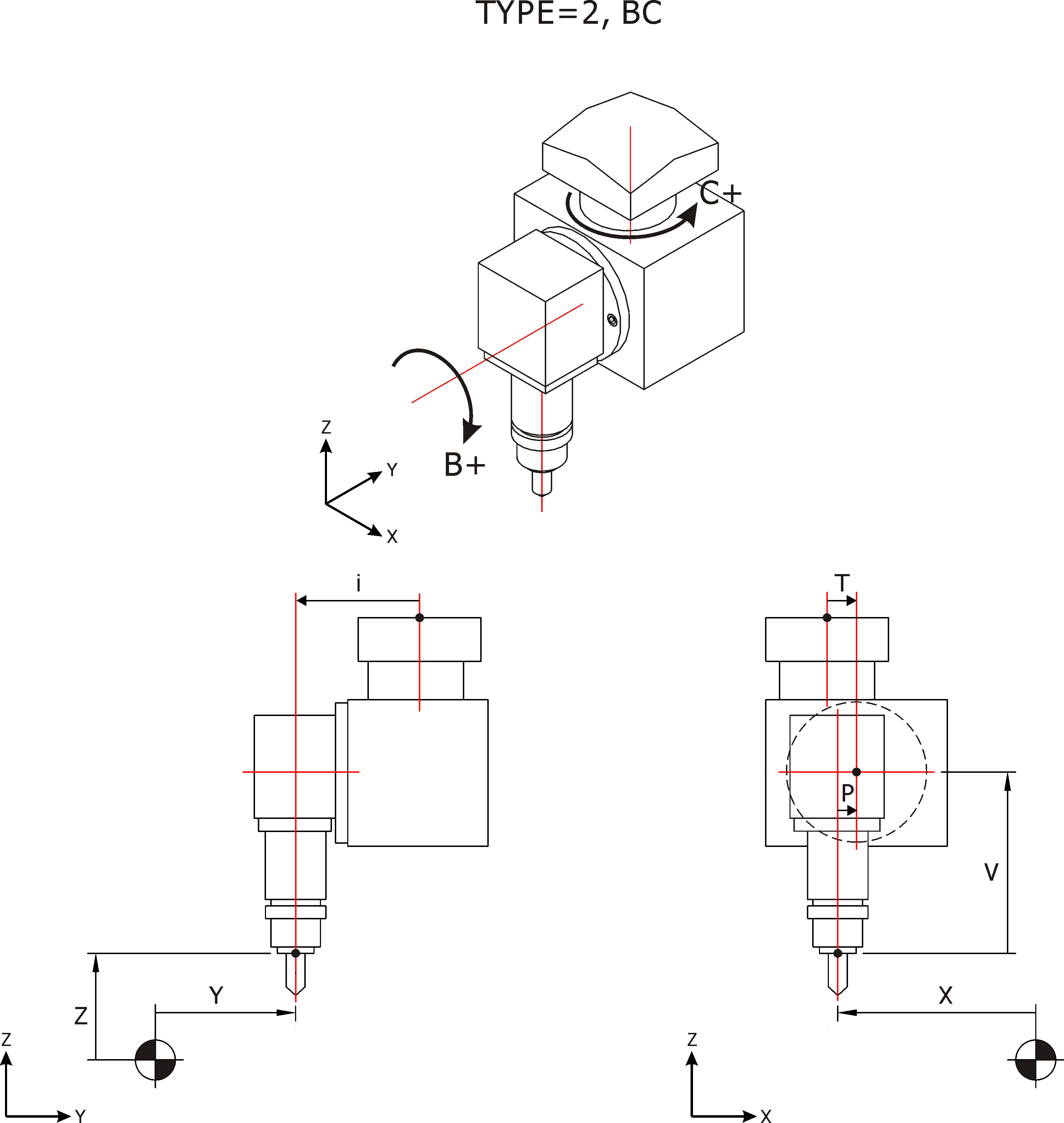

Formation 2 - BC Parameter Setting Reference Drawing

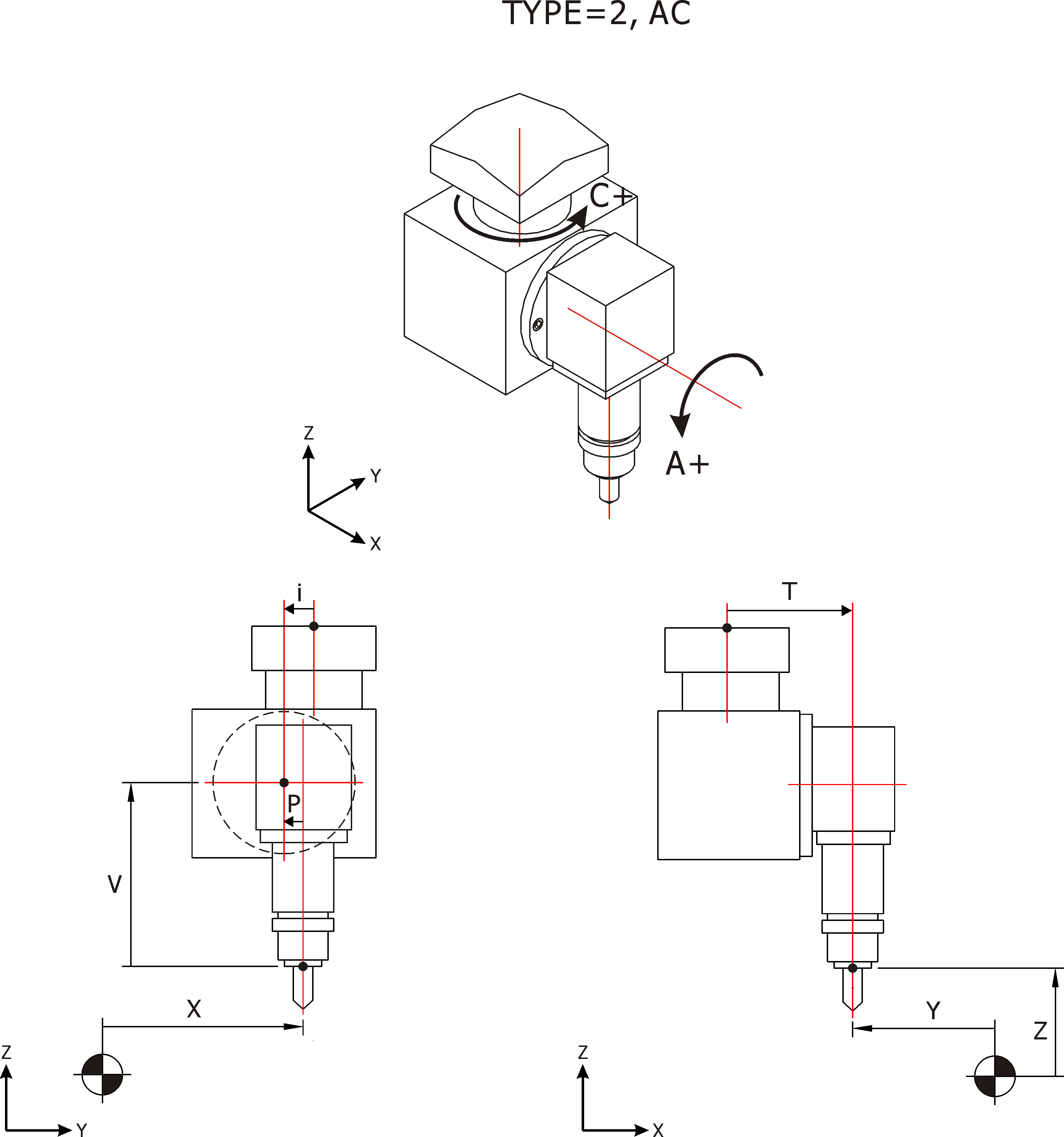

Formation 2 - AC Parameter Setting Reference Drawing
