INCON-M84/M86/M86R Manual

3.13.10 List Machine Parameter

Mechanical parameter archiving is stored in a special format, so the parameter content cannot be opened for viewing on a typical PC. This item opens the "List Machine Parameter" dialog box. After the user enters the file name and presses the ENTER to confirm, the mechanical parameters can be stored in the text file format in the /MSYS subdirectory. The file name of this file is .MLS, and the Chinese code is Big5 code. To print the contents of the mechanical parameter file, you must first transfer the file to the computer using FTP file transfer, and then open and print it with text editing software (For example: Notepad).

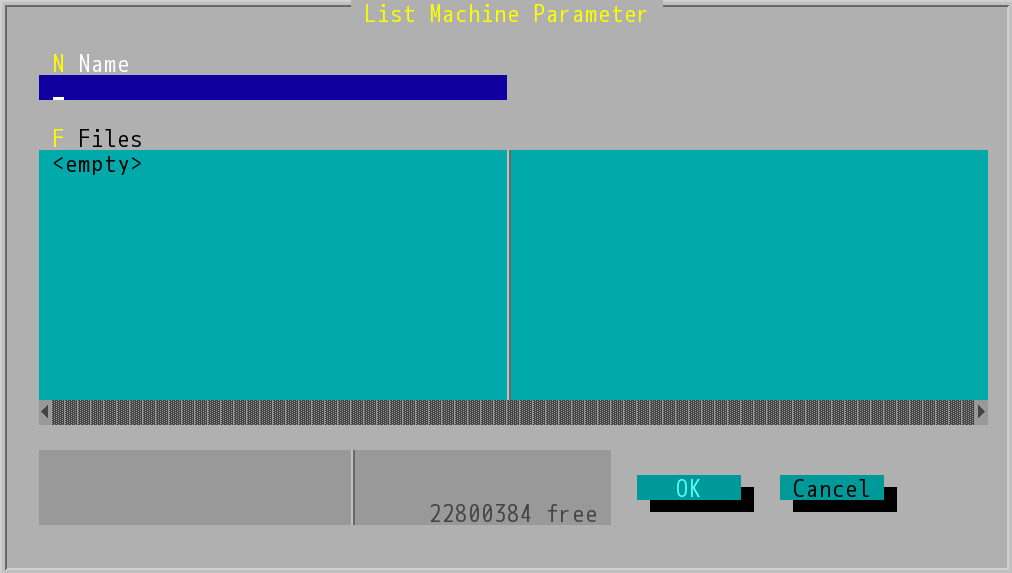

"List Machine Parameter" Dialog Box
