7.1.9 Show Spindle Real Speed
Function explain as following:
(1) |
Plc_sts.h within Status file's newly added long readSpSpeed;. |
(2) |
If CNC controller connects to spindle's encoder, then NC will have encoder's calculated value change to actual spindle speed value (rpm) here readSpSpeed. |
(3) |
The value can be minus. |
(4) |
Afterwards the value will show the status within SDA and SEN value, as shown below: |

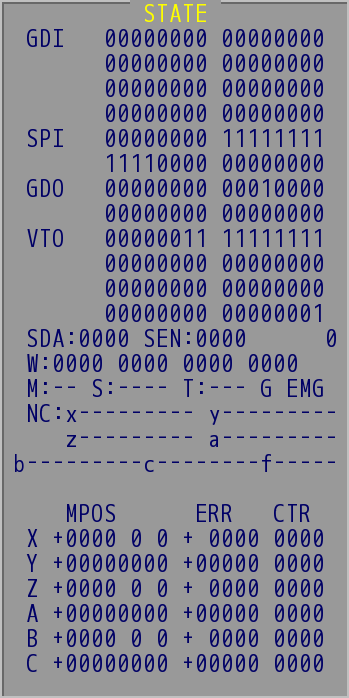

Status Window (Take INCON-M86 for Example)
Note: |
About PLC signal detail explain please reference INCON-M84/M86/M86R PLC Manual. |
