3.5.1.6 Max G60 Turn Angle
Refers to the angle between two adjacent paths, in G60 mode, do not perform the in-position check. However, when the angle between the two moving paths is greater than the setting of this parameter, the in-position check will still be performed so that the processing of the larger corner will not be distorted due to the non-performing in-position check to ensure the acute angle of the workpiece as shown in the following figure. If this maximum G60 rotation value is set to "0", the in-position check will not be performed.

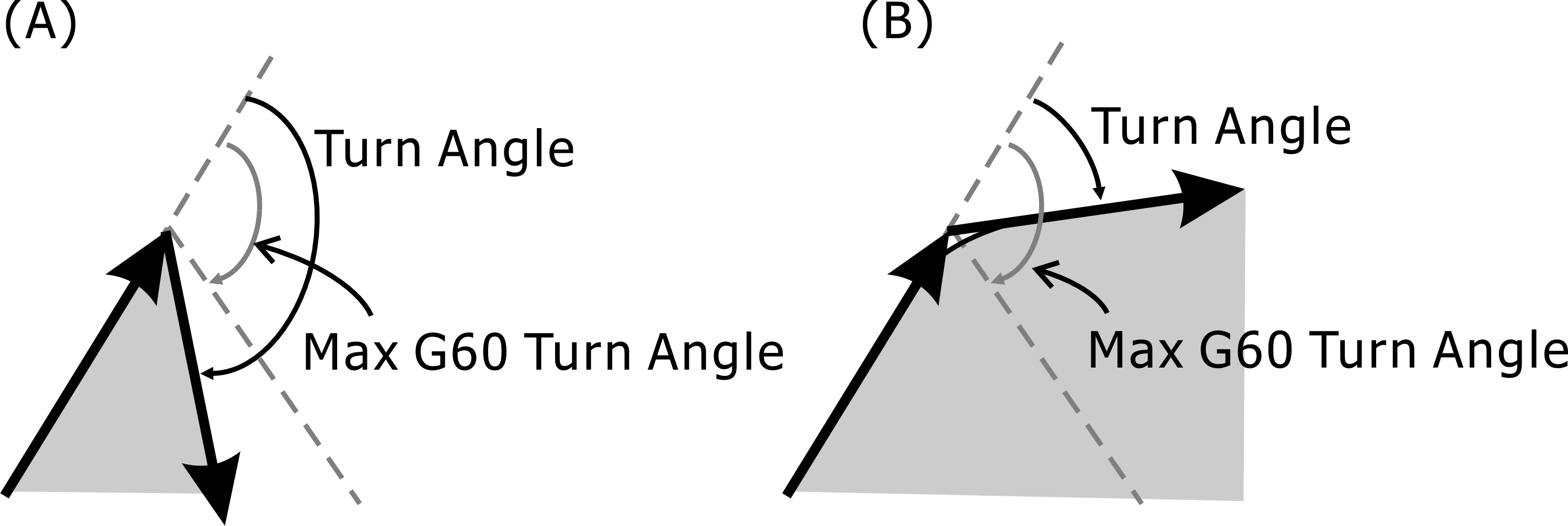

(A) Turn Angle > Max G60 Turn Angle, (B) Turn Angle < Max G60 Turn Angle
