2.2.2 NET Connector

NET connector is the RJ45 connector that is label "NET" (first generation host) and "Ethernet" (second generation host) on the panel and through HUB network, it can connect to computer. When using ECU unit as server, and using computer as client to connect to FTP, it can send CNC program or CNC controller system surviving file. S system (open CNC) and client (front computer) can connect and communicate. (communication protocol is INTEK Technology communication protocol, please reference IClient manual)

First generation host:

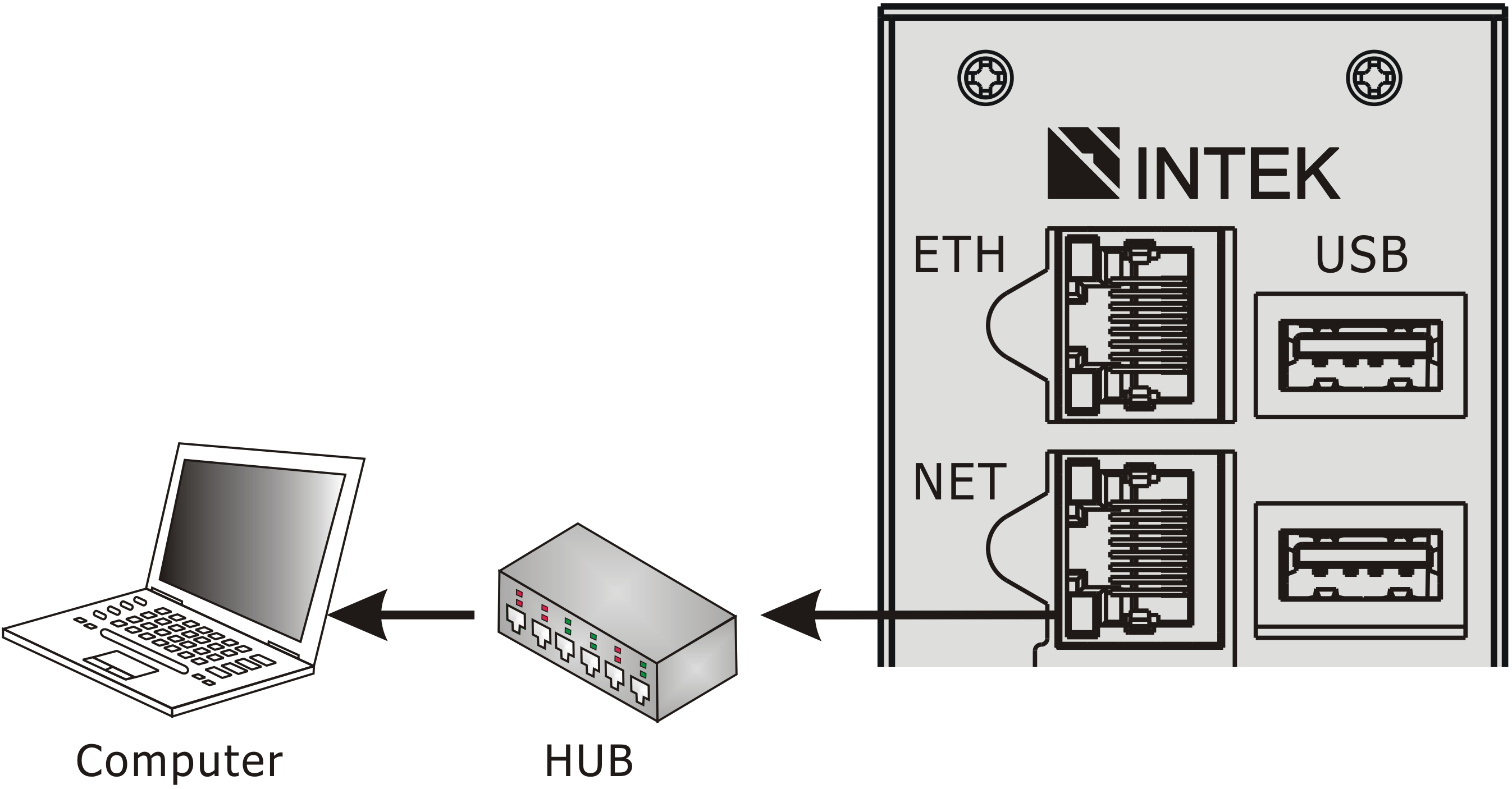

First Generation Host: NET Connector

Second generation host:

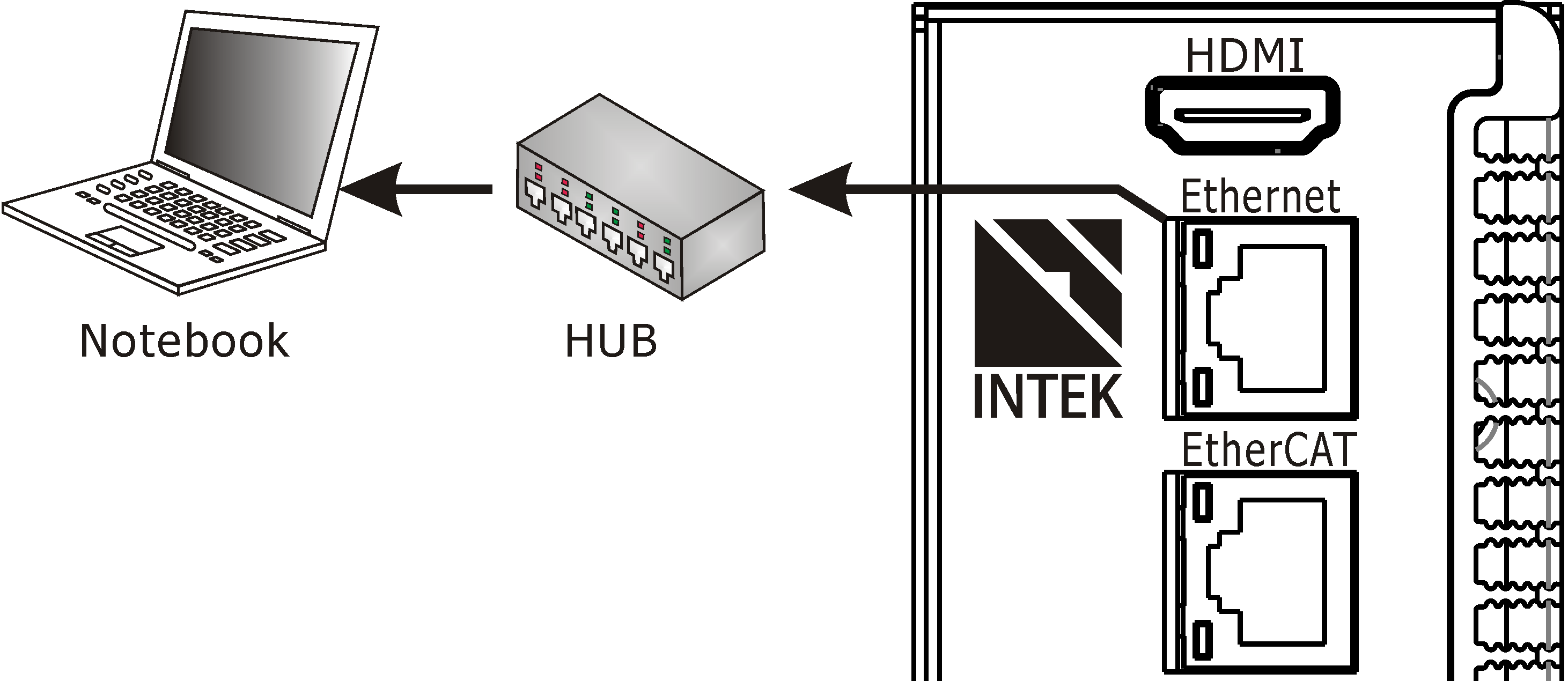

Second Generation Host: NET Connector
