2.8.1.2.2 CON2, CON3: EtherCAT Ethernet Communication Connector


  • CON2:EtherCAT cable IN

Connect to the previous EtherCAT device.

  • CON3:EtherCAT cable OUT

Connect to the next EtherCAT device.

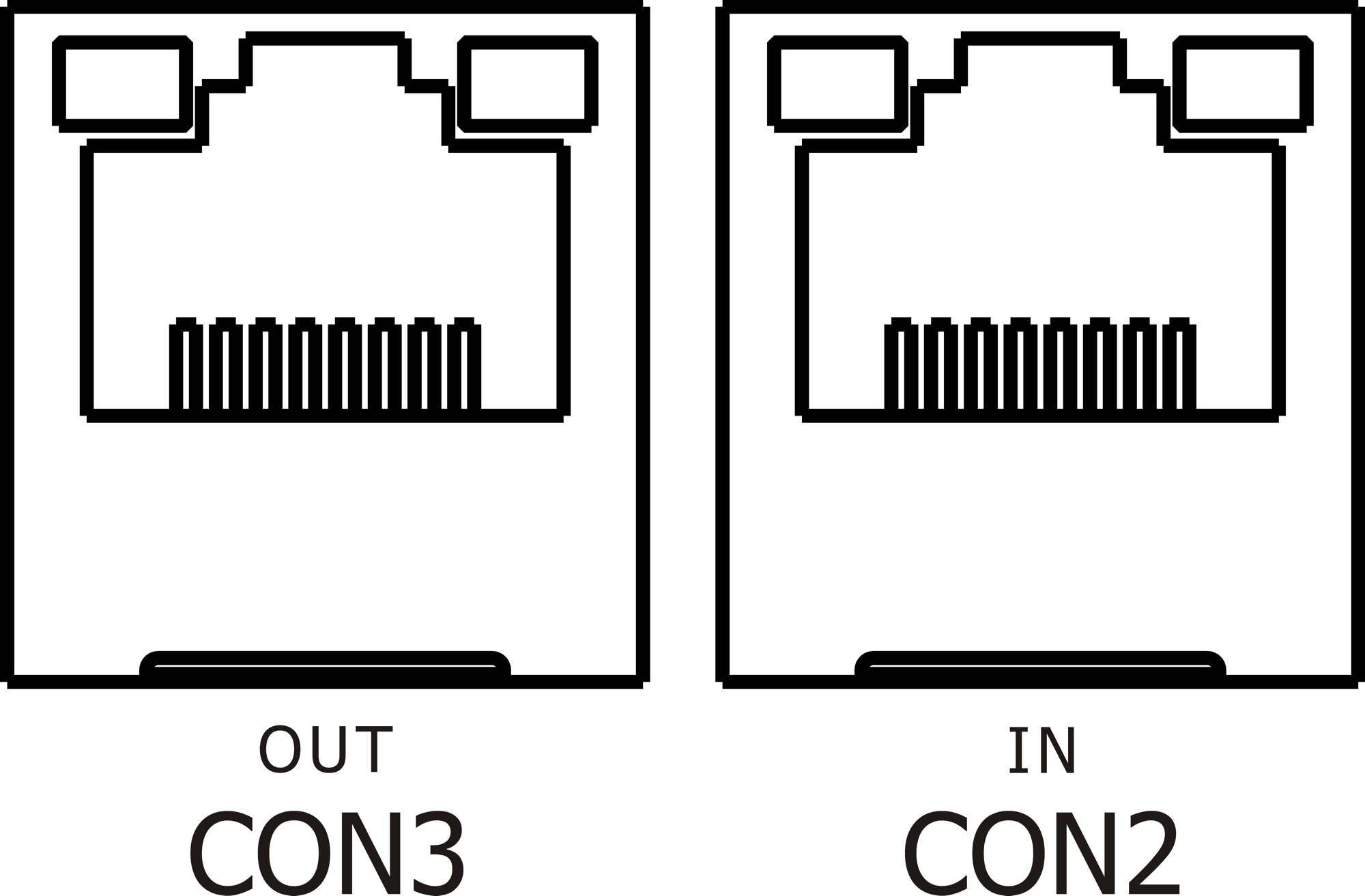

CON2, CON3 EtherCAT Ethernet Communication Connectors

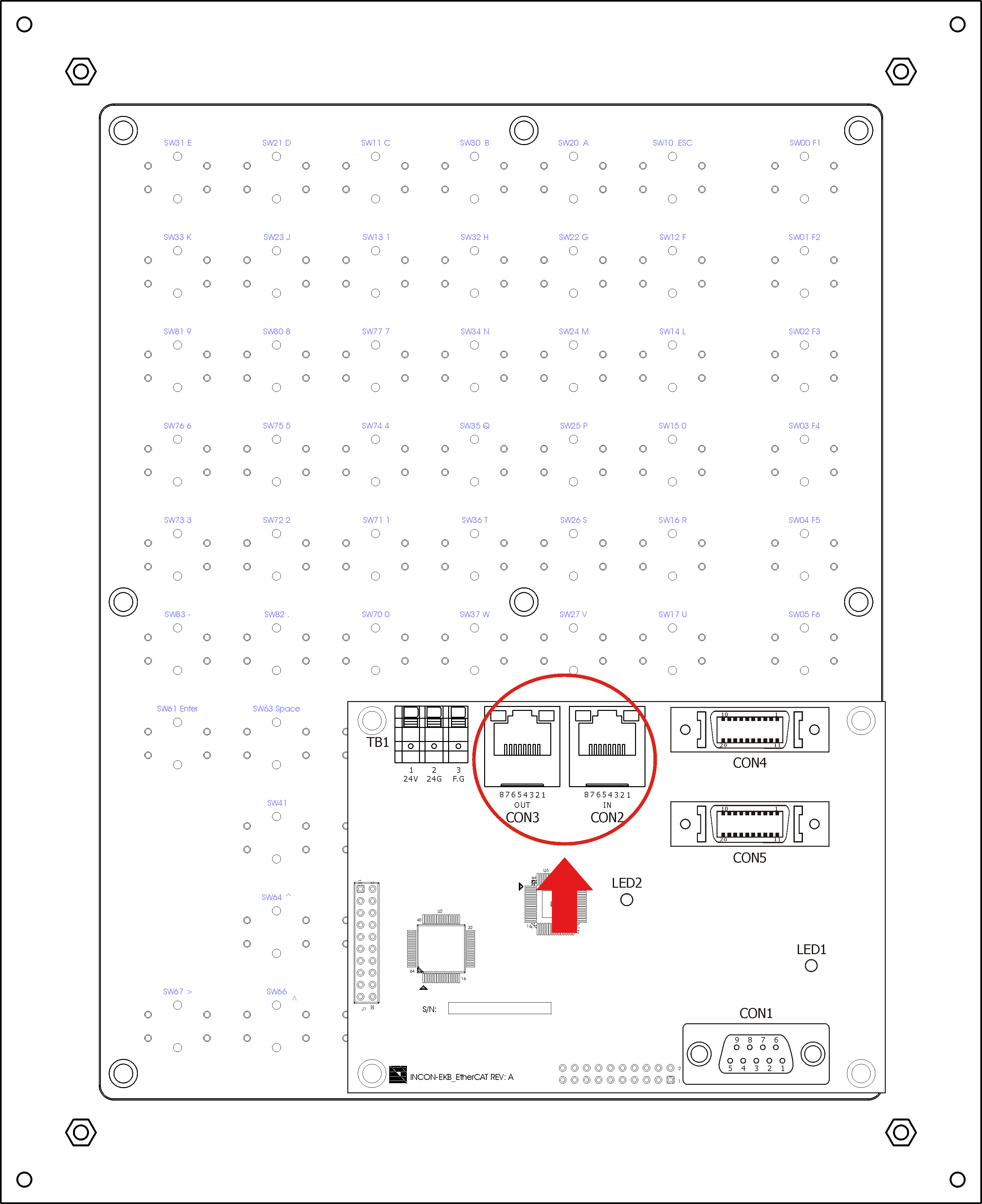

CON2, CON3 Placement Drawing
