3.13.3 Management
Through "System Management→Management" can open "Management" dialog box:

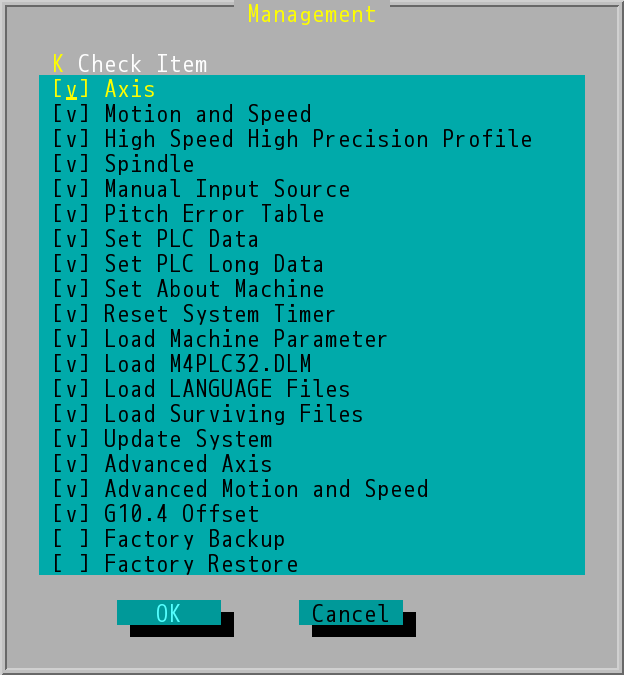

"Management" Dialog Box (INCON-M84)

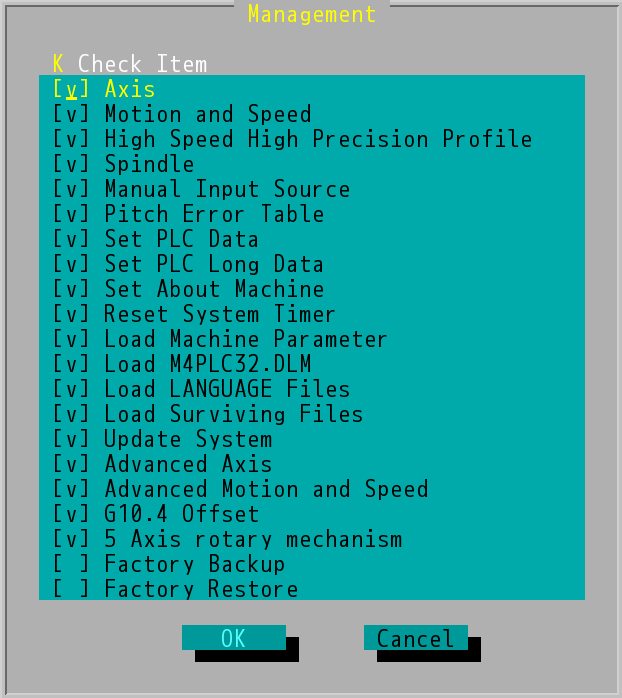

"Management" Dialog Box (INCON-M86)

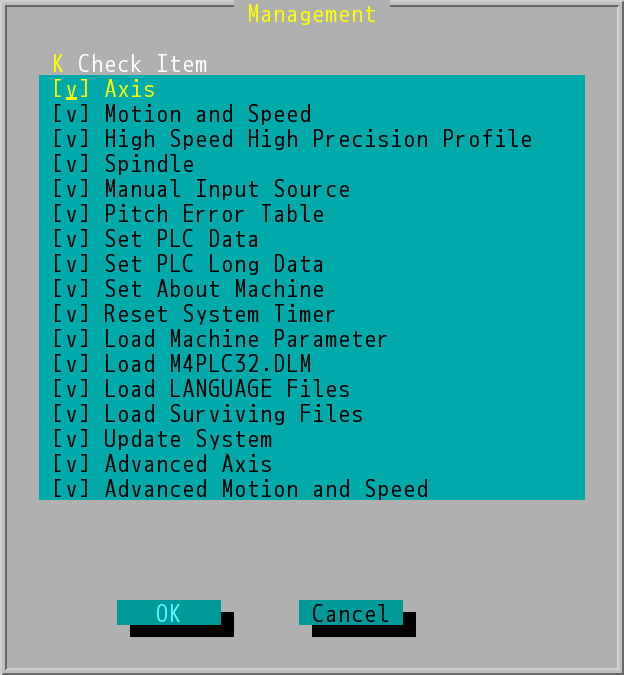

"Management" Dialog Box (INCON-M86R)
CNC pre-set status got everything selected, so, the first time opening the CNC controller, after entering level 3 security clearance area, the machine parameter can see all the selected items, machine manufacturer can according to need make changes and chose item that only require level 2 clearance. In regards to safety level please refer to Safety Level.
