3.13.6 Reset Axis Absolute Encoder Data
When the controller is in the Abs/Abs mode, in order to reset the absolute position of the axis, in addition to executing the M code to reset the absolute position in the servo drive, the absolute position saved in the controller must also be reset.
The steps to reset the axial absolute encoder data in the controller are as follows:
1. |
Move the axial direction from the negative direction to the positive direction to the mechanical zero point. |
2. |
Go to "Machine Parameter→System Management→Reset Axis Absolute Encoder Data". |
3. |
Use the up and down keys to select the axis to reset the absolute position and press ENTER to confirm. |

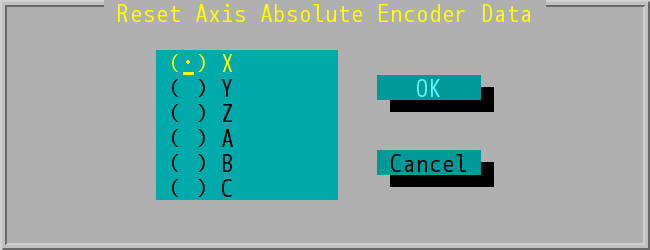

"Reset Axis Absolute Encoder Data" Dialog Box
