4.1.22 The Requirement of Tool Magazine
The magazine is a row cutter structure with a total of 16 toolholder addresses (as shown below). ΔX and ΔY are stored in PLC parameters by actual measurement; T1 mechanical position actual measurement is stored in PLC parameters.
Tool magazine Arbor Structure Top View Diagram

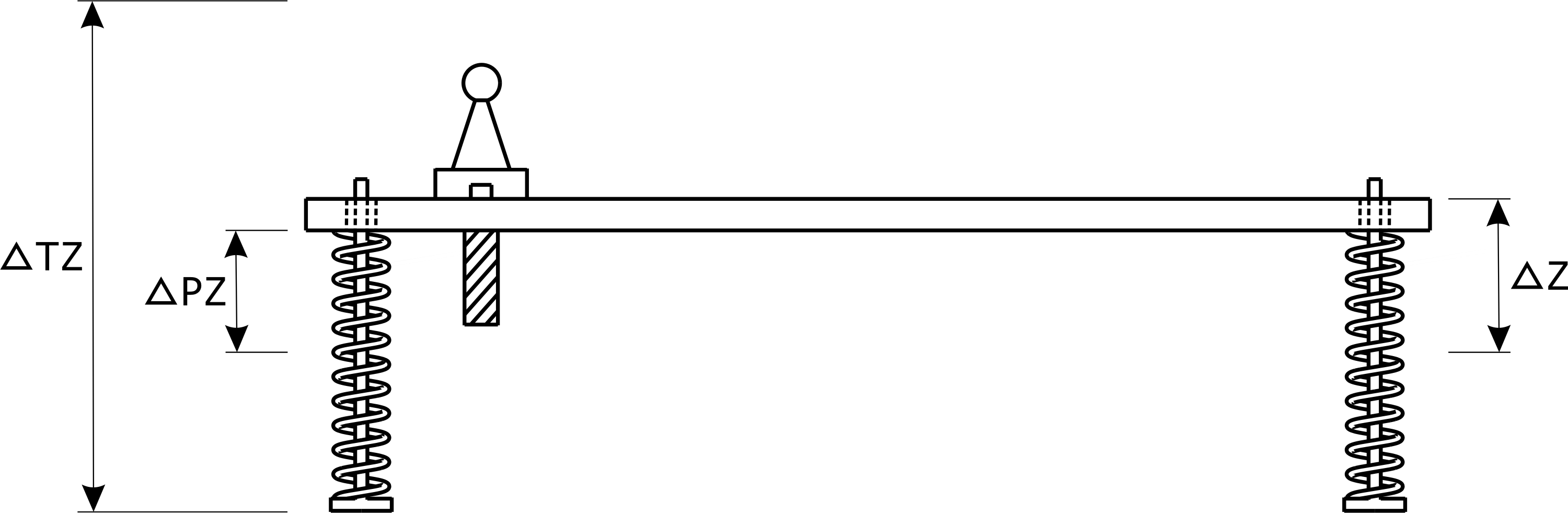

Tool magazine Arbor Structure Side View Diagram
Each magazine has an empty tool detection and the controller can detect the empty knife. ΔTZ, ΔPZ, ΔZ are stored in the actual measurement parameters of the PLC (as shown above).
