3.3.15 DNC M30 Nonstop


This function is a bi stable switch that changes only the role of "M30" in the system state display area on or off. Under normal circumstances (that is, "M30" in state window is highlighted), the program execution M30 will stop execution.


When this item is selected, M30 in state window will not be highlighted. In this case, DNC will continue executing the program when it is executed to M30. The user can click "Run→DNC" to open the "Run File List" dialog box. At this point, use the arrow keys (↑, ↓, ←, →) and press the INS key to select and add the file to be executed. If the selection is finished, press the ESC key to leave and return to the "Run File List" dialog box. Press DEL Delete the selected file in the list.

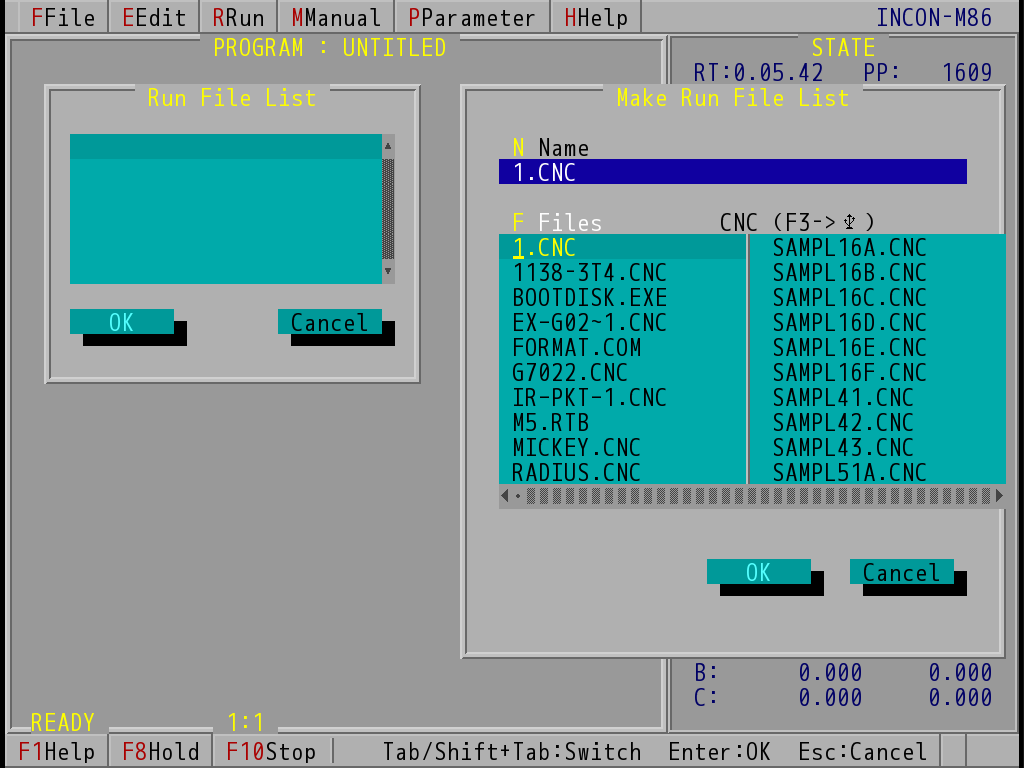

"Run→DNC" Dialog Box (Take INCON-M86 for Example)
