INCON-M84/M86/M86R Manual

3.5.17.1 Tool Life Table

This item has been selected will pop out "Tool Life Table" dialog box as below, total 1000 sets feed length and spindle time of tool on dialog box. Feed length is tool cutting length, and the unit is m; spindle time is total time since start, and the unit is sec. The tool will wear off during cutting, and too much tool wear off makes it impossible for cutting. Tool life table provides feed length and spindle time to record each tool status for tool management.

The setting value will reset to zero when tool has been changed, feed length is setting by PLC M code, and PLC counts feed length and sends message for user to change tool.

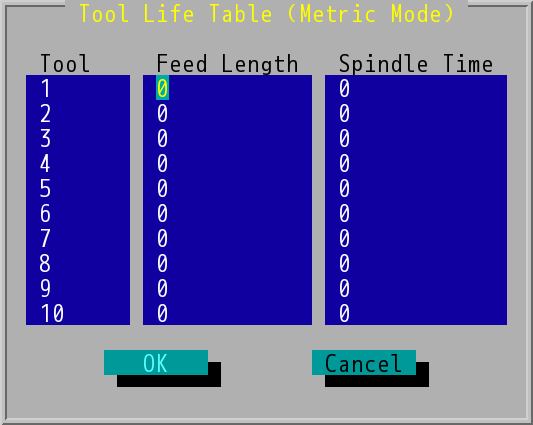

"Tool Life Table" Dialog Box
