3.14.2 Safety Level 2

Press CTRL+F7 the "Check Password" dialog box would appear. Enter safety level 2 password to enter safety level 2 menu. It will now show the safety level 3 machine parameter menu's "System Management→Management" present machine parameter, as shown below. If you want to exit safety level 2 and return to safety level, choose the last option of "Log Out".

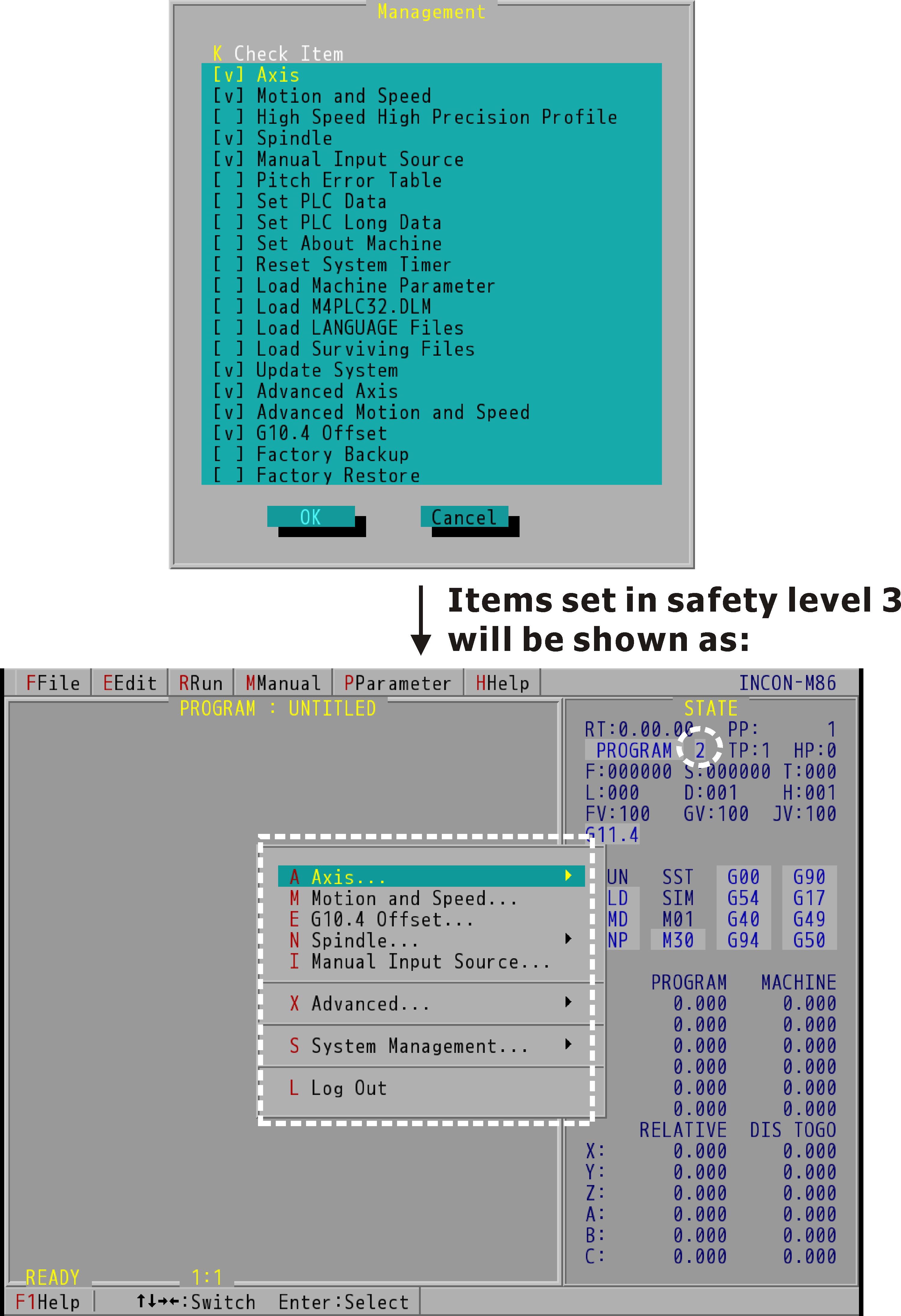

Safety Level 2 Machine Parameter Menu (Take INCON-M86 for Example)

Within safety level 2, within machine parameter menu "System Management→Password" you can make change to system level 2 password, after setting please press ENTER to save.

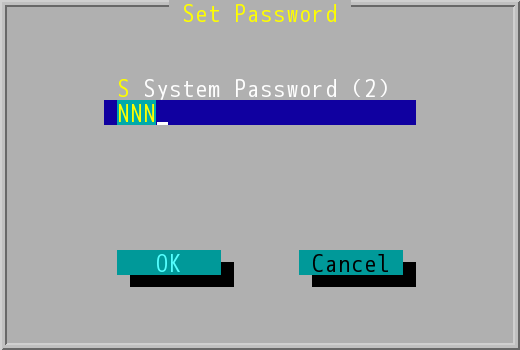

Safety Level 2 "Password" Dialog Box

Note:

After setting new password and press ENTER, the system will again show "Check Password" box, please re-enter the safety level 2 or safety level 3 password.
