3.2.5.5 Pocket/Dowel/Side Surfacing Machining Commands
All of the pocket/dowel/side surfacing machining commands can function with the combination of rotating or scaling commands. There are several common items in pocket/dowel/side surfacing machining commands which will be introduced below.

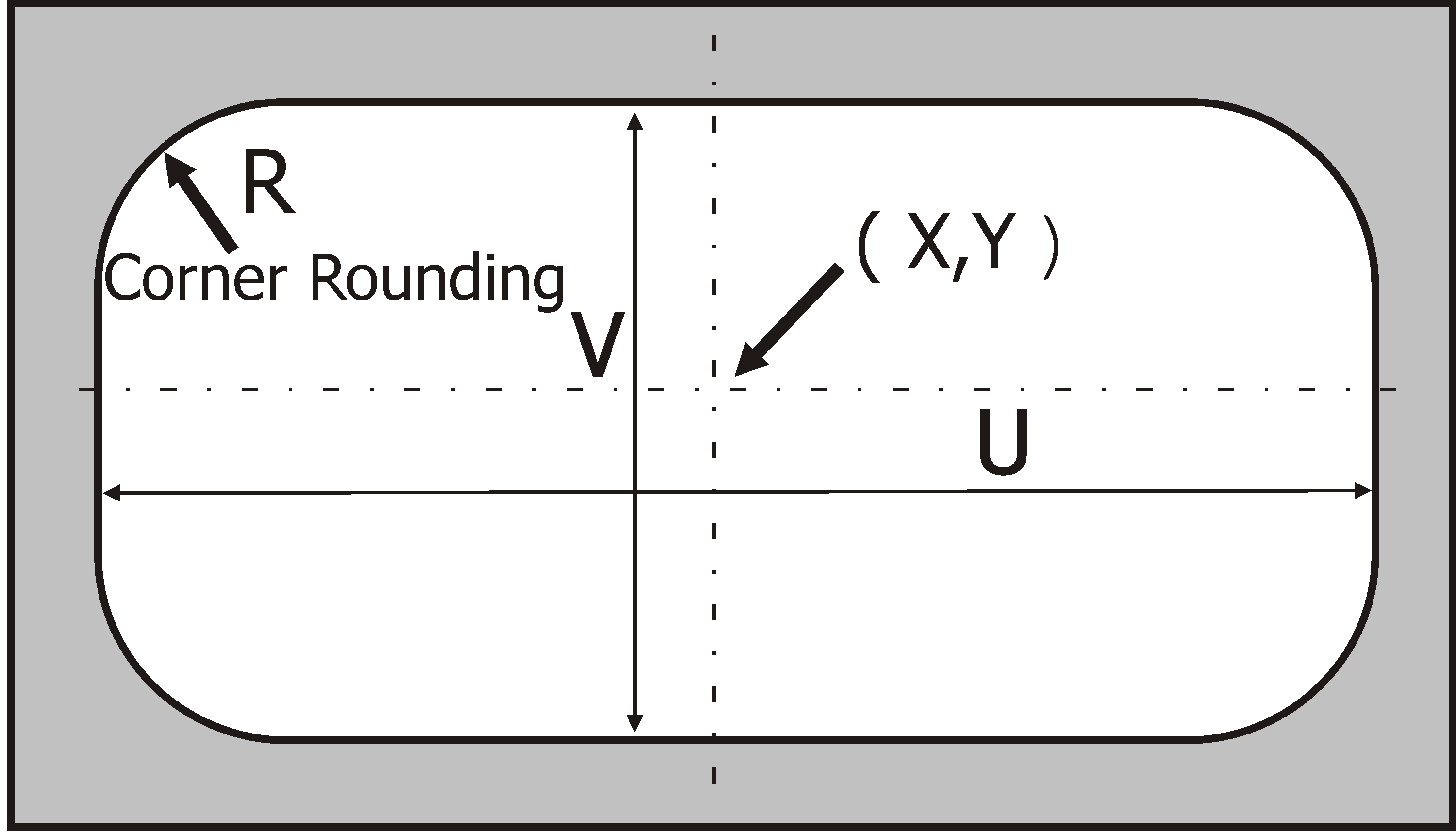

1. Radius (R)
Users can enter a radius value (R value) in the relevant data field of pocket/dowel/side surfacing machining commands and the corners of rectangular tool path will be rounded.
Rounded Corner

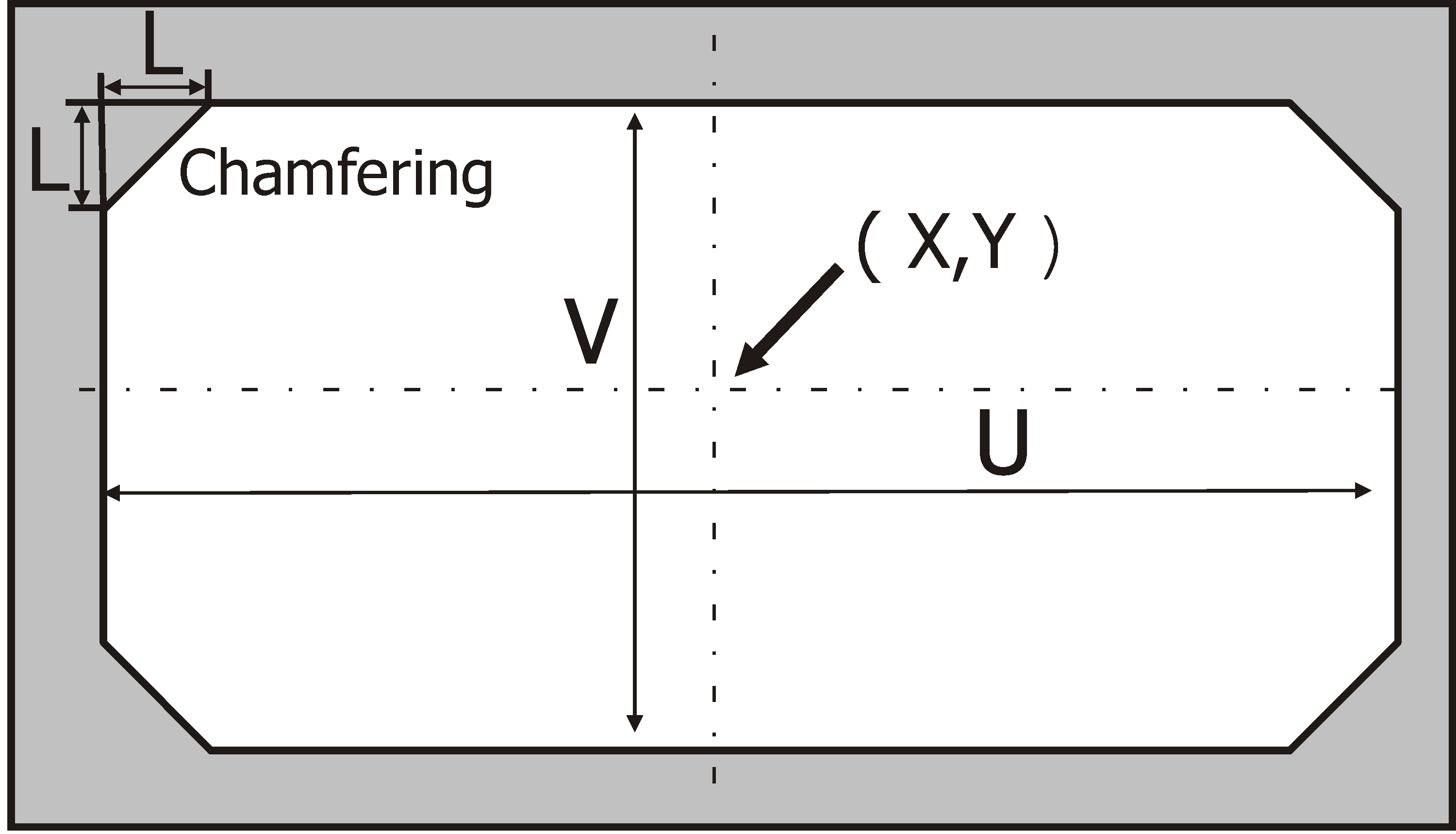

2. Chamfering (L)
Users can enter a value (L value) in the relevant data field of pocket/dowel/side surfacing machining commands and the corners of rectangular tool path will be chamfered.
Chamfered Corner

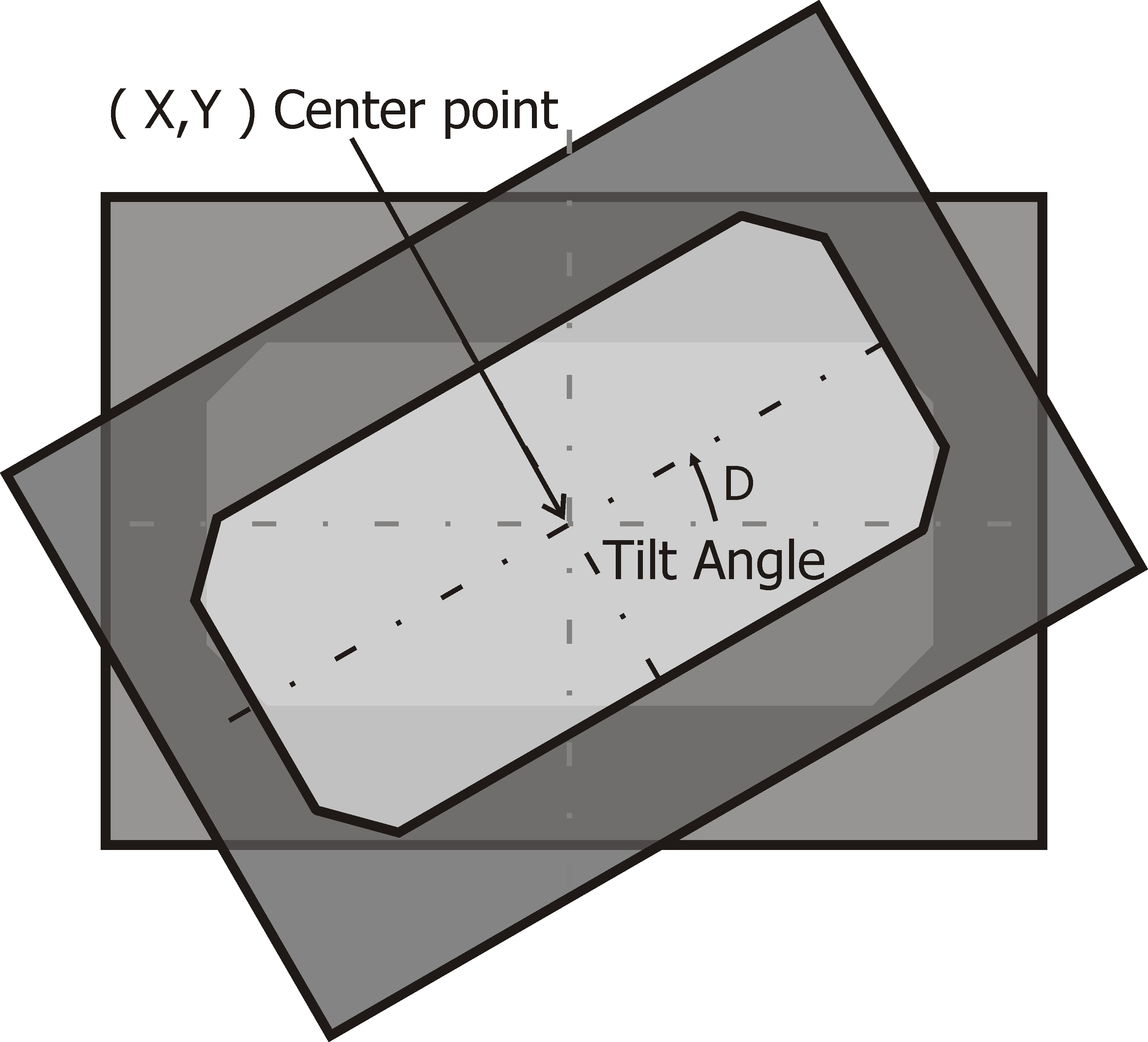

3. Tilt Angle (D)
Users can type in a tilt angle value (D value) in the relevant data field of pocket/dowel/side surfacing machining commands and the rectangular tool path will be tilted with the angle D.
Tilt Angle
