INCON-M84/M86/M86R Manual

3.5.11 Extra G54 Coordinate Offsets

When this item is selected, an "Extra G54 Coordinate Offsets" dialog box will appear, allowing you to set an extra G54 coordinate offset value of 128 groups. Users can directly enter "G54.1 Pxxx" when editing programs (Pxxx can be P001 to P128 ) Represents the coordinate offset value to be used.

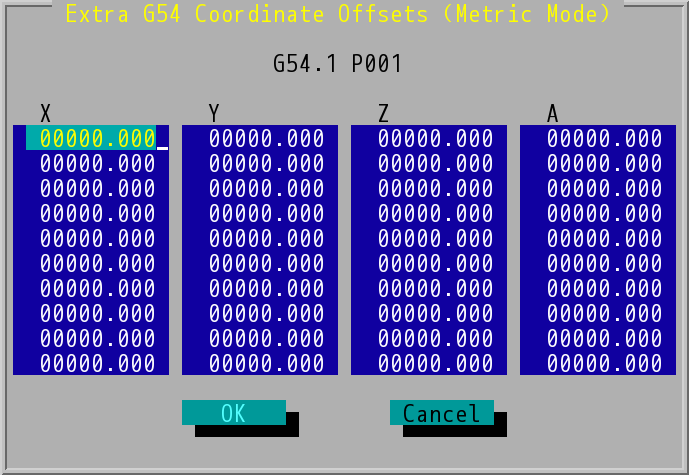

"Extra G54 Coordinate Offsets" Dialog Box (INCON-M84)

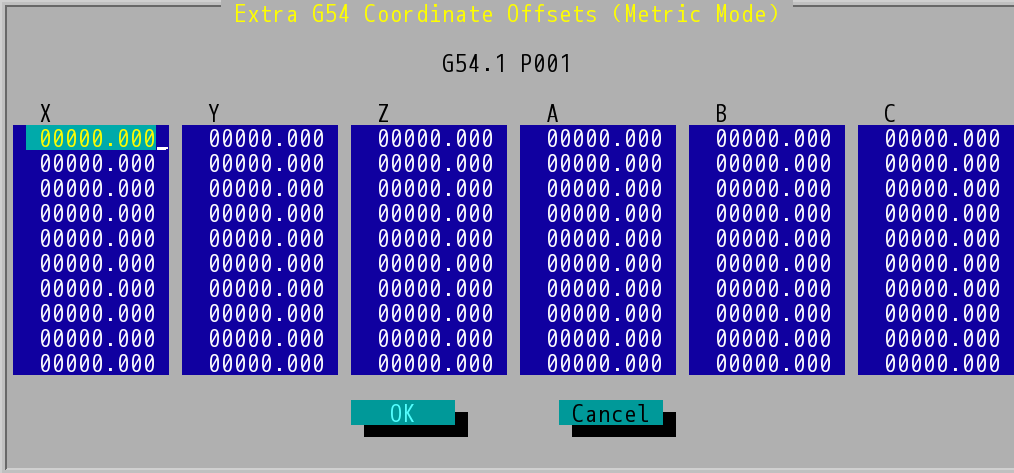

"Extra G54 Coordinate Offsets" Dialog Box (INCON-M86/M86R)
