3.5.10 Rotation Angle


This item is used to set the preset rotation angle of G68 coordinate rotation and it is either absolute value or incremental value.

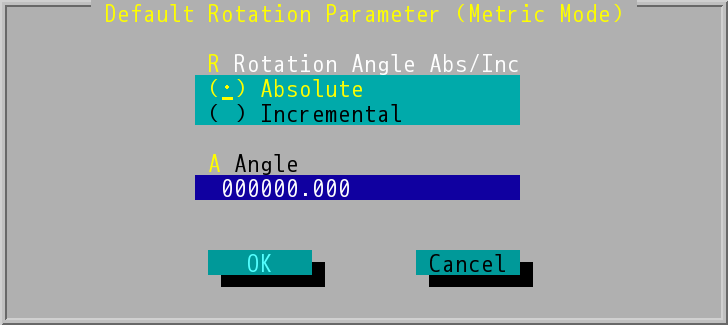

"Rotation Angle" Dialog Box


  • Rotation Angle Abs/Inc:

Defines the angle value in the instruction as absolute mode or incremental mode.

  • Angle:

This value is used if there is no rotation angle value in the command.


Note:

In the G68 command, the radius is absolute or incremental mode is determined by the G90/G91 state of the program. The absolute or incremental mode of the angle is determined by the absolute / absolute value of "F2→Parameter→Rotation Angle" "Rotation Angle Abs/Inc" decision. In addition, if the G68 is to be progressive, it must be in G91 mode and the dialog must be "Incremental".
