3.5.17.4 Management

In safety level 1, the "Management" dialog box (as shown in the figure below) is opened by "User Management→Management". Use SPACE to switch whether the item is selected and press ENTER to save the changes. The items checked here It will be displayed in "Parameter" menu of safety level 0, please refer to Safety Level for details.

Note:

The default selection of the controller is all selected, so when the safety level is 0 after the controller is turned on for the first time, all the items are visible from the menu of "F2→Parameter".

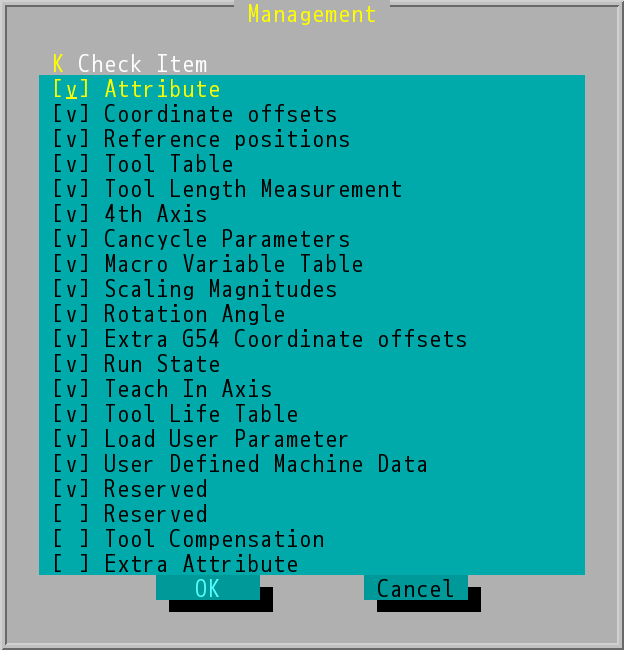

"Management" Dialog Box (Safety Level 1)
