2.2.4 Position State Window


The below of state window is the position state window and as shown.

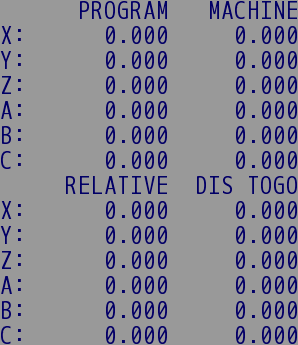

Position State Window (INCON-M84)


Position State Window (INCON-M86/M86R)


  • Program position

：

Accumulative position from program zero. Unit: feed unit.
  • Machine position

：

Accumulative position from machine zero. Unit: feed unit.
  • Distance to go

：

The remaining distance of current block. Unit: feed unit.
  • Relative position

：

Total distance after "Relative Position Reset".


Note 1:

The smallest digit within the system position as a feed unit (FU). The basic unit of distance is the feed unit, its value is equal to 0.001 mm (1 μm).

Note 2:

During the tool length correction, the Z value of the program position, shows the pre-compensated coordinate. If the X and Y values of the program position are displayed during the tool radius compensation, the coordinate value has been compensated.
