2.2.3 System State Window
The system state window is located at the bottom left of the state window and shows the current execution state of the program, as shown in the following figure. If the system is at a certain state, the corresponding item will be highlighted.

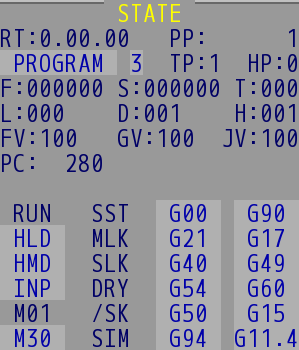

System State Window (INCON-M84)

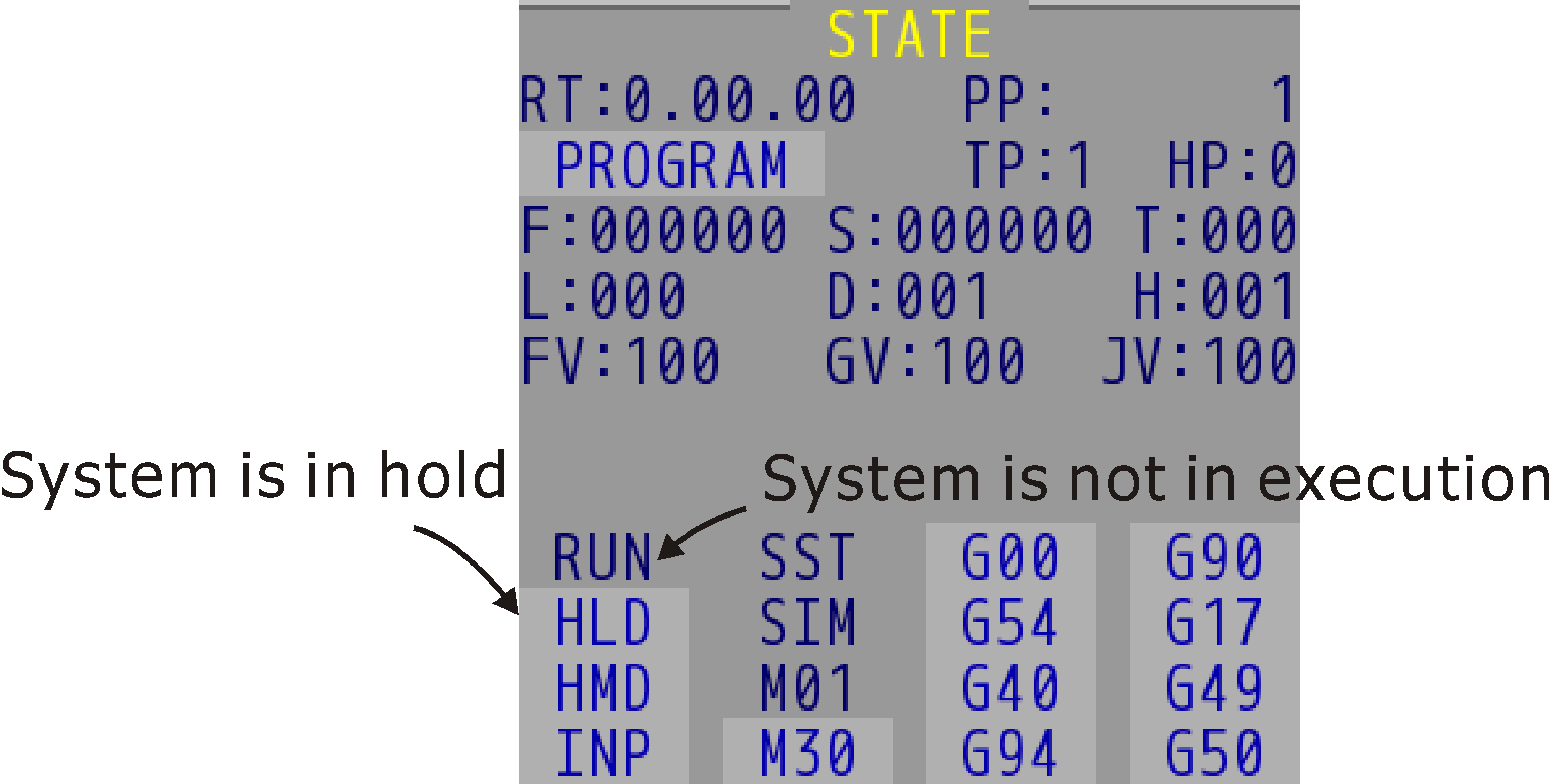

System State Window (INCON-M86)

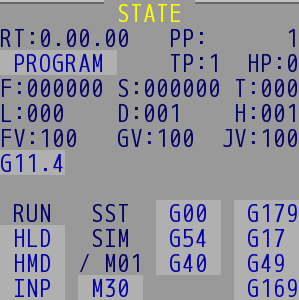

System State Window (INCON-M86R)
The significance of each display state is as follows:
RT |
: |
Amount of time the program has been executed |
PP |
: |
Currently line of executing program |
PROGRAM |
: |
The file source of current program: PROGRAM or DNC (In "Parameter → Run State" can be set) |
3 |
: |
Current authorization level (1/2/3) |
TP |
: |
Number of task |
HP |
: |
Number of HSHP table |
F |
: |
Feed rate |
S |
: |
Spindle speed |
T |
: |
Number of tool table |
L |
: |
The number of remaining loop cycles |
D |
: |
Number of tool radius compensation |
H |
: |
Number of tool length compensation |
FV |
: |
Feed rate override percentage |
GV |
: |
G00 override percentage |
JV |
: |
Jog override percentage |
PC |
: |
The number of completed workpieces |
PLC |
: |
PLC information |
RUN |
: |
The program is running |
HLD |
: |
The program hold |
HMD |
: |
Homed |
INP |
: |
Already in position |
M01 |
: |
Selective program suspended |
M30 |
: |
M30 program does not stop (program chain can be executed) |
SST |
: |
Single step block implementation |
MLK |
: |
machine lock |
SLK |
: |
Spindle axial lock |
DRY |
: |
Dry Run implementation |
/SK |
: |
Single block skip does not execute |
SIM |
: |
Simulation implementation |
G00 |
: |
G00/G01/G02/G03/G33 |
G21 |
: |
G20/G21 |
G40 |
: |
G40/G41/G42 |
G54 |
: |
G54~G59/G54.1 xxx |
G50 |
: |
G50/G51 |
G94 |
: |
G94/G95 |
G90 |
: |
G90/G91 |
G17 |
: |
G17/G18/G19 |
G49 |
: |
G49/G43 |
G60 |
: |
G60/G61 |
G15 |
: |
G15/G16 |
G11.4 |
: |
G11.4/G10.4 |
G179 |
: |
G178/G179 |
G169 |
: |
G168/G169/G158/L_ |
