3.2.5.1.2 Linear Interpolation (G01)

Format: G01 X_Y_Z_A_ (R_/L_)F_ (M84)

Format: G01 X_Y_Z_A_B_C_ (R_/L_)F_ (M86/M86R)

Note:

M86 only 4-axis of 6-axis can be perform on G01.

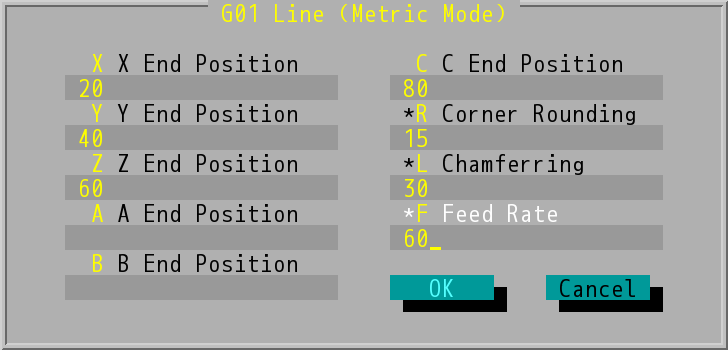

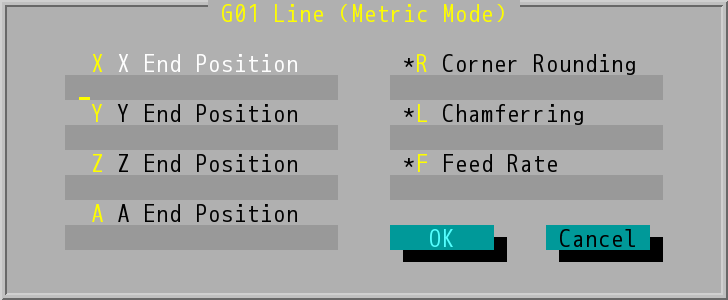

From the "Command Insertion Aid" menu, select "Linear Interpolation", there will be a dialog box (as shown in the figure).

"G01 Line (Metric Mode)" Dialog Box (M84)

"G01 Line (Metric Mode)" Dialog Box (M86/M86R)

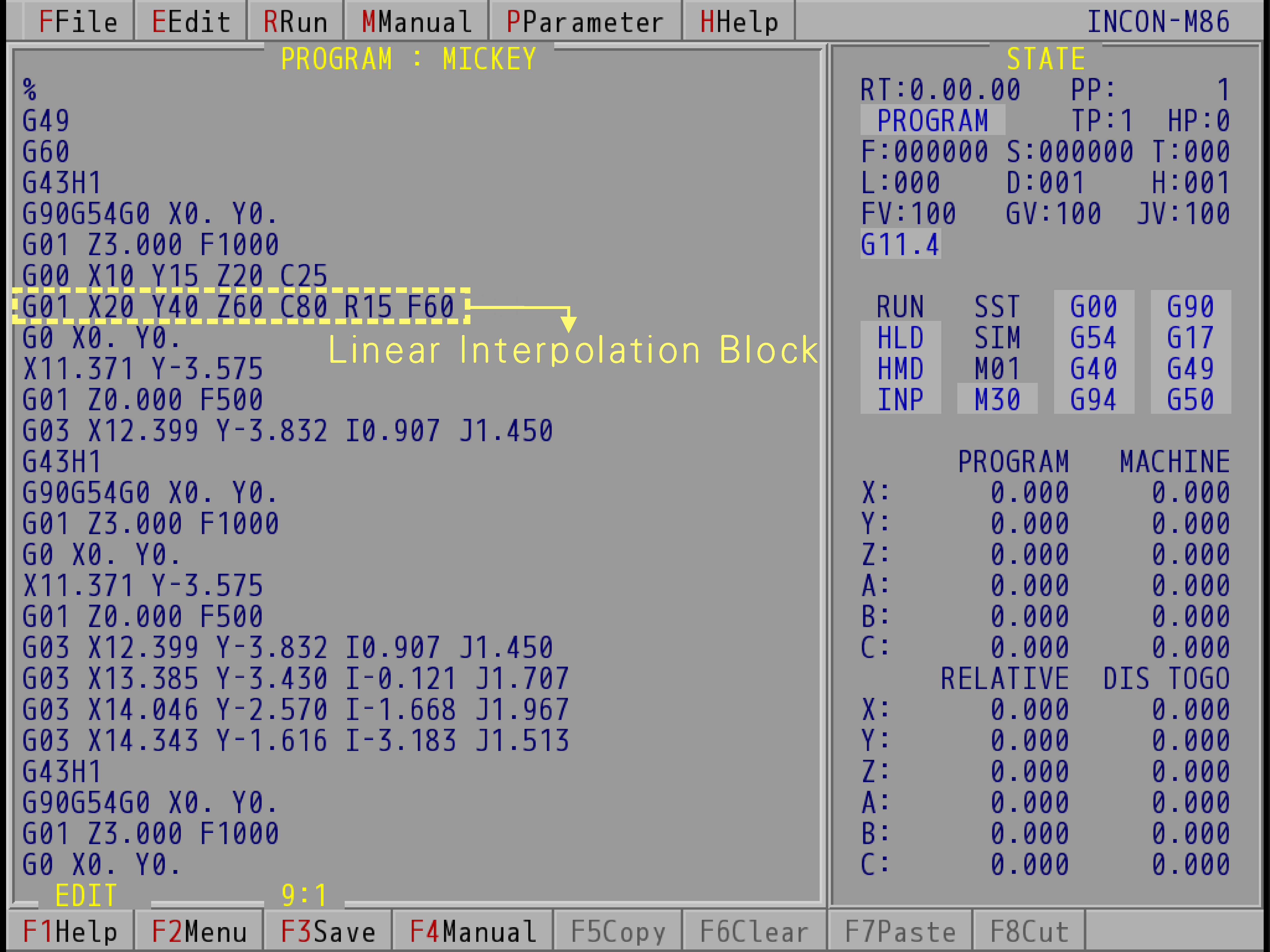

Key in values in each of the data field and press ENTER, there will be a corresponding block added in program window (as shown in the figure).

G01 Linear Interpolation Command Block (Take INCON-M86 for example)

X/Y/Z/A/B/C End Position: can be shown in absolute positions or incremental values, which depend on G90 or G91 mode.

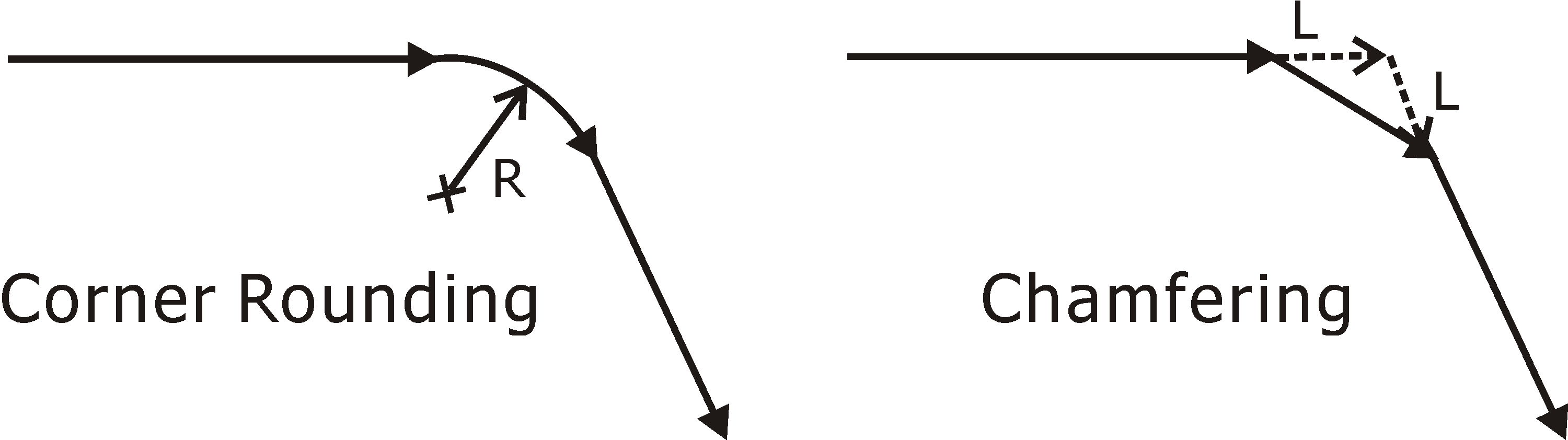

Corner Rounding (R value) and Chamfering (L value) commands are available only when the command block is inserted between two linear interpolation command blocks.

Corner rounding and chamfering

Feed Rate (F value): the velocity at which the cutter is fed, the system will adopt the value set last time if users do not make any changes.
