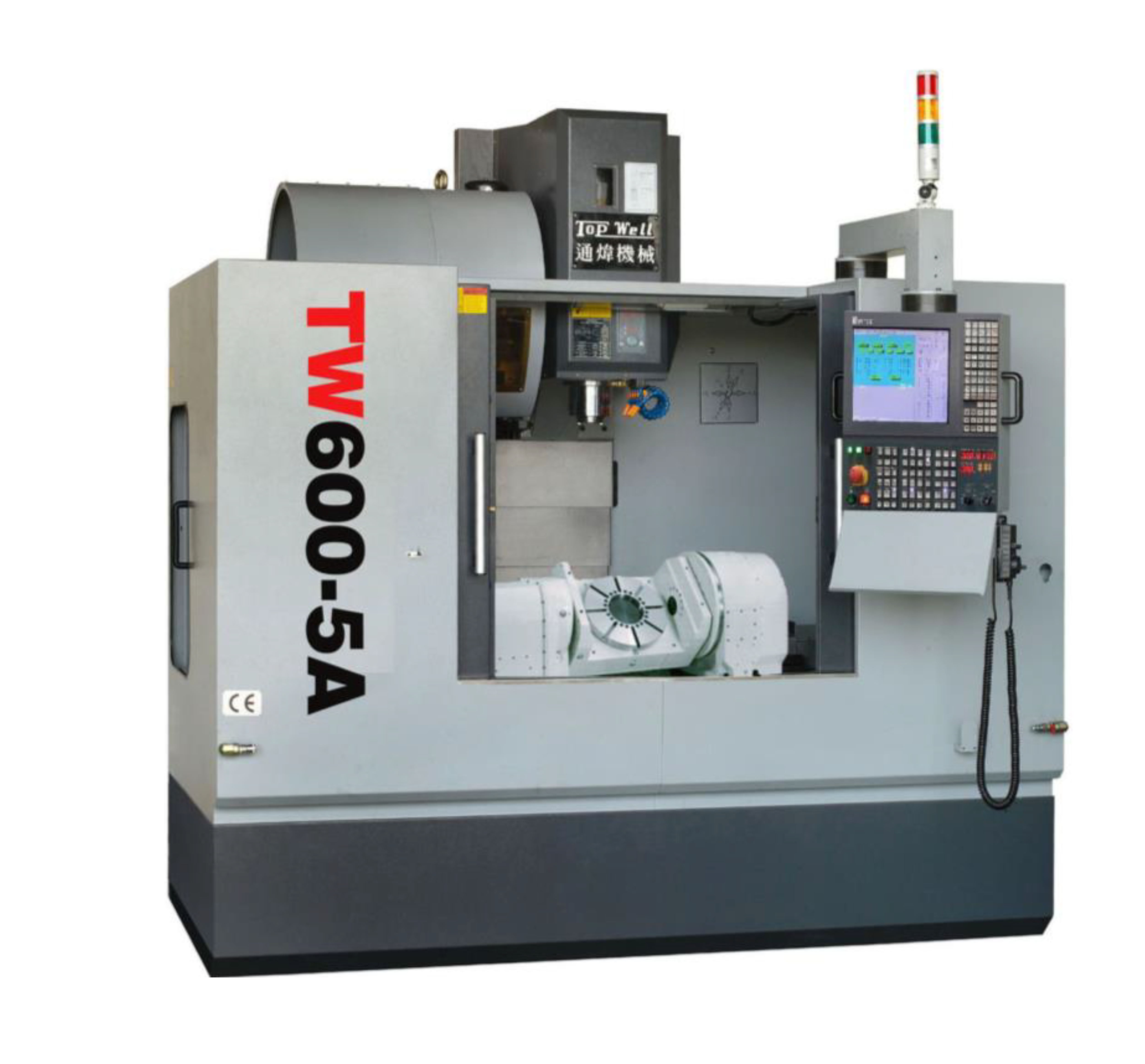

TW-600-5A

• Used INCON-M86R CNC controller has real-time Tool Rotation Center Control (RTCP) and Tilt working plane rotate offset (TWP) functions.
• EtherCAT (V mode) closed loop serial control technology.
• High Speed High Precision fine cutting facility.
• The controller provides a complete compensation mechanism, and network FTP server, USB file transfer and other functions.
• X/Y/Z Axis：600 x 460 x 490 mm.
• Rotary Table dimension：Φ100 mm.
• Spindle nose：BT40 / CAT40 / ISO40.
• Spindle (rpm)：10HP -12,000.
• Arm type A.T.C.：24 tools.
