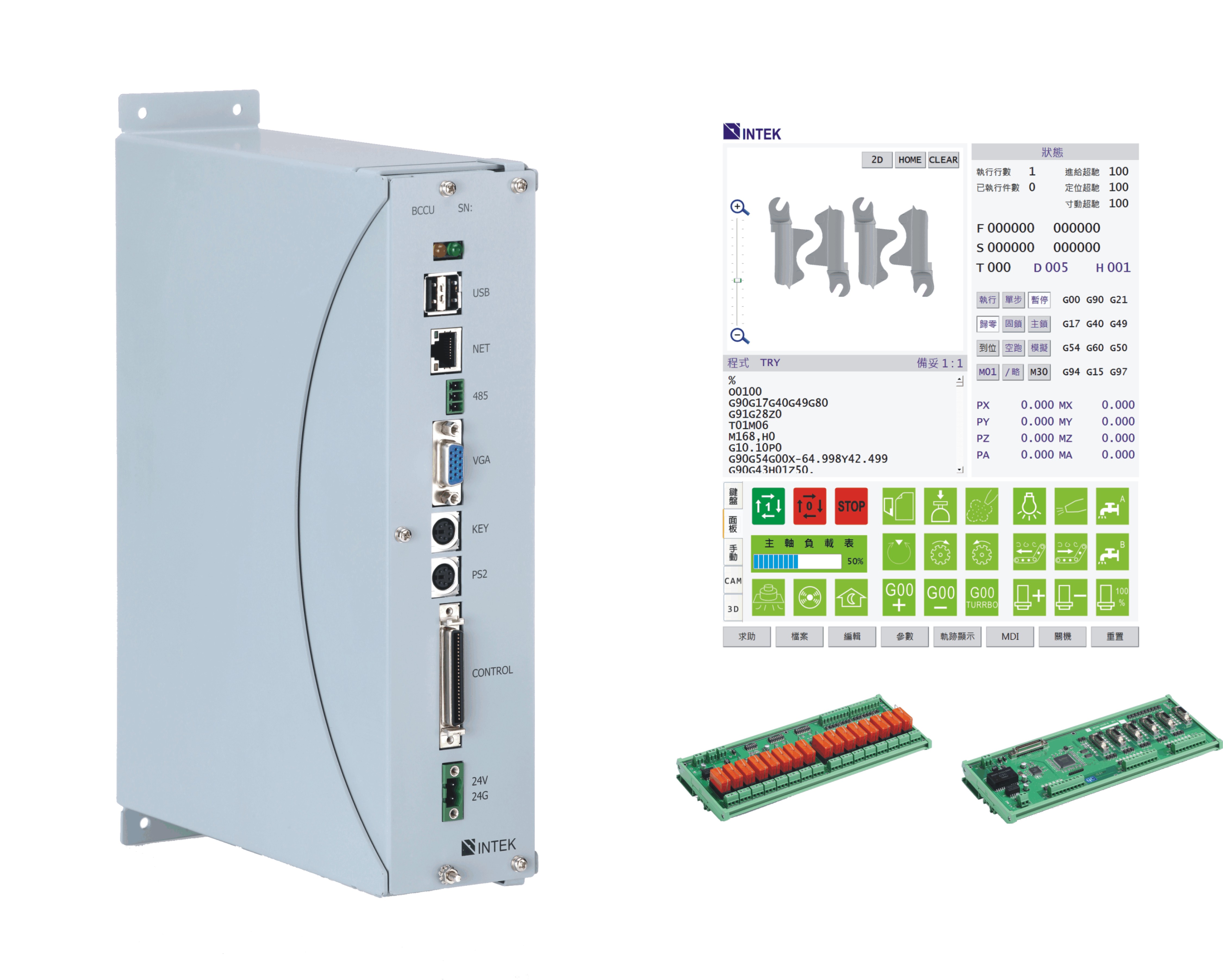

M470S Milling CNC Controller

M470S

  • M470S is an advanced, customized, value-added milling CNC controller which has four simultaneous axes, one spindle speed control, 25 sets of HSHP modes and closed-loop control.
  • M470S has the same functions as M470. It also serves as CNC server which constructs dual system structure by connecting with end-user computer.
  • Users can connect M470S with one or more computers by using a hub and develop remote detection function.
  • Typical application: wood router, grinding machine, CCD auto-positioning glass router, etc.
  • This product is controlled by Strategic High-Tech Commodities (SHTC) regulations, for further information, please contact Sales Department of Intek Technology.

Feature

  • High performance, customized, full-functional 4-axis milling CNC controller
  • Velocity command, incremental encoder feedback, closed-loop control
  • Open CNC server
  • Built-in high-speed PLC
  • Adoption of TCP/IP protocol
  • HSHP
  • MACRO
  • Built-in FTP server
  • USB function

M470S Optional Function

  • Least significant unit: 0.0001 mm (0.00001 inch)
  • Advanced HSHP
  • ABS encoder
