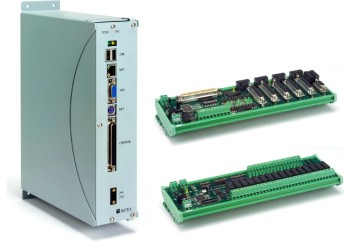

ME3 Milling CNC Controller

• ME3 is an economic milling CNC controller which is control.
• The axial control of ME3 adopts semi-closed loop control (pulse command), while spindle control uses velocity command for stability of speed.
• ME3 has built-in network function, and can be connected to PC for uploading or downloading CNC part programs.
• Optional USB function expands storage space and enhances the portability of program files.
• I/O points of PLC are 24 I/P and 16 O/P, and the points can be extended up to 104 I/P, 96 O/P.
• Typical application: small milling machine, small machine center, wood router, small engraving machine, small engraving center, horizontal milling machine, horizontal machine center, etc.
• This product is controlled by Strategic High-Tech Commodities (SHTC) regulations, for further information, please contact Sales Department of Intek Technology.

Feature Economical 3-axis milling CNC controller Position pulse command control Rigid tapping speed: up to 1500 rpm One set of HSHP Built-in FTP server Optional 4th axis and HSHP ME3 Optional Function USB MACRO Rigid tapping HSHP 4th axis Dual drive

Option 8.4" operational panel unit (INCON-GKYU-8-H-S) General I/O unit (IUNT-GEXU) General analog unit (IUNT-GEAU) Document Download Brochure User manual Integration manual PLC manual Fan Page
